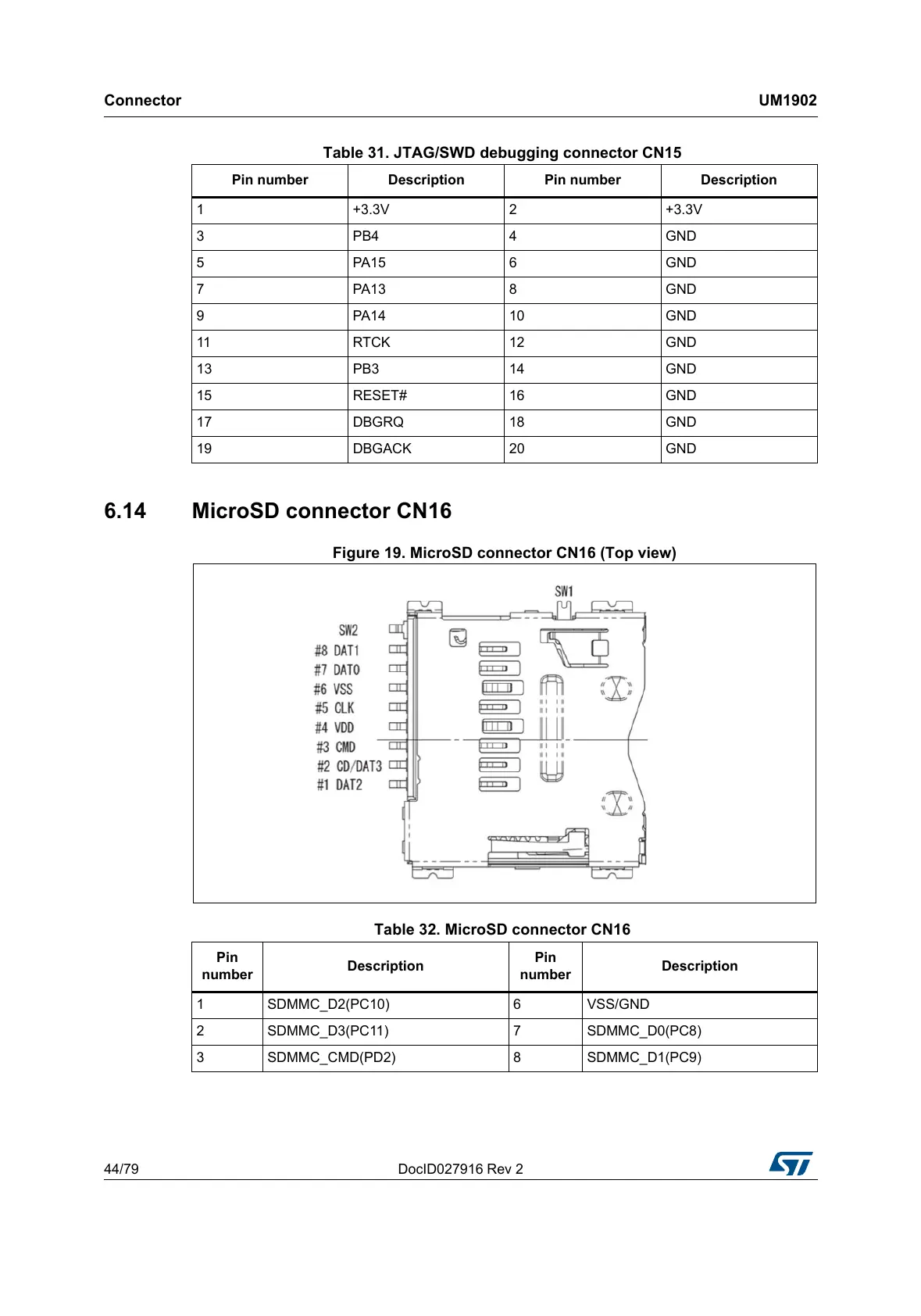

6.14 MicroSD connector CN16

Figure 19. MicroSD connector CN16 (Top view)

Table 31. JTAG/SWD debugging connector CN15

Pin number Description Pin number Description

1 +3.3V 2 +3.3V

3 PB4 4 GND

5PA156GND

7PA138GND

9PA1410GND

11 RTCK 12 GND

13 PB3 14 GND

15 RESET# 16 GND

17 DBGRQ 18 GND

19 DBGACK 20 GND

Table 32. MicroSD connector CN16

number

Description

number

Description

1 SDMMC_D2(PC10) 6 VSS/GND

2 SDMMC_D3(PC11) 7 SDMMC_D0(PC8)

3 SDMMC_CMD(PD2) 8 SDMMC_D1(PC9)
