STM32746G-EVAL I/O assignment UM1902
68/79 DocID027916 Rev 2

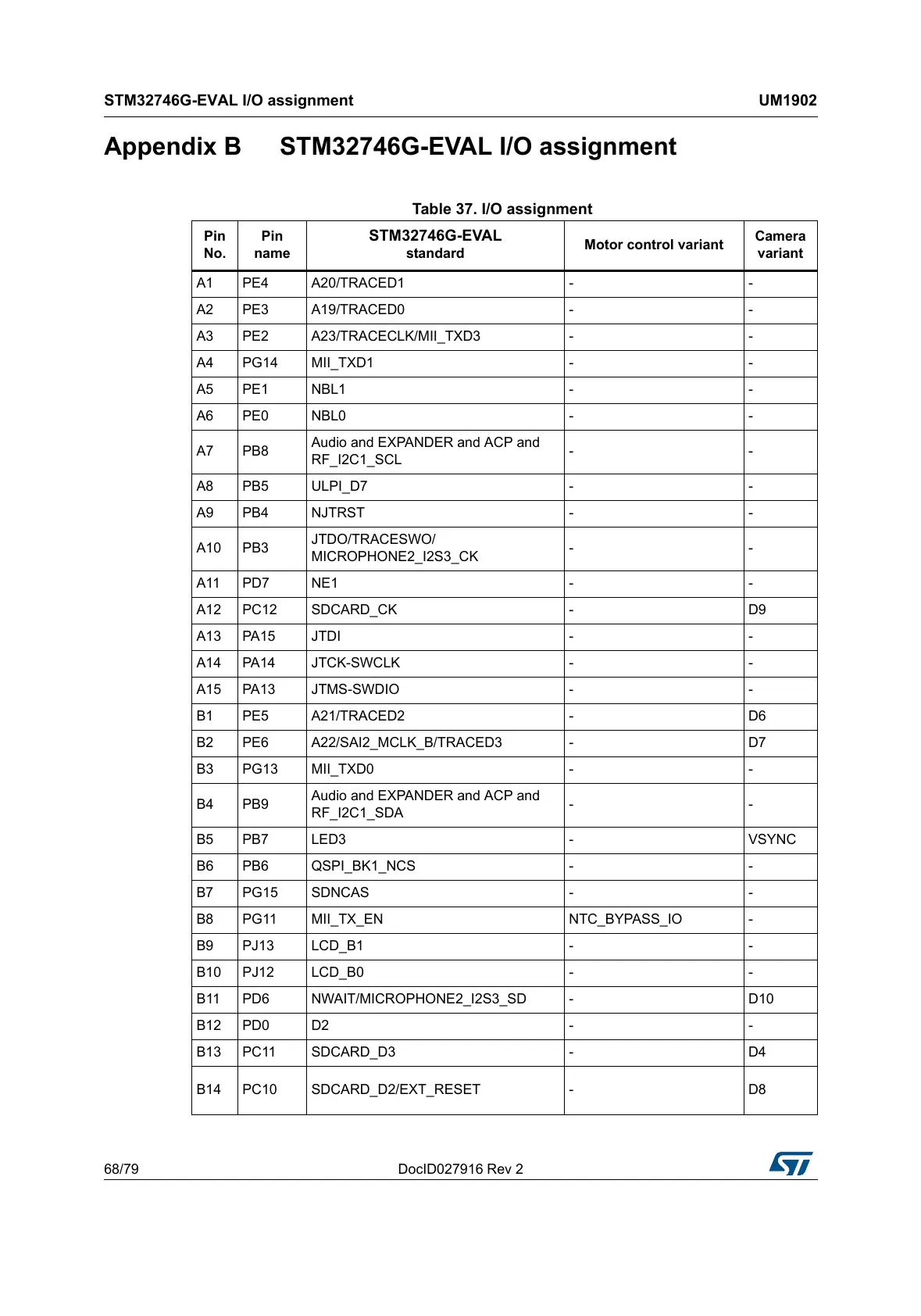

Appendix B STM32746G-EVAL I/O assignment
Table 37. I/O assignment
Pin
No.
Pin
name
STM32746G-EVAL
standard
Motor control variant
Camera
variant
A1 PE4 A20/TRACED1 - -
A2 PE3 A19/TRACED0 - -
A3 PE2 A23/TRACECLK/MII_TXD3 - -
A4 PG14 MII_TXD1 - -
A5 PE1 NBL1 - -
A6 PE0 NBL0 - -
A7 PB8
Audio and EXPANDER and ACP and
RF_I2C1_SCL
--
A8 PB5 ULPI_D7 - -
A9 PB4 NJTRST - -
A10 PB3
JTDO/TRACESWO/
MICROPHONE2_I2S3_CK
--
A11 PD7 NE1 - -
A12 PC12 SDCARD_CK - D9
A13 PA15 JTDI - -
A14 PA14 JTCK-SWCLK - -
A15 PA13 JTMS-SWDIO - -
B1 PE5 A21/TRACED2 - D6
B2 PE6 A22/SAI2_MCLK_B/TRACED3 - D7
B3 PG13 MII_TXD0 - -
B4 PB9
Audio and EXPANDER and ACP and
RF_I2C1_SDA
--
B5 PB7 LED3 - VSYNC
B6 PB6 QSPI_BK1_NCS - -
B7 PG15 SDNCAS - -
B8 PG11 MII_TX_EN NTC_BYPASS_IO -
B9 PJ13 LCD_B1 - -
B10 PJ12 LCD_B0 - -
B11 PD6 NWAIT/MICROPHONE2_I2S3_SD - D10
B12 PD0 D2 - -
B13 PC11 SDCARD_D3 - D4
B14 PC10 SDCARD_D2/EXT_RESET - D8
