Connector UM1902

48/79 DocID027916 Rev 2

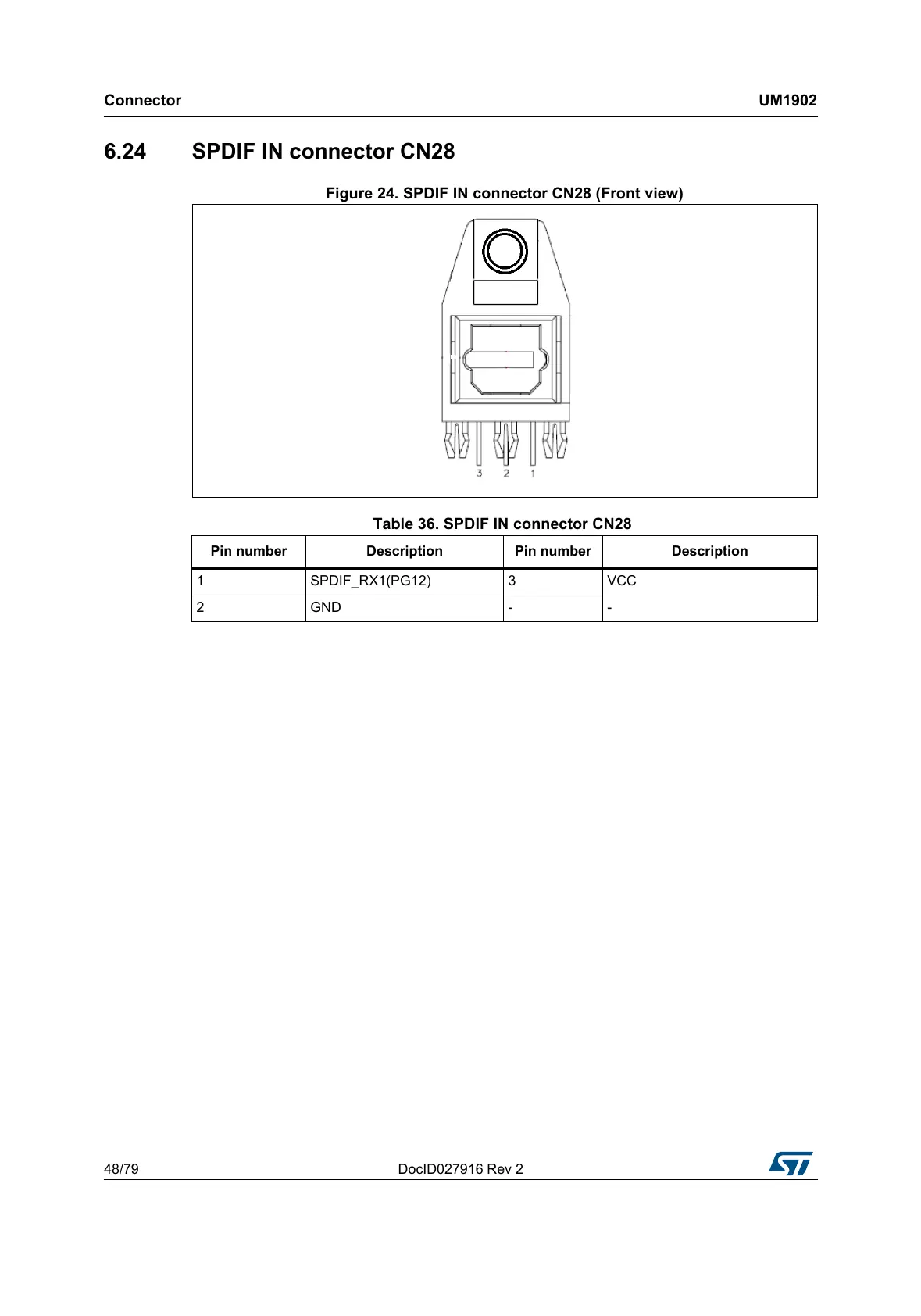

6.24 SPDIF IN connector CN28

Figure 24. SPDIF IN connector CN28 (Front view)

Table 36. SPDIF IN connector CN28

Pin number Description Pin number Description

1 SPDIF_RX1(PG12) 3 VCC

2GND --
