MDP Operation & Maintenance Manual | 17
LUBRICATION
Use premium grease, No. 2EP. Grease ttings are indicated on the attachment by yellow “GREASE” decals.
Grease each tting with .3 oz (8 g) of grease. This is about 6 shots of grease from an average grease gun.
LINKAGE
CONNECTION
STICK
CONNECTION

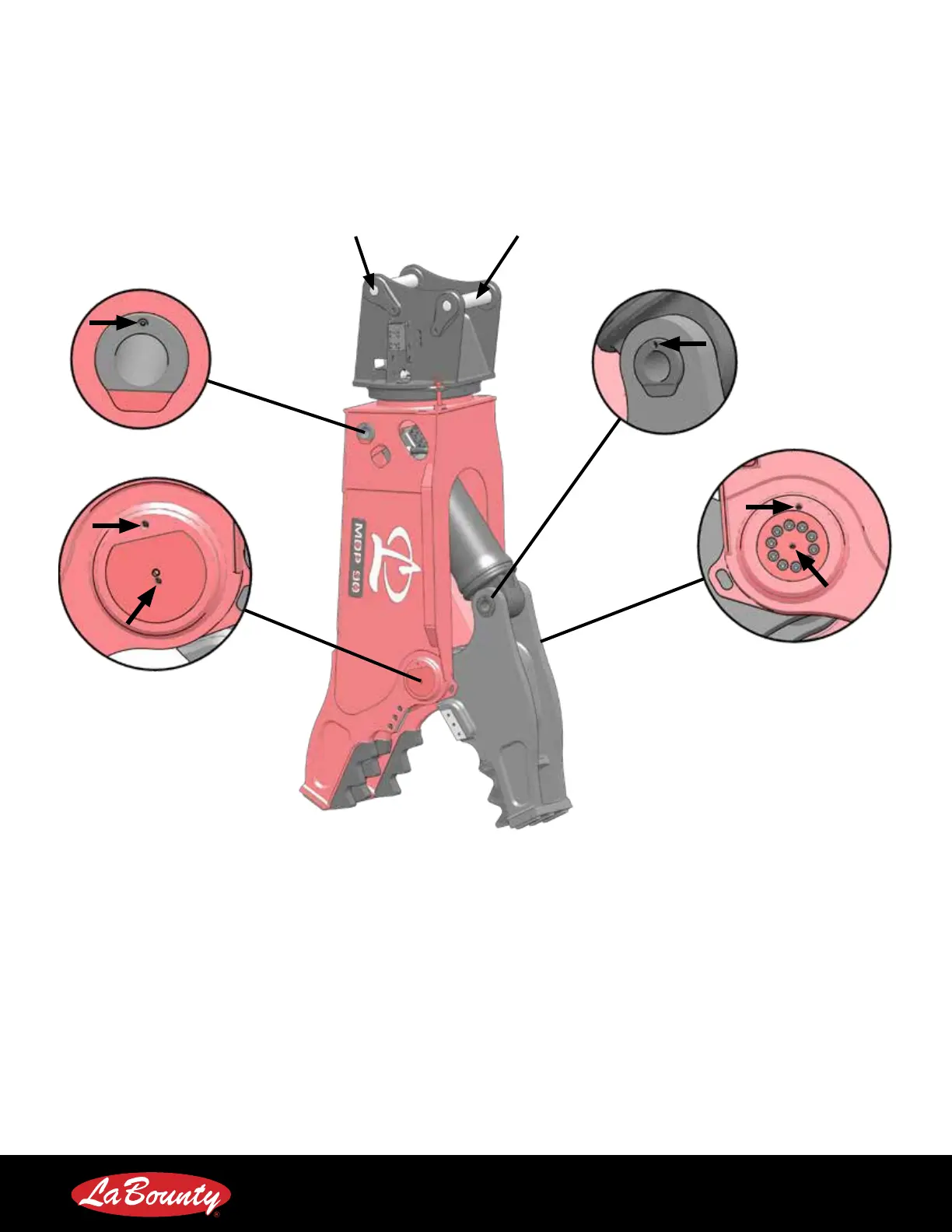

Lubrication Locations
FIGURE 18
