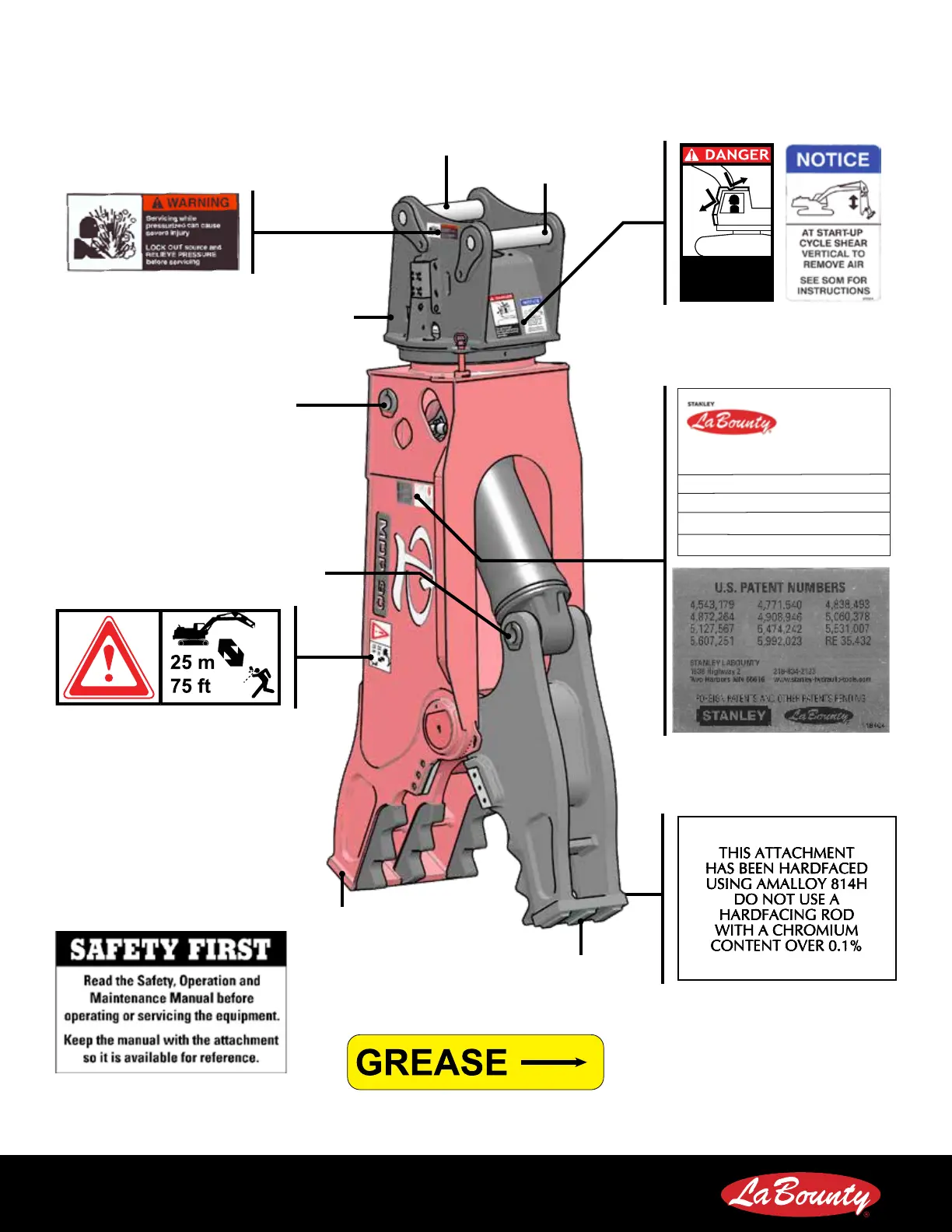

Stanley Labounty MDP Series - Decals and Terms Identification; Key Decal Descriptions and Locations; Attachment Identification and Material Information

6 | MDP Operation & Maintenance Manual
1538 Highway 2
Two Harbors, MN 55616
tel: 1-800-522-5059
fax: 218-834-3879
www.stanleyhydraulics.com
Made in the U.S.A. with Global Materials
Attachment Model:
Serial Number:
Year of Manufacture:
Weight:
Safety rst decal
P/N 503590
(Included with manuals)
FIGURE 3
Grease Decal (At each tting)
P/N 116388
FIGURE 4
UPPER JAW
MAIN BODY
STICK CONNECTION
LINKAGE CONNECTION
FRONT CYLINDER PIN
REAR CYLINDER PIN
ROTATING HEAD
Pressure Relief
Warning decal
P/N 512572
FIGURE 1
Top and front cab
guarding required during
any material processing
application
Cab Guard & Cylinder Bleed
Decal
P/N 503647 & 512554
FIGURE 5
Serial Number & Patent
Plate
P/N 511045 & 116404
FIGURE 6
Safe Distance Decal
P/N 514446
FIGURE 2
Hard Surface Decal
P/N 513886
FIGURE 7
DECALS & TERMS
