Stanley MC521 Pro - Operator and System Wiring

MC521 PRO Control Box
8 Document # 204090 REV D • www.stanleyaccess.com • 1.800.7.ACCESS
Copyright 2017, Stanley Access Technologies, LLC. All rights reserved. Reproduction
in whole or in part without the express written permission of Stanley is prohibited.
03.23.2017
Wiring the Operator for Required Handing (Magic-Force Operators)
Note: Operator cams are factory-set for right hand operaon.
• Refer to Figure 4, and DETERMINE door handing.
• CONNECT encoder cable adapter 415001 from encoder to control box encoder 1 and encoder 2 connectors,
if applicable.
• CONNECT operator harness from close speed module to control box motor 1 and motor 2 connectorsm,
if applicable
Wiring the “ON/OFF/HOLD OPEN” Switch and Power Switch
• Refer to Aachments 2, 3, or 4 and CONNECT “ON/OFF/HOLD OPEN” switch wiring as follows:
TB2 Terminal Connection Switch Wire Color
1 Hold Open Yellow
2 Common Orange
3 Automac On Violet
• SET “POWER” switch to “OFF.”
• CONNECT “POWER” switch harness 516857-1 to power harness 415000.
• CONNECT line connect harness 412544 to power harness 415000.
Wiring the Door Activation or Safety Device
Note: Aachments 2, 3, 4 and 5 illustrate typical wiring for various devices. Though the specic device may not be
shown, this aachment can be used as a general guide. Specic wiring instrucons from the manufacturer must
also be consulted.
• Refer to Aachment 2, 3, 4, 5, and applicable manufacturer’s instrucons, and CONNECT door acvaon
or safety device.

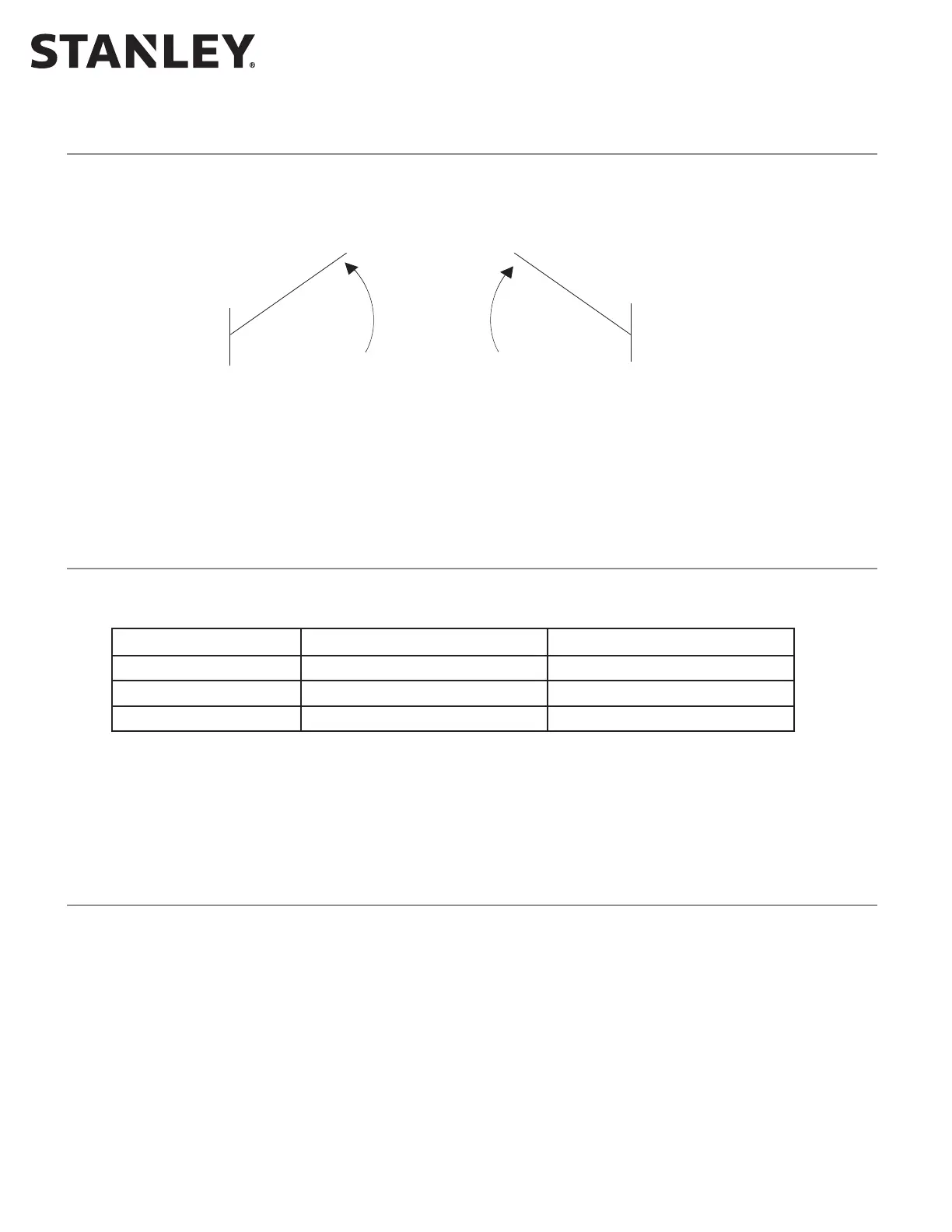

LEFT HAND
DOOR
OPENING
MOTION
RIGHT HAND
Figure 4. Door Handing
