3-2-3. RS-232C Cable
To connect an RS-232C cable, follow the procedure given below.
1) Make sure that the AC adapter’s power cord is not connected to the outlet.
2) Connect the RS-232C cable to the connector on the RS-232C interface board, and tighten the left and right screws.
3-2-2. Parallel Cable
To connect a parallel cable, follow the procedure given below.
1) Make sure that the AC adapter’s power cord is not connected to the outlet.
2) Connect the parallel cable to the connector on the parallel interface board, and fasten the connector clasps.

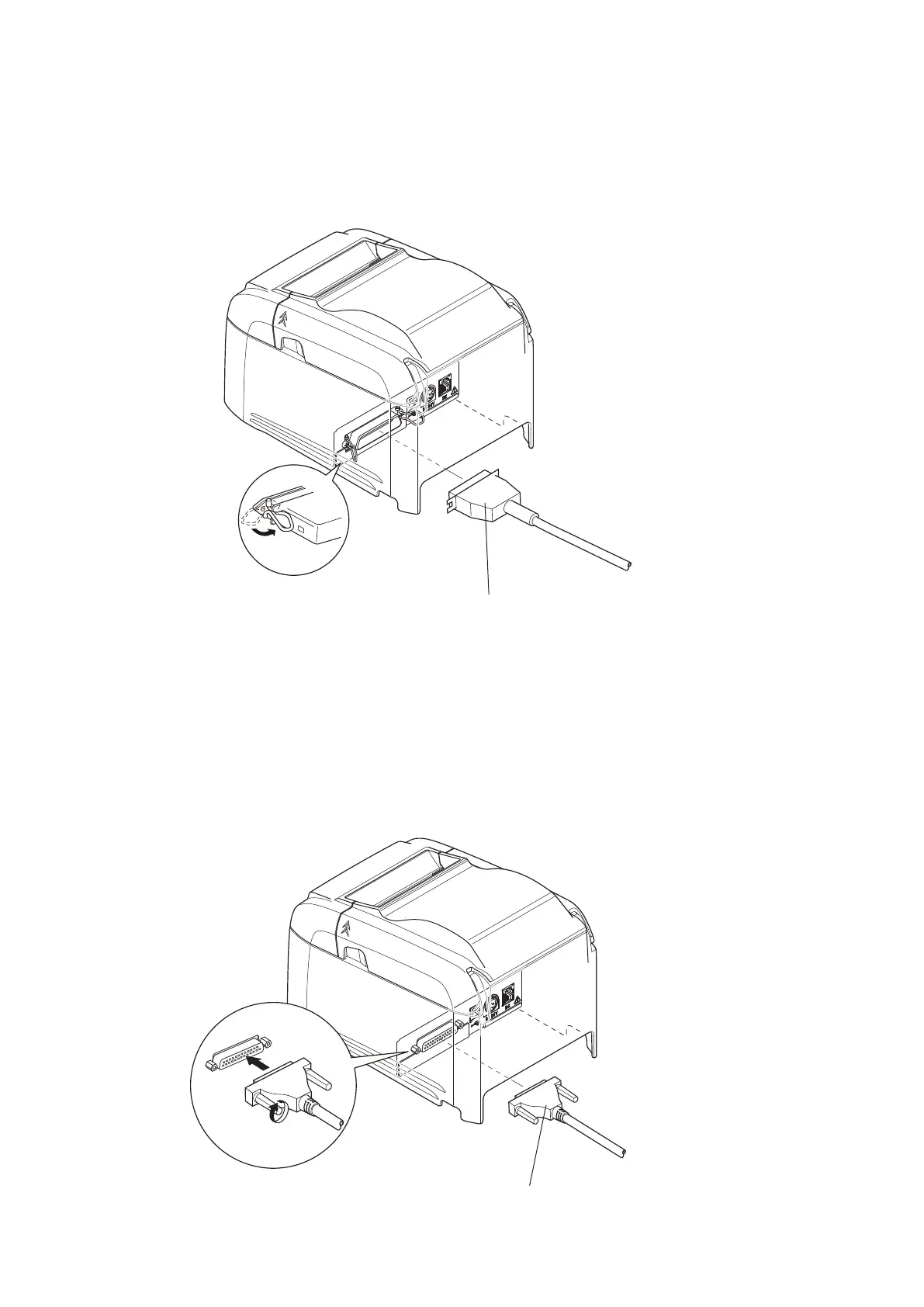

RS-232C cable
Parallel cable
