46 D28065504A - 02/2007

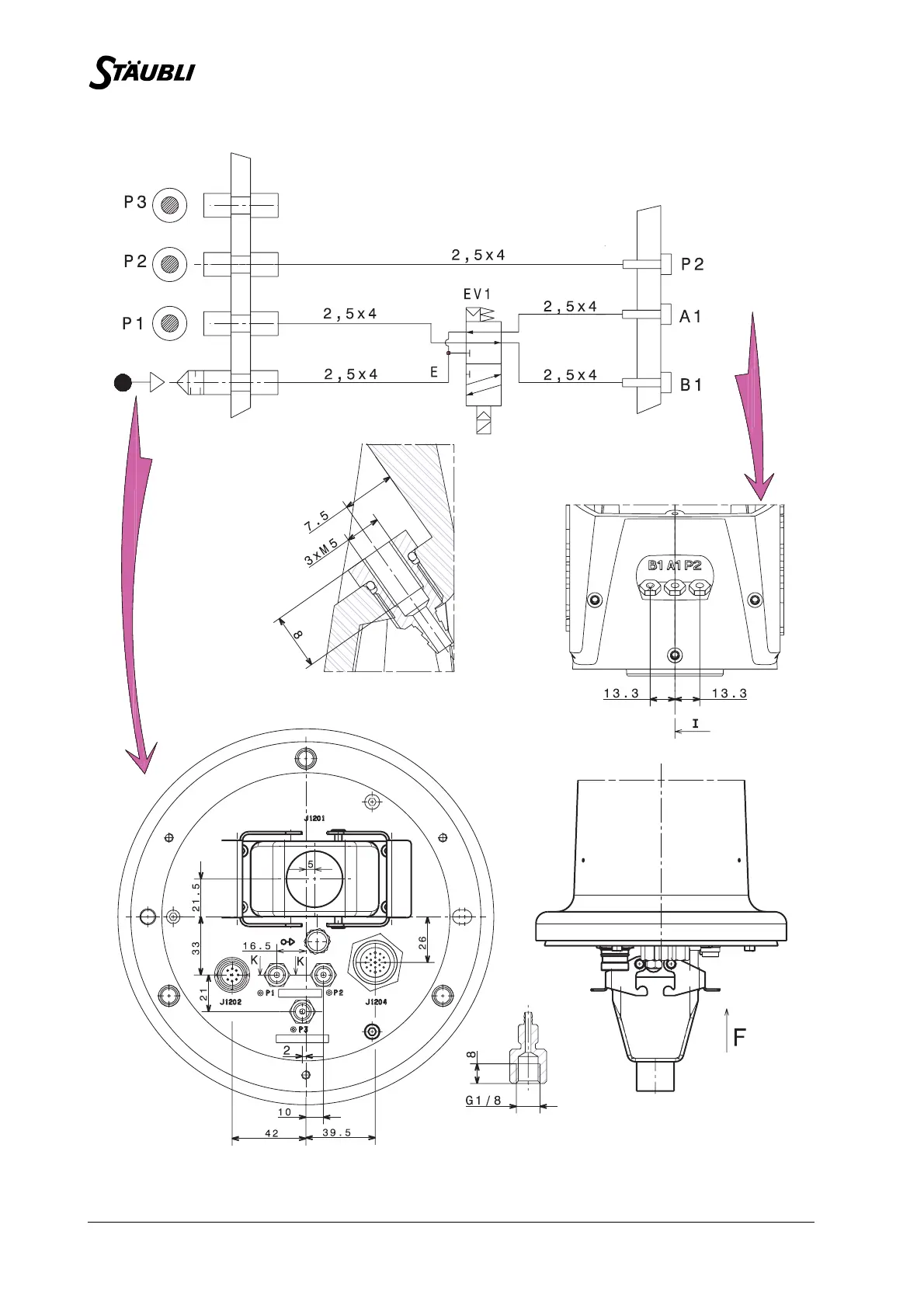

Figure 2.14
Arm - Vertical cable outlet
0.6 MPa / 87 PSI
0.002 MPa / 0.29 PSI
Sectional view I - I
Sectional view K - K
VIEW F
