Steca StecaGrid 2010+ Slave User Manual

52
734.843 | 10.48
EN
Installation instructions(Short version)
Commissioning
A D
B
C

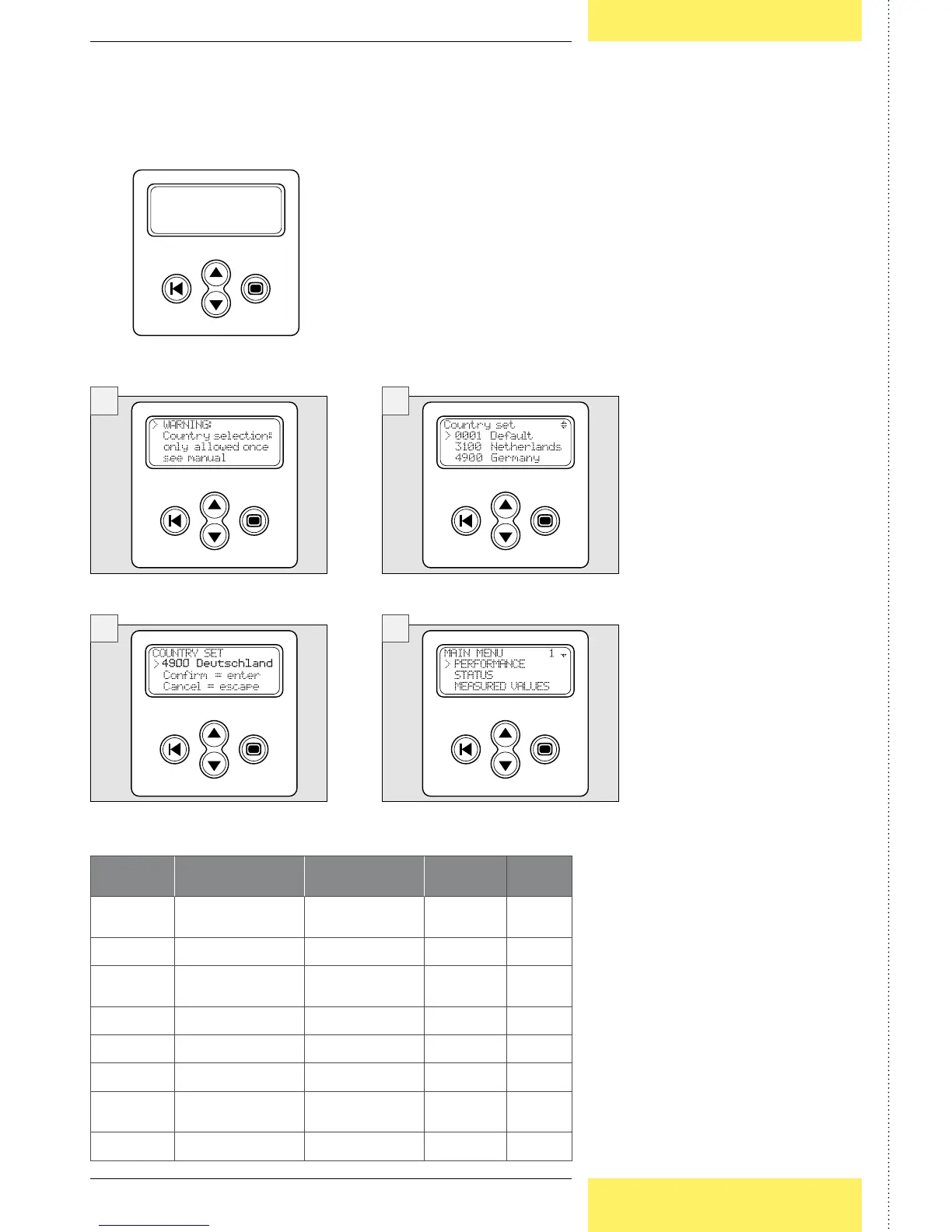

Navigating the display
Button (A) Escape
Buttons (B) and (C) Arrow buttons Up and Down:
Button (D) Enter



Table of countries
The following table shows the values determined by the countries.
Grid voltage
(Disconnection value)
Grid frequency
(Disconnection value)
System imped-
ance
monitoring
Reconnec-
tion-time
Default -10 % / + 6 % of the
rated voltage (0,1 s)
+/- 0,2 Hz of the
rated frequency (0,2 s)
Yes, in accord-
ance with
VDE 0126-1-1*
180 s
3100
Netherlands
-10 % / +10 % of the
rated voltage (0,1 s)
+/- 2 Hz of the
rated frequency (2 s)
Not applicable 20 s
3200
Belgium
-20 % / +6 % of the
rated voltage (0,2 s)
+/- 0,2 Hz of the
rated frequency (0,2 s)
Yes, in accord-
ance with
VDE 0126-1-1*
30 s
3300
France
-20 % / +15 % of the
rated voltage (0,2 s)
- 2,5 / + 0,2 Hz of the
rated frequency (0,2 s)
Not applicable 30 s
3400
Spain
-15 % / +10 % of the
rated voltage (0,2 s)
+/- 1 Hz of the
rated frequency (0,2 s)
Not applicable 180 s
4400
Great Britain
-10 % / +15 % of the
rated voltage (1,5 s)
+/- 1 Hz of the
rated frequency (0,5 s)
Not applicable 180 s
4900
Germany
-20 % / +15 % of the
rated voltage (0,2 s)
- 2,5 / + 0,2 Hz of the
rated frequency (0,2 s)
Yes, in accord-
ance with
VDE 0126-1-1*
30 s
4901
Germany
-20 % / +15 % of the
rated voltage (0,2 s)
- 2,5 / + 0,2 Hz of the
rated frequency (0,2 s)
Not applicable 30 s
3
1 2
4
