CMC-QC Editor
CMC Series Operation Manual 31

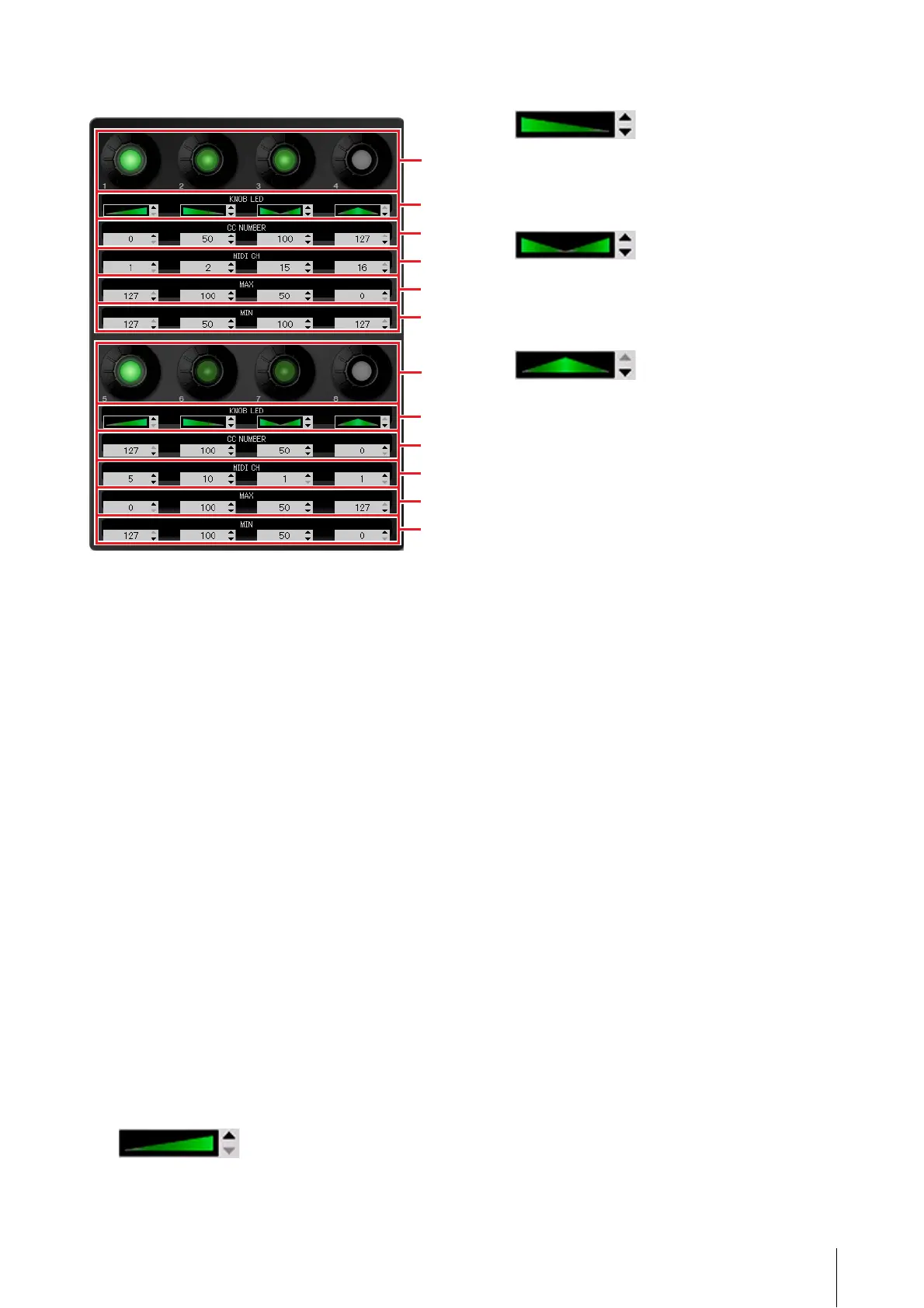

Fig. 8
1 Knob
This is for display purposes only. LED brightness varies
according to the current setting value of the control
change.
2 – 6 Edit Box
This allows you to confirm/edit the settings of the control
change parameter assigned to the knob.
A parameter is always assigned to all knobs. Use any of
the following to edit each parameter after clicking the
edit box.
• Mouse wheel
• Computer keyboard cursor key
• Direct Input (except the editing of “Knob LED lighting
type”)
• U/D click
For details about the parameters assigned to the edit
box, see below.
2 [KNOB LED] (Knob LED)
Selects the LED lighting type for the knob. Four types are
available.
The setting-based brightness varies depending on the
type.
Type 1
The smaller/ larger the setting value is, the darker/
brighter the LED brightness is.
Type 2
The smaller/ larger the setting value is, the brighter/
darker the LED brightness is.
Type 3
The closer to or further from the center the setting
value is, the darker/brighter the LED brightness is.
Type 4
The closer to or further from the center the setting
value is, the brighter/darker the LED brightness is.
3 [CC NUMBER] (Control Change Number)
Displays/ edits the currently assigned MIDI Control
Change number. Range is from 0 to 127.
4 [MIDI CH] (MIDI channel number)
Displays/ edits the currently specified MIDI channel.
Range is from 1 to 16.
56 [MAX]/[MIN] (Maximum/ Minimum)
Displays/edits the maximum/minimum values of Control
Change assigned to 3. Range is from 0 to 127.
Specifying the maximum/minimum values to both sides
5 and 6 can be done. The knob behaviors are given
below.
• When the value is 5 > 6: The output value
decreases/ increases by turning the knob to the
left/right.
• When the value is
5 < 6: The output value
increases/ decreases by turning the knob to the
left/right.
• If inputting the same value to
5 and 6, the
output value stays constant.
