Heavy-Duty Telescopic Crane Owner’s Manual | Page 9
Radio Remote Control Features
Radio Remote Sleep Mode
The radio remote control enters sleep mode after about 15 seconds of inactivity. Activate
a toggle switch to re-link the transmitter to the receiver. After re-linking, activate the
desired toggle to continue operation.
E-Stop Button
The Radio remote control is equipped with an emergency stop button. If a situation
arises that requires the immediate stoppage of crane functionality, press down on the red
Emergency Stop button located in the center of the remote control.
The E-stop button is not intended to be an on/off switch. This is also the
rst item to check if the crane is not responding to toggle and trigger activation. Make
sure the red E-Stop button is in the up or disengaged position.

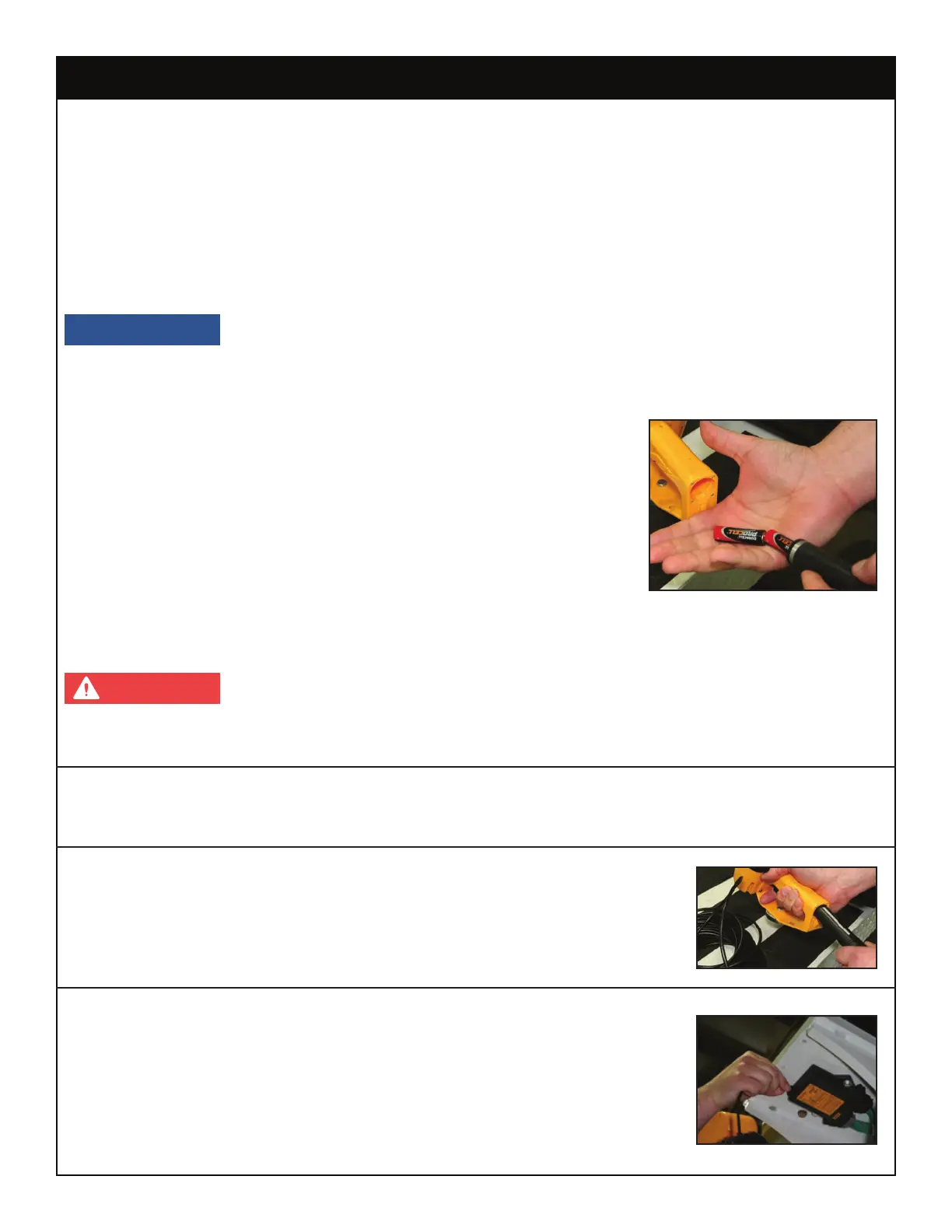

Radio Remote Battery Replacement
Occasionally the batteries in the handheld transmitter will need
to be changed. The AA Alkaline batteries are located in the
handle portion of the radio transmitter. Release the button and
slide the battery holder out. Replace the batteries and return
the holder back into the handheld transmitter until the button
latches.
Radio Remote Backup Cord
If the handheld transmitter has a system problem that makes the radio function un-usable,
use of the back-up cord may be necessary.
Death or serious injury will result from touching tethered remote if the
crane, load, or vehicle becomes electrically charged. Always maintain safe clearance
from high voltage power sources.
1. Locate the backup control cord. Most likely it is in the crane compartment, or in the cab
behind the seat.
2. Remove the battery holder from the remote handle and place
the similar looking end of the back-up cord in the bottom of the
transmitter handle.
3. Attach the other end of the back-up cord to the connector
currently used by the antenna on the control receiver. The control
receiver is located on the back of the crane mast.
