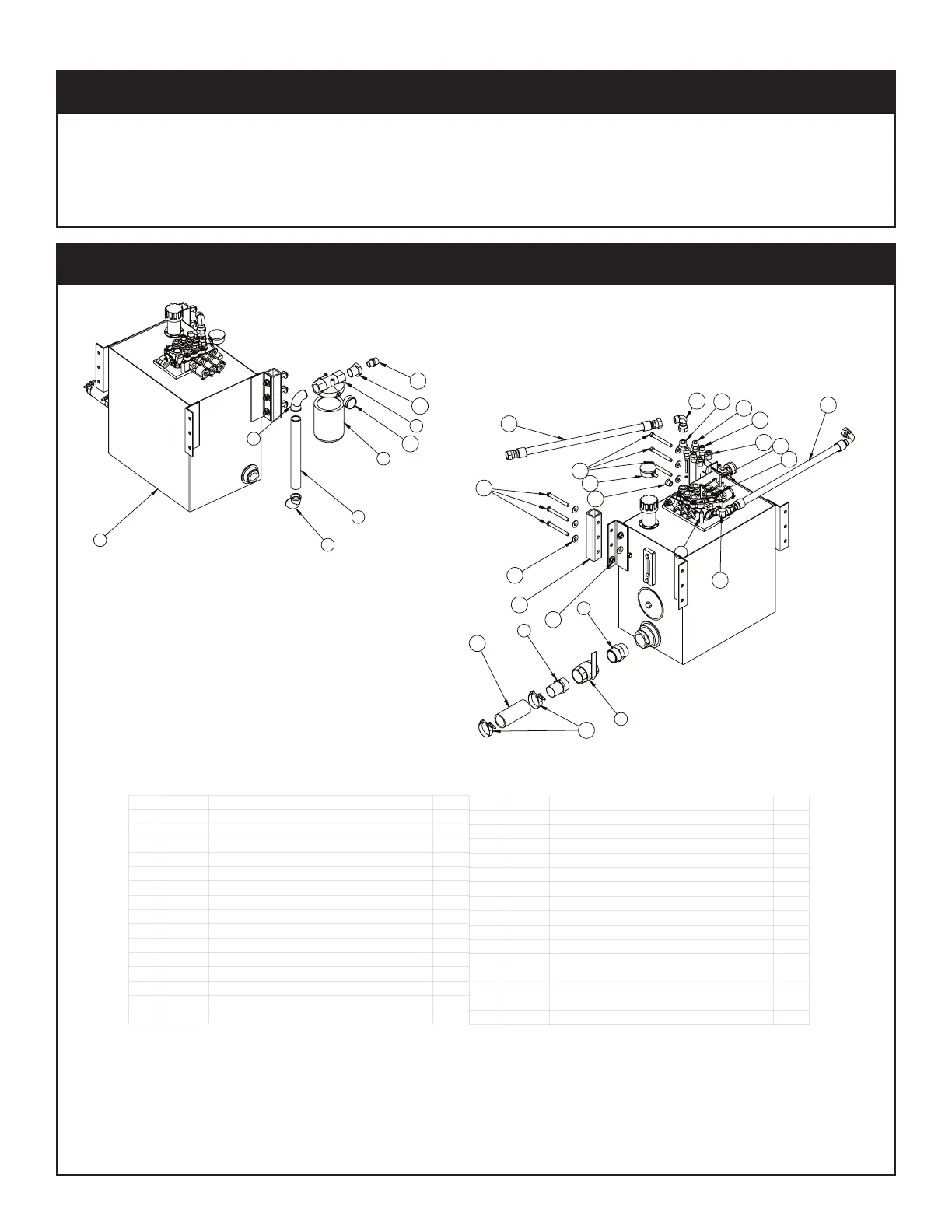

stellar labs Slider26 - Step 6: Install Hydraulic Reservoir and Valve Bank; Reservoir Assembly - PN 47572

 Slider26 Owner’s Manual
a. Before drilling and bolting to the frame, confirm adequate room for cable routing between
in-cab controls and the valve bank.
Note: The top of the reservoir should not be above the truck frame.
18
19
14
11
17
15
17
16
7
30
10
2
8
22
24
25
12
27
26
28
13
9
29
3
4
3
6
21
20
5
23
1
ITEM PART DESCRIPTION QTY
1 26510 RSRVR ASM 25GAL K MODEL
1
2 7353 NIPPLE 2.00 HEX PIPE 2FF
1
3 C4694 ST EL 1.25 90 DEG BLK
2
4 D0024 NIPPLE 1.25X14.00 BLK
1
5 C6228 FILTER HEAD SF120-25 1.3
1
6 C6225 FILTER LARGE SE-10
1
7 C4750 VALVE BALL 2.00
1
8 C4730 FTG HOSE BARB 2.00
1
9 47562 VB 3-SECTION VDM8 W/AIR ACTUATORS
1
10 0521 WASHER 0.25 LOCK
3
11 C5968 FTG ADAPT 90 12-C5OLO-S
1
12 C2252 FTG ADAPT 8-10-F5OLO-S
2
13 16152 FTG ADAPT 10-F5OLO-S
2
14 26737 HOSE 0.75(471TC-JC-J9-12-12-12-24)
1
15 0352 WASHER 0.50 USS FLAT ZINC
12
ITEM PART DESCRIPTION QTY
16 C6106 NUT 0.50-13 HHGR5 NYLOC
6
17 0507 CAP SCR 0.50-13X4.50 HHGR5
6
18 27119 HOSE 0.75(78C-12-JC-JC-12-12-12-120)
1
19 10094 GAUGE OIL LF 2.5" 0-500 BM
1
20 C2375 FTG REDU 0102-20-12
1
21 C4952 FTG ADAPT 12 FLO-S
1
22 13325PC SPACER TANK MOUNTING 25 GAL
2
23 16145 GAUGE PRES FILTER SERVICE CI20
1
24 C4819 HOSE CLAMP 2.00
2
25 17766 HOSE SUCT 2.00 10FT
1
26 25630 FTG ADAPT 10-1/4 F5OG
1
27 d1435 FTG ADAPT O'RING 12-10
1
28 c4903 FTG SL LOK SWIVEL 12-C6LO-S
1
29 C1855 FTG ADAPT 6-10 F5OLO-S
2
30 0339 CAP SCR 0.25-20X2.50 HHGR5
3
PN 47572
Reservoir Assembly - PN 47572
Step 6: Install hydraulic reservoir and valve bank.
