Assembly Drawings 

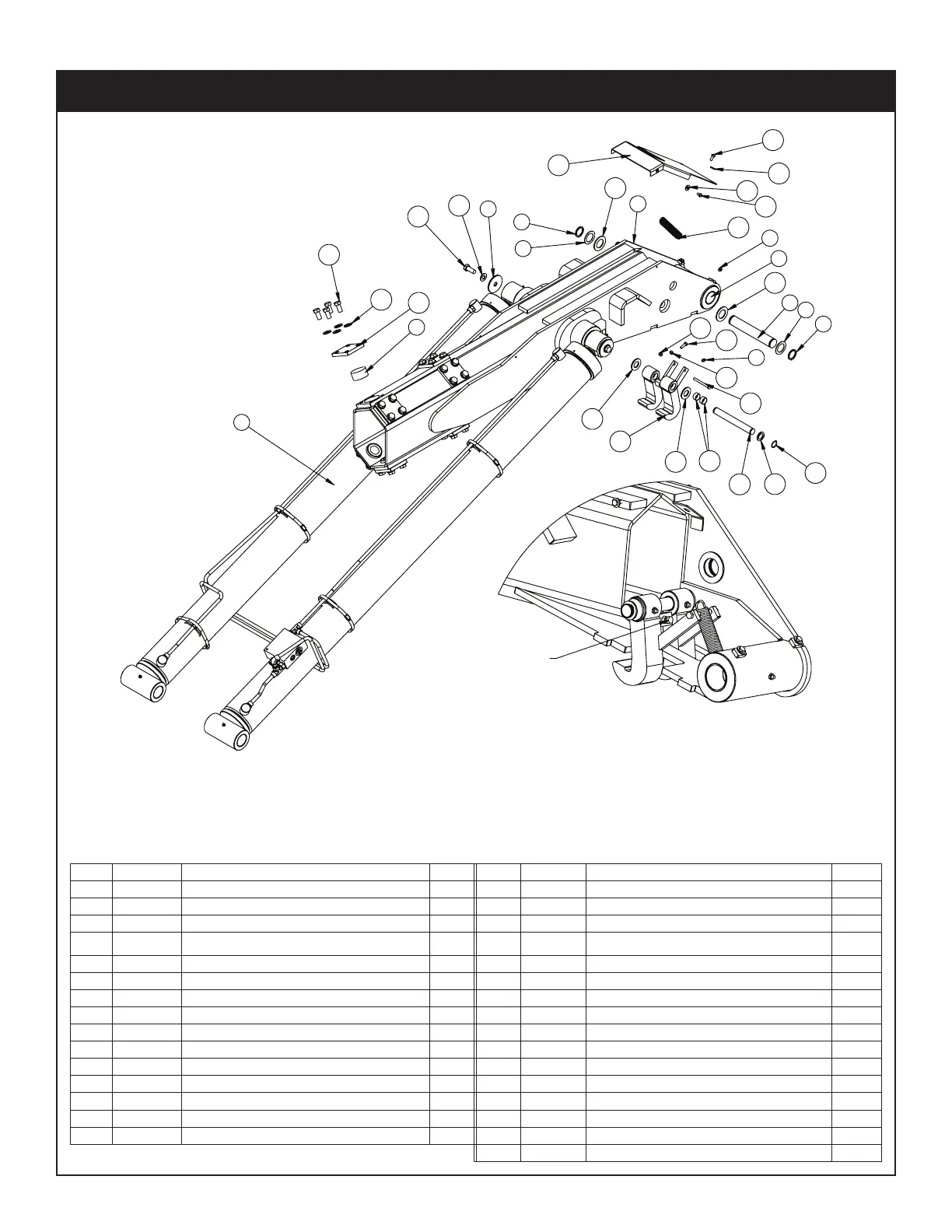

PN 53669
THE SCREW SHOULD BE SET SO THAT WHEN THE JIB IS FULLY
2.
RETRACTED THE LATCHES CLEAR THE DUMP LATCH BAR AND DO NOT COME
IN CONTACT WITH THE BOTTOM SECONDARY PLATE
NOTE: FOR SETTING THE ADJUSTMENT SCREW
THE TAB ON THE BACK OF THE JIB PUSHES ON THE SCREW TO RELEASE1.
THE LATCHES
2. PLACE AN ADDITION 1 OF PART NUMBER 0376 BEHIND
ONLY THE 4 WEAR PADS ON THE BOTTOM.
1. PLACE 1 OF PART NUMBER 0426 BEHIND EACH WEAR PAD
NOTE: FOR SHIMMING WEAR PADS
ITEMPART DESCRIPTIONQTY.
1 0246SNAP RING ID 7200 1502
2 53770 CYLINDER ASM DUAL SLIDER 26K1
3 0376 MACHY WASHER 1.50ID 14GA6
4 4381 BUSHING 32DXR32 2.00X2.00 GARLOCK2
5 8454 PIN CAP 0.69x3.00x0.19 SS2
6 30961 PIN 1.50X9.25 SR SS1
7 30962 WEAR PAD 2.50X1.258
8 53670 SECONDARY SLIDER 261
9c1592 ZERK 1/8 NPT STRAIGHT3
10 C5902 WASHER 0.63 SAE FLAT YELLOW GR834
11 D0419 THRUST WASHER2
12 0356 CAP SCR 0.63-11X1.50 HHGR8 2
13 54222PC PLATE WEAR PAD CAP SLIDER 268
14 40019 CAP SCR 0.63-11X1.25 HHGR8 32
15 C0922 CAP SCR 0.31-18X1.00 HHGR51
ITEMPART DESCRIPTIONQTY.
16 54817 SPRING 1.00ODX0.125X4.501
17 0534 NUT 0.31-18 HHGR51
18 54819 FORMED PLATE COVER SEC SLIDER 261
19 54221PC DUMP LATCH WLDMT SLIDER 261
20 12520 NUT 0.31-18 HH NYLOC SS2
21 0420 CAP SCR 0.31-18X0.75 HHGR5 2
22 0343 WASHER 0.31 USS FLAT ZINC4
23 0484 CAP SCR 0.31-18X0.50 HHGR52
24 12178 CAP SCR 0.31-18X3.25 HHGR51
25 0426 MACHY WASHER 1.50ID 10GA8
26 0488 CAP SCR 0.31-18X2.00 HHGR51
27 0164 PIN 1.00X8.38 1
28 6538WASHER 1.00 SAE FLAT YELLOW GR82
29 0110SNAP RING 1.00 ID 7200-1002
30 20362BUSHING BPC16DXR08 1.00X.504
31 0424 MACHY WASHER 1.00ID 10GA2
8
9
4
6
3
1
3
1
5
10
12
7
10
14
11
11
13
28
16
2
23
22
18
22
21
28
20
17
15
24
27
31
29
19
30
9
ADJUSTMENT SCREW
Secondary Assembly - PN 53669
