stellar labs Slider26 - Controls; Fenders

a. Use PTO brand specific installation instructions.
b. For cab controls, see controller assembly drawing for details:
 Slider26 Owner’s Manual
Step 11: Install mud flaps and fenders.

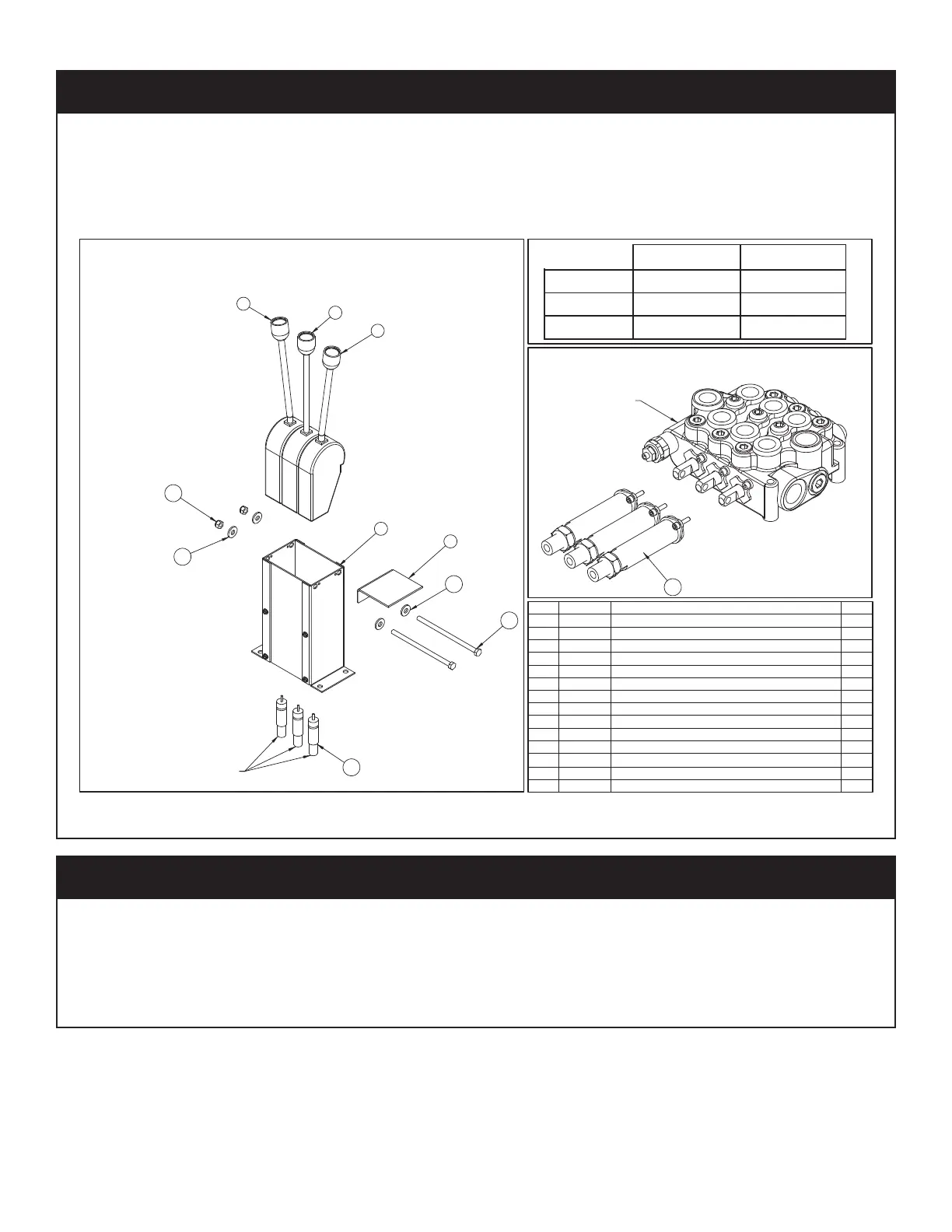

Step 10: Install cab and PTO controls.
96 INCH
2 SECTION 3 SECTION
PN 55534
144 INCH PN 55540
192 INCH PN 55541
PN 54746
PN 54747
PN 54748
1
20
4
In Cab Installation
19
5
19
6
3
17
14
CONTROL CABLES
TO VALVE BANK
13
Valve Bank Shown
For Reference
At Valve Installation
.YTQNOITPIRCSEDTRAPMETI
138351 VALVE CTRL CONSOLE 3LEVER RVC (3 Section Only) 1
137470 VALVE CTRL CONSOLE 2LEVER RVC (2 Section Only) 1
337475 CONTROLLER CTR LOCK LEFT BEND 1
437476 CONTROLLER CTR LOCK NO BEND (3 Section Only) 1
537474 CONTROLLER CTR LOCK RIGHT BEND 1
625933 BRKT CONTROLLER DECAL 1
13 37469 CABLE CONN. KIT FOR VD8A/VDM8 2/3
14 37471 CONTROL CABLE 96 IN WESCON 2/3
14 37472 CONTROL CABLE 144 IN WESCON 2/3
14 37473 CONTROL CABLE 192 IN WESCON 2/3
17 20057 CAP SCR 0.31-18X6.50 HHGR5 (3 Section Only) 2
17 0491 CAP SCR 0.31-18X4.00 HHGR5 (2 Section Only) 2
19 0343 WASHER 0.31 USS FLAT ZINC 4
20 0342 NUT 0.31-18 HHGR5 NYLOC 2
