Slider26 Owner’s Manual
a. Route hose line from the reservoir to the pump.
b. Route hose line from the pump to the valve bank (See corresponding hose kit drawing).
c. Route hose line from the valve bank to the reservoir (See corresponding hose kit drawing).
d. Route hose line from the valve bank and the hooklift (See corresponding hose kit drawing).
Notes: 1. Protect these lines with hose wrap when necessary.
2. Keep these lines away from sharp edges.
3. Keep these lines away from the exhaust or other temperature extreme items.
4. Keep these lines away from the driveshaft or other moving items.
e. If tapping into the power beyond valve bank for additional function, see “Power Beyond
VDM8 Valve’ for installation details.
Step 8: Route hydraulic hoses.

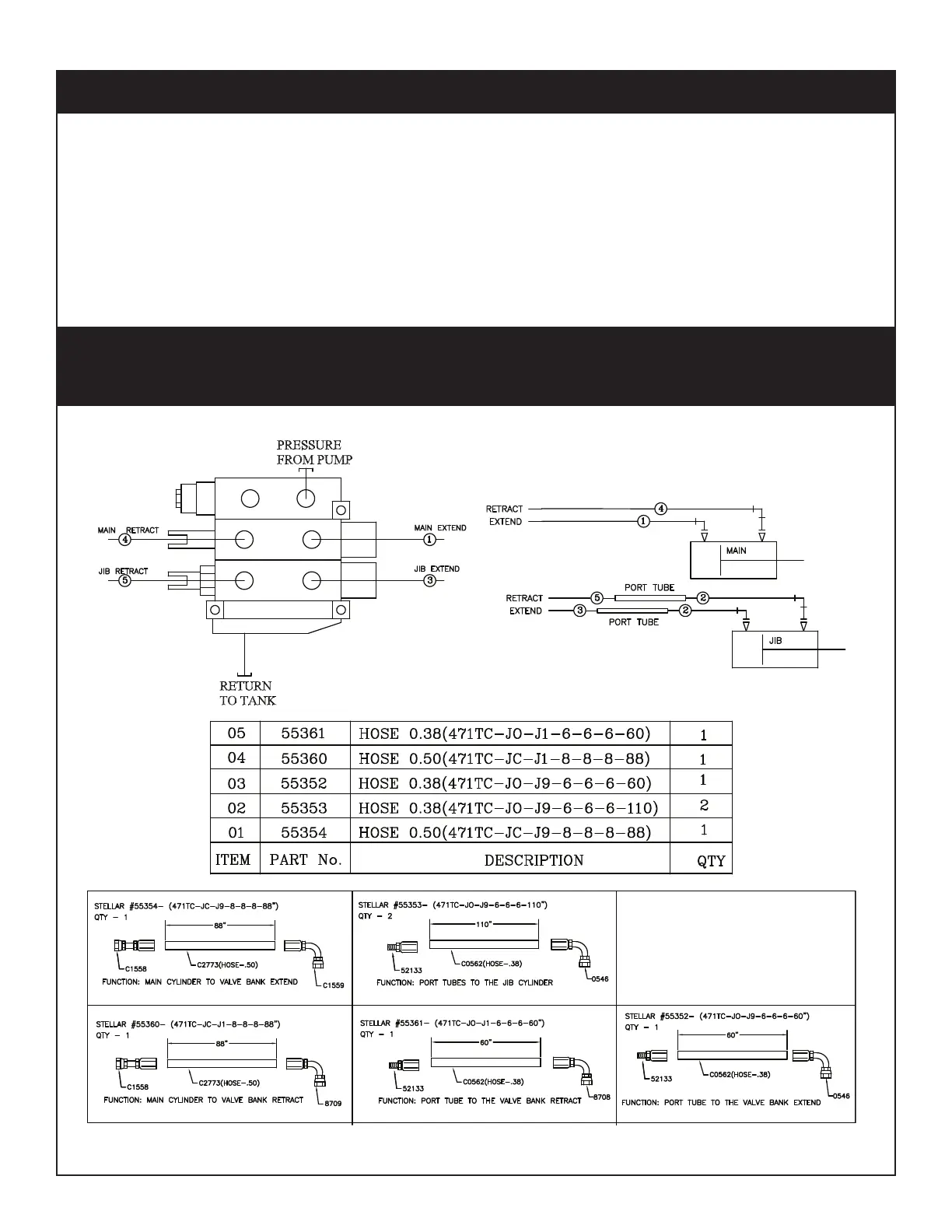

Hose Kit - PN 54851
(Fixed Hook Height Models)
To Next Page
