stellar labs Slider26 - Chapter 6 - Assembly Drawings; Base Assembly - PN 53457

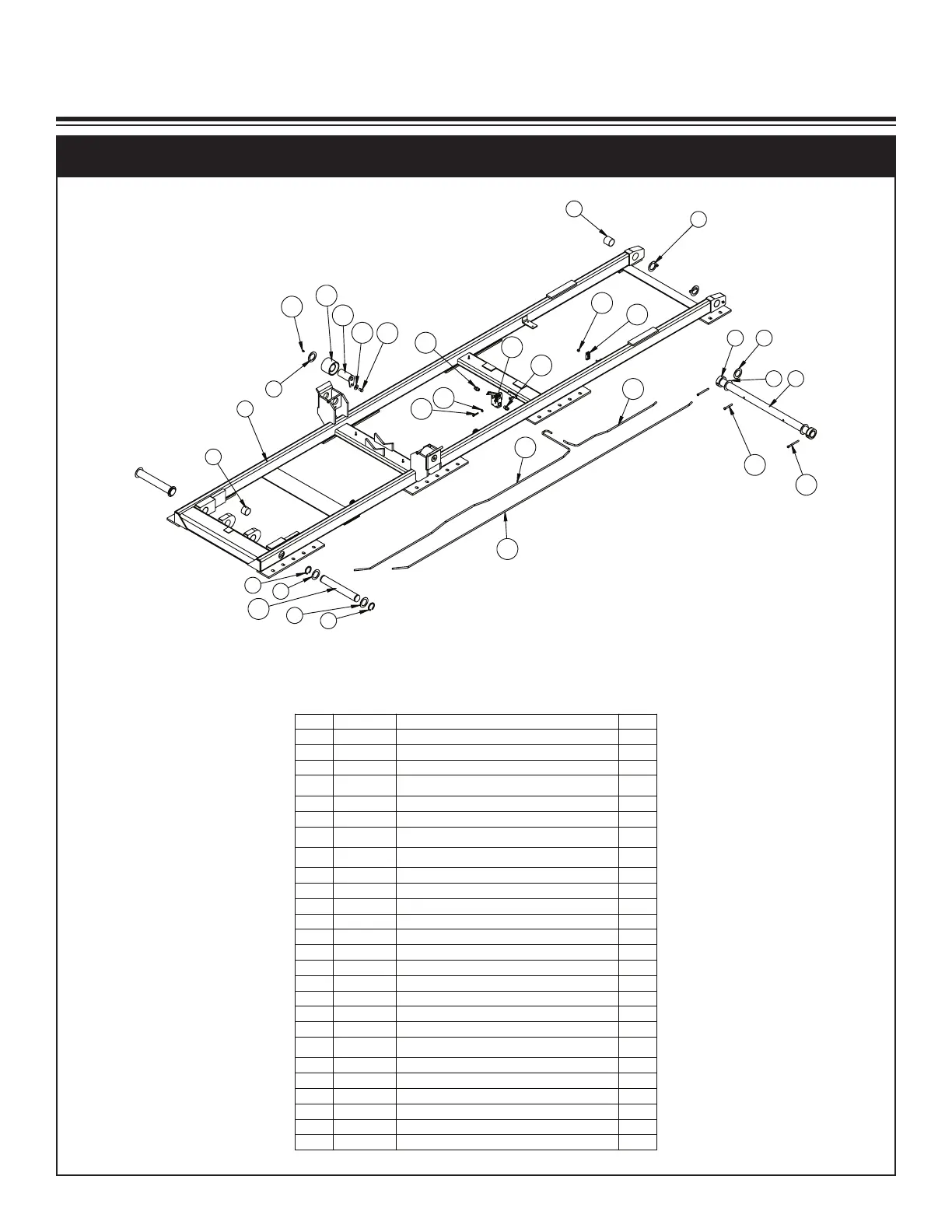

Assembly Drawings 
Chapter 6 - Assembly Drawings
1
2
11
2
1
21
20
22
5
6
4
10
12
15
16
13
14
925
26
19
18
19
24
23
3
17
3
3
7
8
ITEM PART DESCRIPTION QTY.
1 0108 SNAP RING 2.00 7200-200 4
2
0377 MACHY WASHER 2.00ID 14GA 4
3
0427 MACHY WASHER 2.00ID 10GA 6
4 1546 THRUST WASHER 2.01DIA UHMW .12THK 2
5 53772 PIN 2.00X36.44 CR 1
6
22764PC COLLAR 2.01X3.00X1.00 2
7 4380 BUSHING 32DXR24 2.00X1.50 GARLOCK 2
8 4381 BUSHING 32DXR32 2.00X2.00 GARLOCK 4
9 53458 BASE SLIDER 26 1
10 C0953 CAP SCR 0.38-16X4.00 HHGR5 2
11 53776 PIN 2.0 X 13.63 CR 2
12 c1592 ZERK 1/8 NPT STRAIGHT 2
13 0352 WASHER 0.50 USS FLAT ZINC 2
14 C0990 CAP SCR 0.50-13X0.75 HHGR5 2
15 45373 ROLLER 4.00 OUTSIDE KP60 2
16 54522 PIN TEAR DROP 2.00X4.38 W/ZERK 2
17 0530 CAP SCR 0.38-16X2.75 HHGR5 2
18 53853 VALVE PLUNGER VILLA HYD 1
19 C1854 FTG ADAPT 6-8 F5OLO-S 2
20 54602
TUBE ASM 0.38 SLIDER26 JIB RETRACT
VALVE
1
21 54603 TUBE ASM 0.38 SLIDER26 JIB RETRACT 1
22 54743 TUBE ASM 0.38 SLIDER26 JIB EXTEND 1
23 8622 CLAMP HOSE/TUBE AG-2 6
24 0347 NUT 0.38-16 HHGR5 NYLOC 7
25 0332 CAP SCR 0.25-20X1.75 HHGR5 2
26 0340 WASHER 0.25 USS FLAT ZINC 2
PN 53457
Base Assembly - PN 53457
