stellar labs Slider26 - Jib Assembly (36;54 Hook Height)

 Slider26 Owner’s Manual
23
23
9
2
19
20
22
21
20
6
7
8
19
1
4
3
5
10
11
15
17
14
12
14
13
A
26
24
18
18
16
16
Note: Base assembly shown for reference.
DETAIL A
18
25
25
ITEM PART DESCRIPTION QTY
154061 JIB HYD SLIDER 26 36/54HH 1
254064
JIB TOP SLIDER 26 HYD ADJUST
36/54HH
1
354529
CYLINDER ASM 3.00X17.88 1
454527
CYLINDER ASM 3.00X42.00 SHORT
BOSS
1
554213
HOSE TRACK ASM SLIDER 26 1
6
43513PC
PLATE WEAR PAD COVER SLIDER34
JIB
4
7
C5902 WASHER 0.63 SAE FLAT YELLOW GR8 24
840019
CAP SCR 0.63-11X1.25 HHGR8 ZY 24
942448
WEAR PAD A2 HYD JIB 4
10 54874
TUBE ASM 0.25 SLIDER26 JIB HH
SMALL BEND
1
11 54873
TUBE ASM 0.25 SLIDER26 JIB HH
LARGE BEND
1
12 8622
CLAMP HOSE/TUBE AG-2 1
13
D1314 FTG SWIVEL NUT ELBOW 4-C6LO-S 2
PN 53961
14 0346 WASHER 0.38 USS FLAT ZINC 2
15 0353
CAP SCR 0.38-16X2.00 HHGR5 1
16 0479
CAP SCR 0.25-20X0.75 HHGR5 2
17 0347
NUT 0.38-16 HHGR5 NYLOC 1
18 0333
NUT 0.25-20 HHGR5 NYLOC 5
19 0108
SNAP RING 2.00 7200-200 2
20 54129
SNAP RING INSIDE 1.50 2
21 54130
PIN 1.50X4.31 1
22 47847
PIN 2.00X8.44 1
23 0377
MACHY WASHER 2.00ID 14GA 2
24 55110
TUBE ASM 0.25 SLIDER26 JIB HH 1
25
C5606 CLAMP 0.25 BLK VINYL 8
26 55227
TUBE ASM 0.25 SLIDER26 JIB HH 1
ITEM PART DESCRIPTION QTY

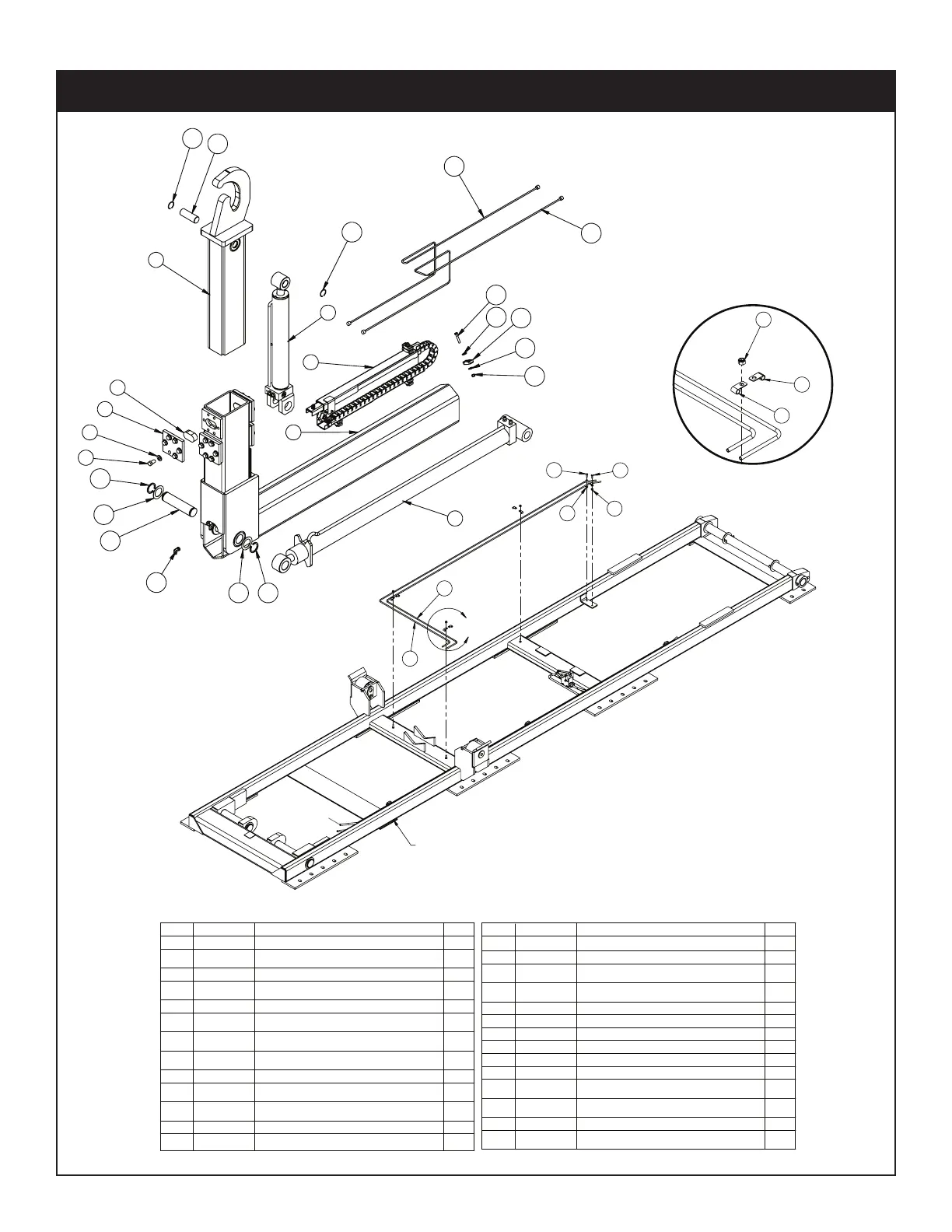

Jib Assembly (36/54” Hook Height) - PN 53961
