stellar labs Slider26 - Step 9: Route Electrical Components

Installation 

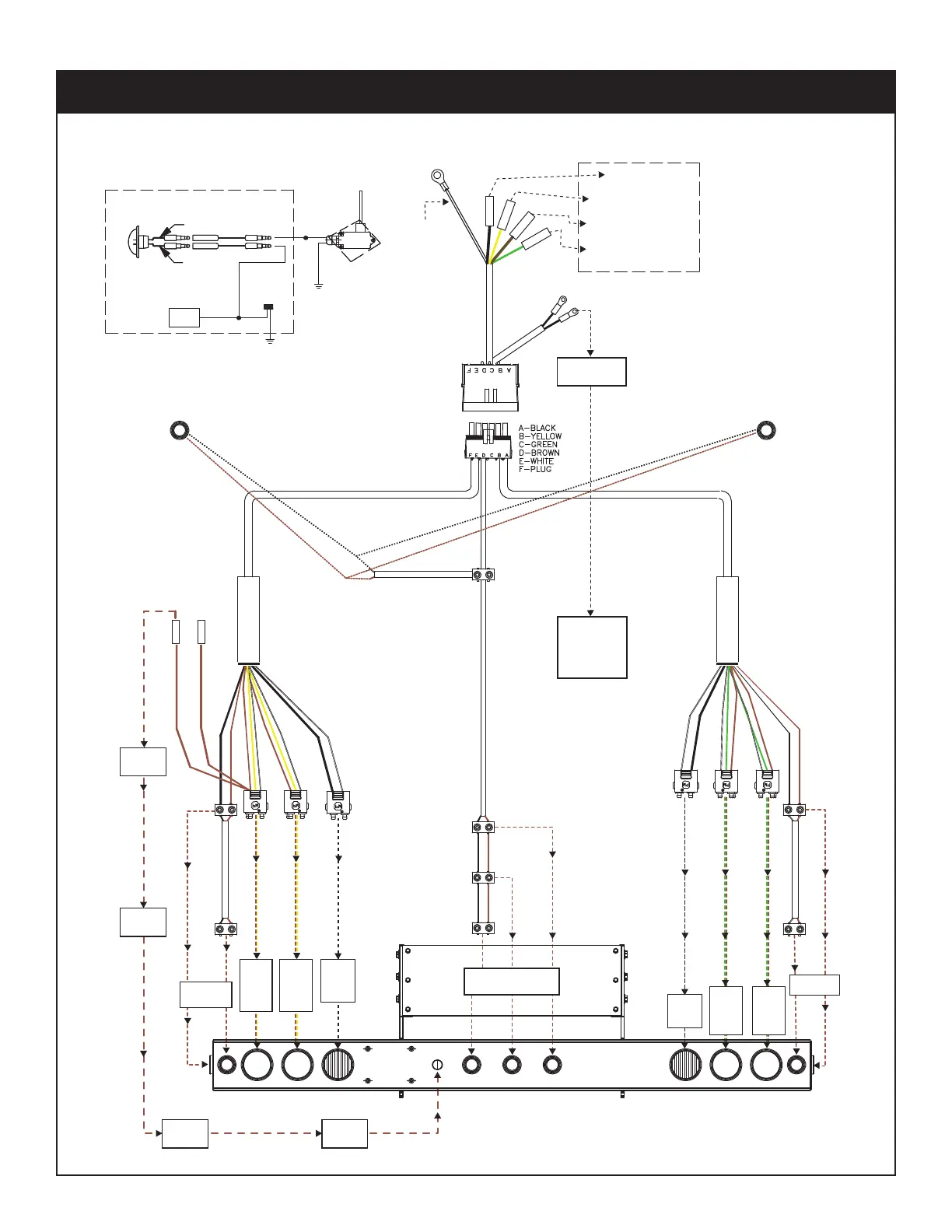

Step 9: Route Electrical Components
NOTE: GROUND THE
WHITE WIRES TO THE
BUMPER.
EXISTING TRUCK
WIRING HARNESS
LH, TURN, BRAKE, LIGHT
(YELLOW)
RH, TURN, BRAKE, LIGHT
(GREEN)
TAIL, CLEARANCE, LIGHT
(BROWN)
BACK-UP LIGHT
(BLACK)
GROUND
(WHITE)
GROUND
(WHITE)
PTO
GROUND
PTO
LIGHT
GROUND
TO FRAME
TRUCK CAB
HOIST UP
LIGHT
FUSE
Note: The Hoist Up Light will only
be activated when the iginition is hot.
It is recommended to tap into the
PTO light power source when wiring.
BLOCK
COLORED
WHITE
REMOTE
SWITCH
REAR CLEARANCE
(BROWN/WHITE)
BACK-UP ALARM
(WHITE/BLACK)
RED CLEARANCE
(WHITE/BROWN)
RED CLEARANCE
(WHITE/BROWN)
TAG LIGHT
(BROWN)
TAG LIGHT
(BROWN)
TAG LIGHT
(BROWN)
LH TURN/
STOP
RED LIGHT
(WHITE/
BROWN/
YELLOW)
RH TURN/
STOP
RED LIGHT
(WHITE/
BROWN/
YELLOW)
RH TURN/
STOP
RED LIGHT
(WHITE/
BROWN/
YELLOW)
BACKUP
WHITE LIGHT
(WHITE/
BLACK)
TAG LIGHT
(BROWN)
MID-BODY CLEARANCE
2” AMBER RND LED
MID-BODY CLEARANCE
2” AMBER RND LED
PN 12516
JUMPER TO MID-BODY
CLEARANCE LIGHTS
PN 38056
PN 40310
BACK-UP ALARM
(WHITE/BLACK)
Note:
Installed inside
of the frame rail.
BACKUP
WHITE LIGHT
(WHITE/
BLACK)
LH TURN/
STOP
RED LIGHT
(WHITE/
BROWN/
YELLOW)
