CL42T(V4.1) Closed-Loop Stepper Driver
2
2.3
Mechanical Specifications
(unit: mm [1inch=25.4mm])
2.4 Heat Dissipation

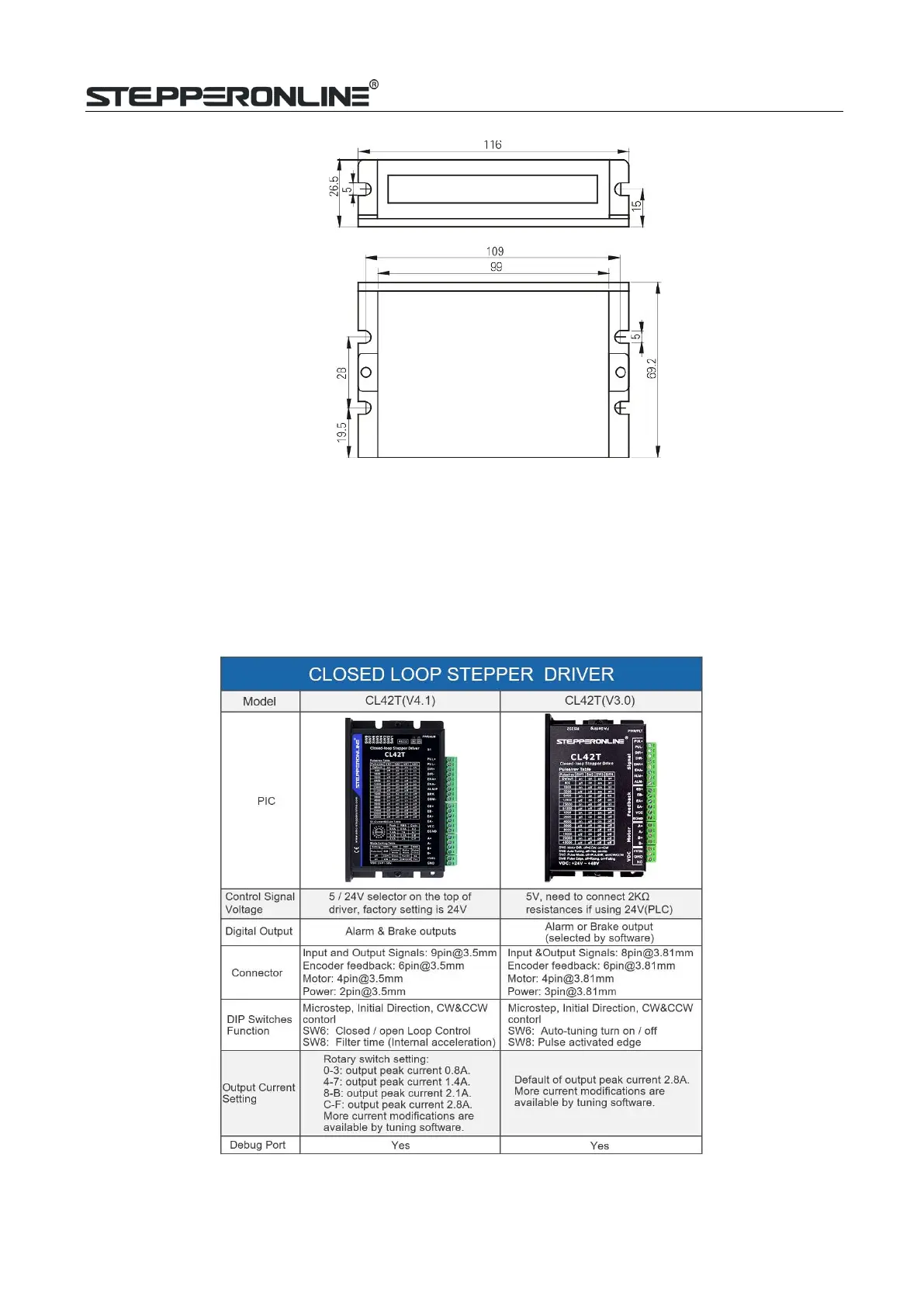

Figure 1: Mechanical specifications

CL42T(V4.1) reliable working temperature should be no more than 40
℃
(109°F)

It is recommended to mount the drive vertically to maximize heat dissipation. Mount a cooling fan
nearby ifnecessary.

If multiple CL42T(V4.1) drives are installed, it is suggested to keep a minimal 30mm (1.2 inches)
between two of them.
