Assembly

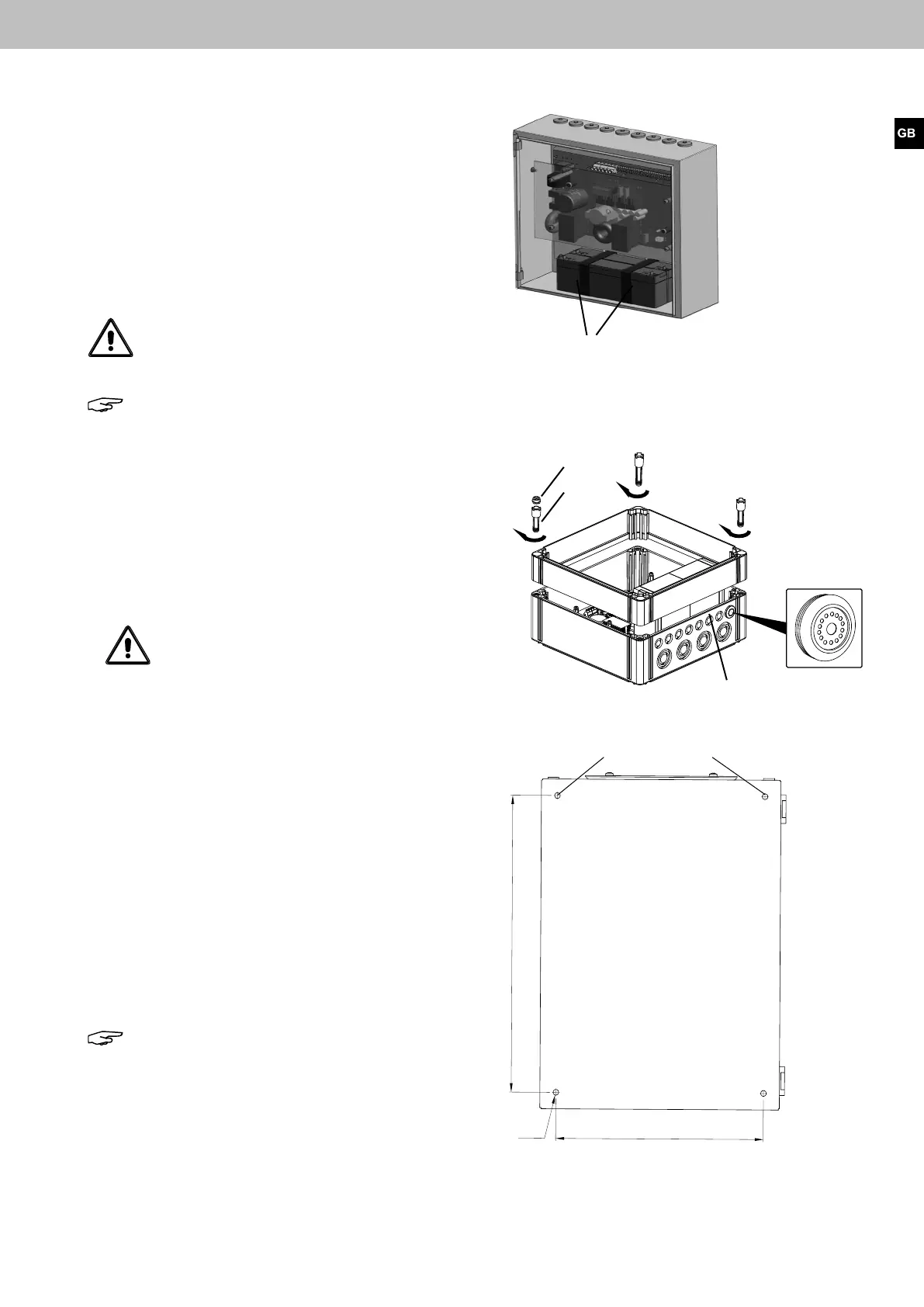

Assembly of compact control panel 4A/M
Once the housing has been fastened to the wall:
1. Thread velcro tapes for attaching the rechargeable
batteries into the assembly panel.
2. Earth connection not forgotten:
It is ensure that the plate with the
Housing is grounded.
Attention: Start up procedure of the control panel
only with installed plexiglass cover.
Note: The Control panel is also available with a
UP-mounting kit.
Assembly of compact control panel 8A
Once the bottom part of the housing has been fastened to the wall:
1. Assemble the intermediate frame onto the bottom part of the
housing with the 4 screws provided A using the screw-in aid B.
2. Thread velcro tapes into the assembly panel.
3. Insert ventilation plug on the underside of the housing.
Attention! Fasten the bottom part of the housing and
the intermediate frame really tightly!
Wall mounting compact control panel 8A/M
1. First remove the mounting plate with control electronics.
2. Fix the housing through mounting holes with suitable
plugs and screws to the wall.
3. Encase the mounting plate back.
4. Earth connection not forgotten:
It is ensure that the plate with the
Housing is grounded.
Note: Thecontrolsystemmustbettedina
dry area at a place that is easily visible and
accessible.
No overhhead installation or rotated by 180°
mounting.
The control system must not be hidden by wall
projections, doors or structures..
Compact control panel 4A, 4A/M und 8A, 8A/M
Rechargeable batteries with velcro
tapes
rd. 7,1
mounting hole
360
260
A
B
Rechargeable batteries
