Assembly
Inserting the rechargeable batteries
1. With the help of the velcro tapes C (in the bottom part of the baseplate), fasten the rechargeable batteries on the
underside of the control panel. In case of the compact control panel 8A/M the battery mounting is used
of metal bracket.

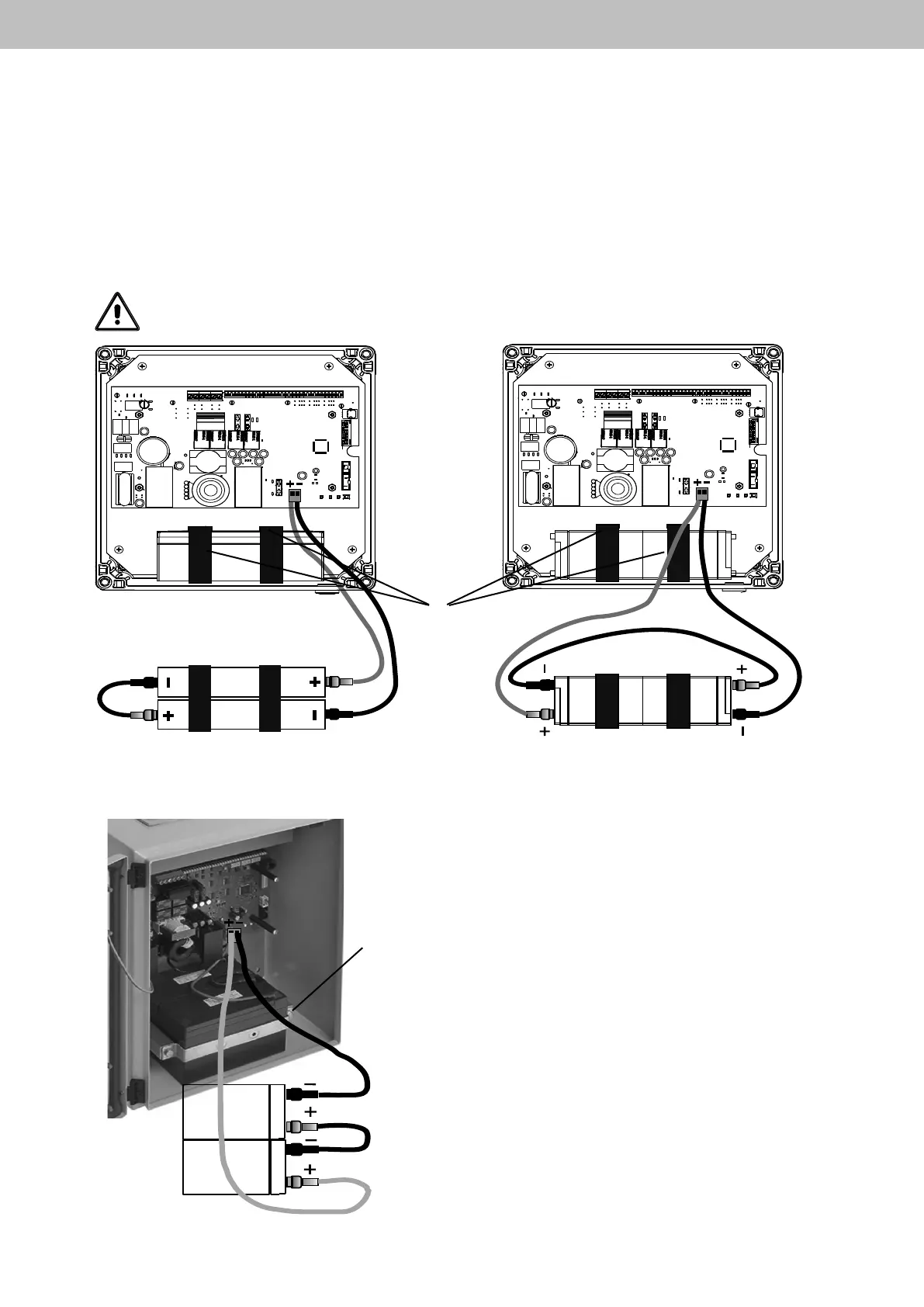

2. Connect the rechargeable batteries together according to the connection diagram below.
3. Place the battery connection cables on the control board using the plug-in screw terminal.
Attention! Ensure the correct polarity on the batteries!
Compact control panel 4A, 4A/M und 8A, 8A/M
8A/M-control panel connection diagram
C
4A control panel connection diagram 8A control panel connection diagram
Top view of batteries Front view of batteries (as installed)
metal bracket
