WORKSHOP MANUAL
3 - ASSEMBLY AND REMOVAL
EDITION
PAGE
12 /37
For transport and storage reasons, the cutting deck is delivered with some parts separate, to be
assembled before applying the equipment to the machine.
All operations must be carried out on a flat and solid surface, with sufficient room
for manoeuvres, wearing protective gloves and always using the appropriate tools.
Remove the contents from the packaging, taking care to collect the various elements and hard-
ware provided, to avoid losing them.
The packaging elements must be disposed of according to the local regulations in
force, taking into account the different materials.

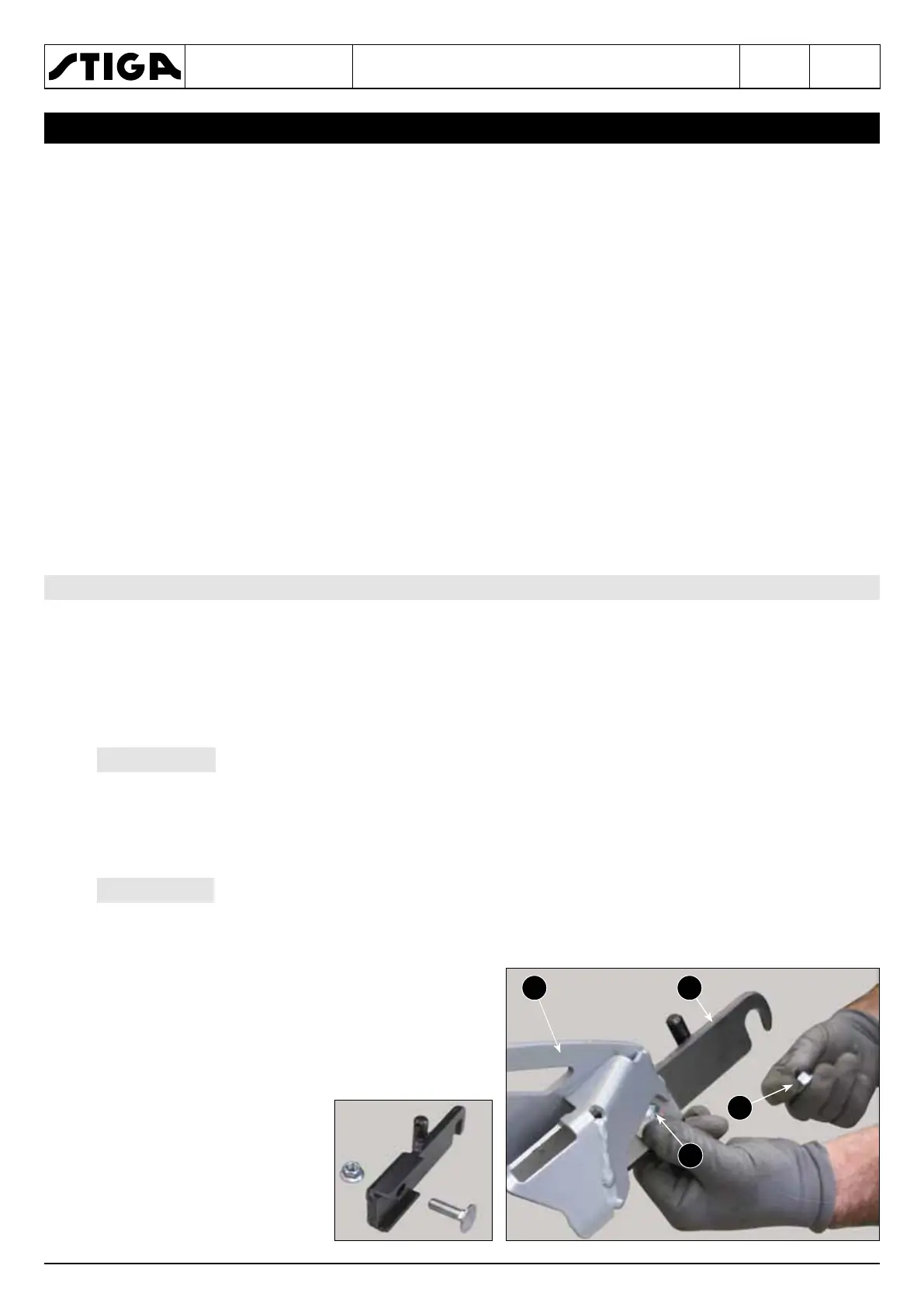

Fit the two coupling hooks (1) inside the arms (2),
taking care to respect the left and right position,
then fasten them in place using the screws (3)
and nuts (4).
3.1 UNPACKING AND COMPLETING THE EQUIPMENT ..............................12
3.1.1 General information .............................................................................. 12
3.1.2 Assembling the coupling hooks ...........................................................12
3.1.3 Basic height adjustment .......................................................................12
3.1.4 Replacing the belt (for the Park 2WD machine only) ............................13
3.2 PREPARE THE MACHINE ........................................................................ 14
3.2.1 Checking the compatibility of the cutting deck with the machine .......... 14
3.2.2 Mounting the interface bracket ............................................................. 15
3.3 INSTALLING THE EQUIPMENT ON THE MACHINE ................................ 15
3.3.1 Coupling and connection of the equipment to the machine .................. 15
3.3.2 Connecting the belt to the machine PTO ............................................. 17
3.4 REMOVING THE EQUIPMENT FROM THE MACHINE ............................18
3.4.1 Disconnecting and removing equipment from the machine ..................18
