WORKSHOP MANUAL
4 - MAINTENANCE
EDITION
PAGE
26 /37

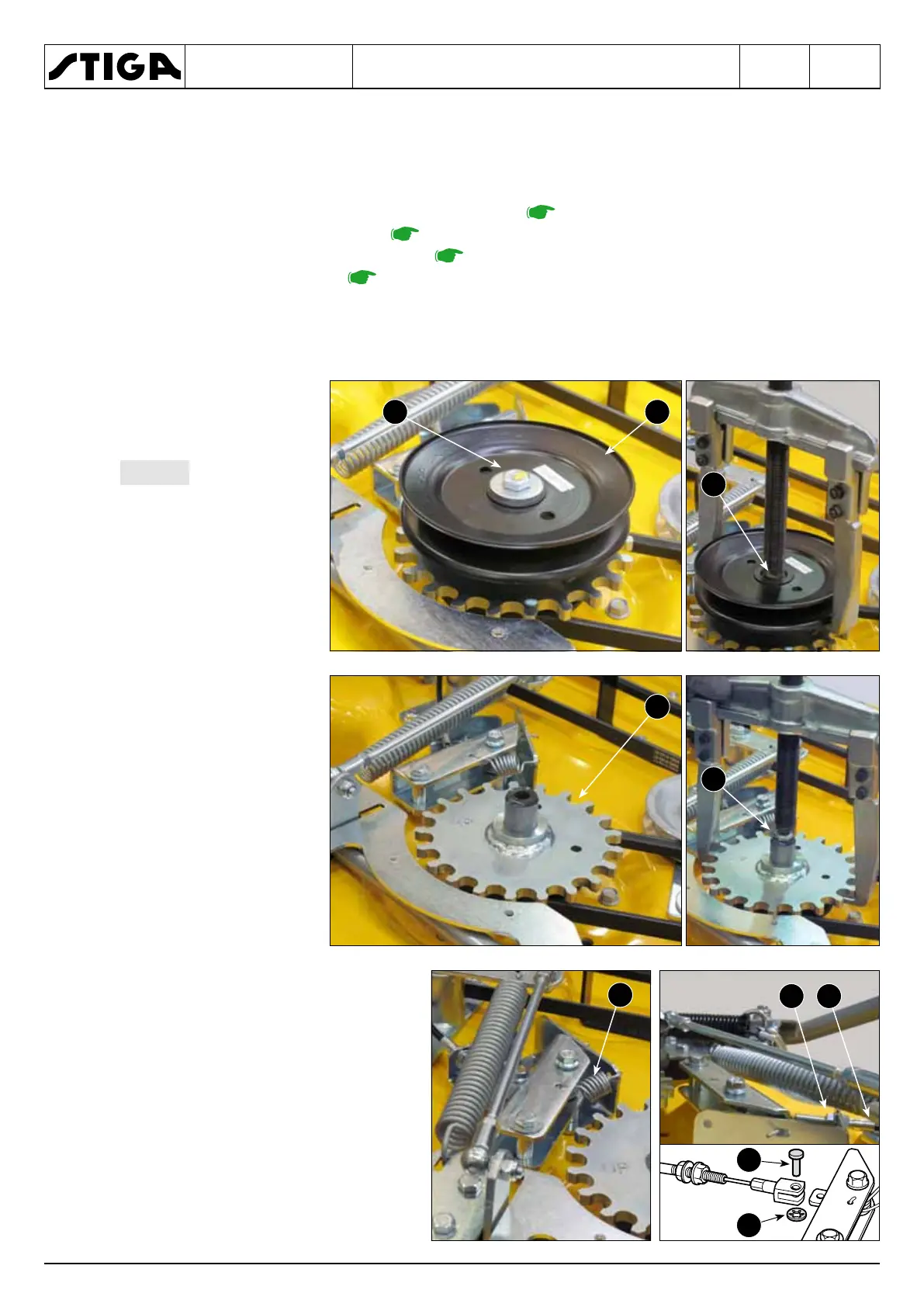

1. Prepare the cutting deck according to the following procedures
• Remove the cutting deck from the machine
.
• Remove the canvas guard
from 1 to 3 .
• Remove the intermediate guard
from 1 to 5.
• Remove the casings.
from 1 to 4
• Fully raise the right arm to reduce the cable tension.
2. Unscrew the screw (1)
and disassemble the
central pulley (2).
In case of dif-
ficulty during removal,
tighten the screw at the
end of the shaft to pro-
tect the thread and use
an extractor as shown in
the diagram.
3. Similarly, remove the
toothed wheel (4), us-
ing an extractor in case
if difficulties are encoun-
tered.
4. Release the spring (5).
5. Loosen the adjuster (6), remove the
elastic ring (7), remove the pin (8)
and disconnect the cable (9).
