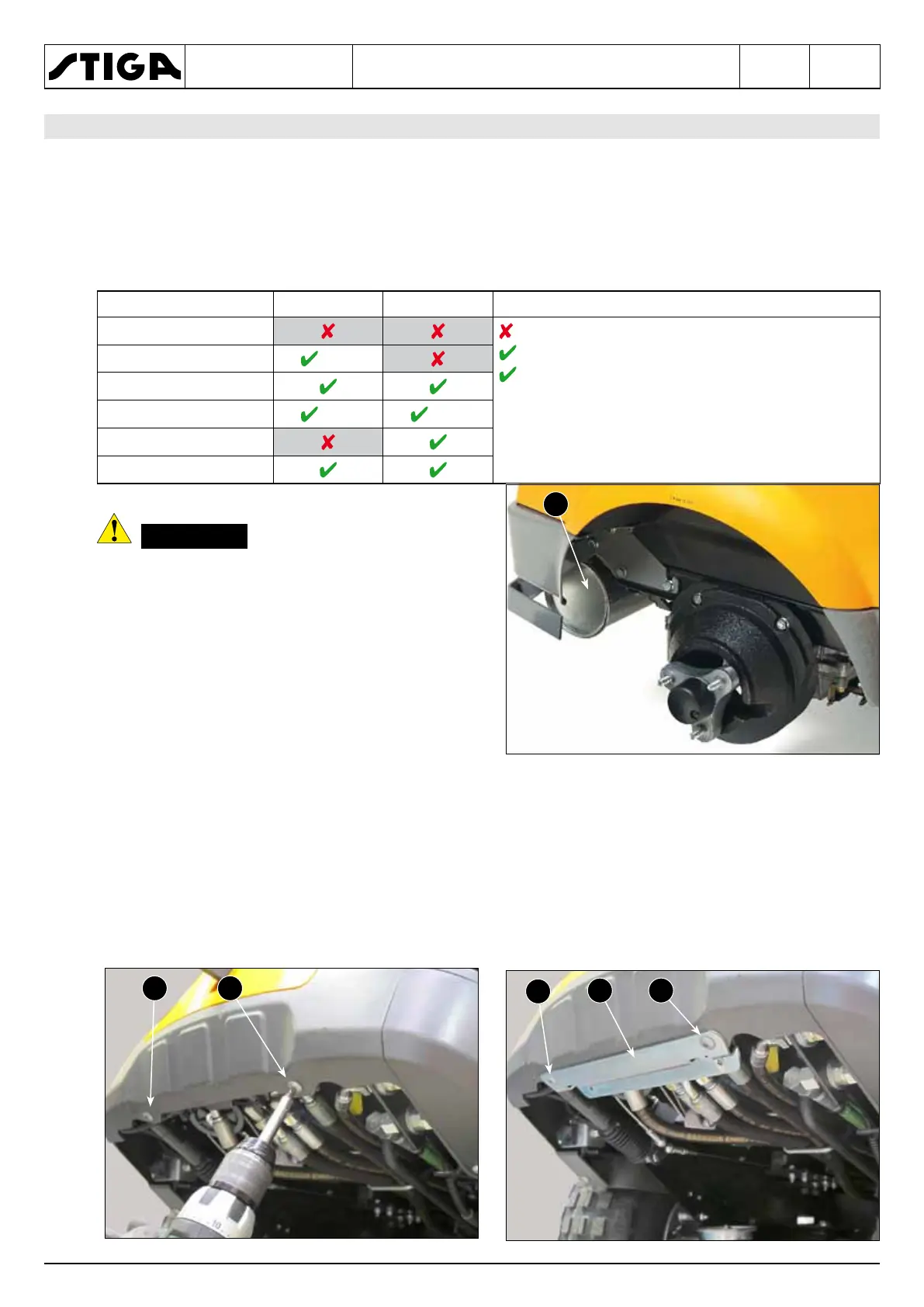

The table provides the elements used to check compatibility between the different types of decks
and the machines on which they can be applied, as well as the obligation to assemble the coun-
terweights on the rear wheels using certain combinations.
P 901 C
= NOT Applicable
= Applicable
= Obligation to mount counterweights
for 2WD machines
1)
Type P 901 CH Model Park 420 P is not ap-
proved for cutting decks 110-125 E QF
P 901 C W
P 901 C 4W
P 901 CH
P 901 CH D
P 901 PH
- Applications other than
those specifically foreseen will compromise
the safety conditions for which the machine
/ cutting deck assembly has been approved
and relieves the Manufacturer from all obli-
gation or liability for damages and / or even
serious injuries that may result therein.
Counterweights (1 - where mandatory) must be
assembled according to the instructions supplied
with the kit.
1. Undo the two screws (1) already pre-assembled in the lower part of the front of the machine.
2. Mount the supplied interface bracket (2), using the same screws (1).
