WORKSHOP MANUAL
4 - MAINTENANCE
EDITION
PAGE
22 /37

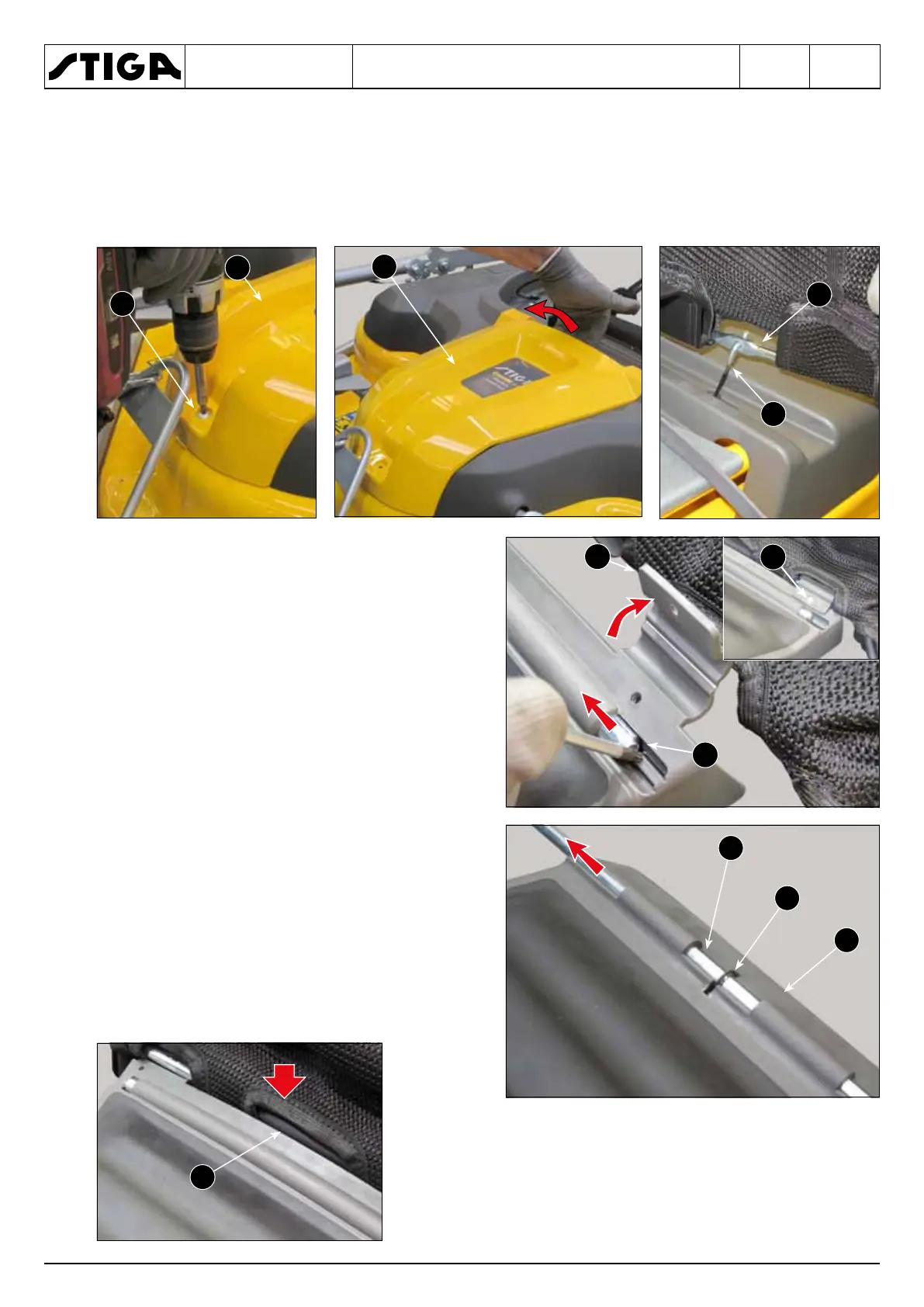

1. Undo the screw (1) and remove the protection (2) by lifting it from the rear section.
2. Release the two positioning cables (3) from the lower frame (4) of the belt guard.
3. Undo the two screws (5) and turn the two sup-
ports (6) backwards.
4. With the help of a screwdriver, push the rear
pin (7) sideways until it an be extracted from
its seat.
5. Remove the elastic ring (8), remove the front
pin (9) and remove the intermediate guard
(10).
Reassemble the new guard following the above
procedures in reverse order, taking care to:
• Refit the elastic ring (8) and make sure that it is firmly in-
serted in its seat.
• Before screwing on the two supports (6), make sure that
the plastic tab (11) of the canvas guard remains inside the
perimeter of the canvas.
