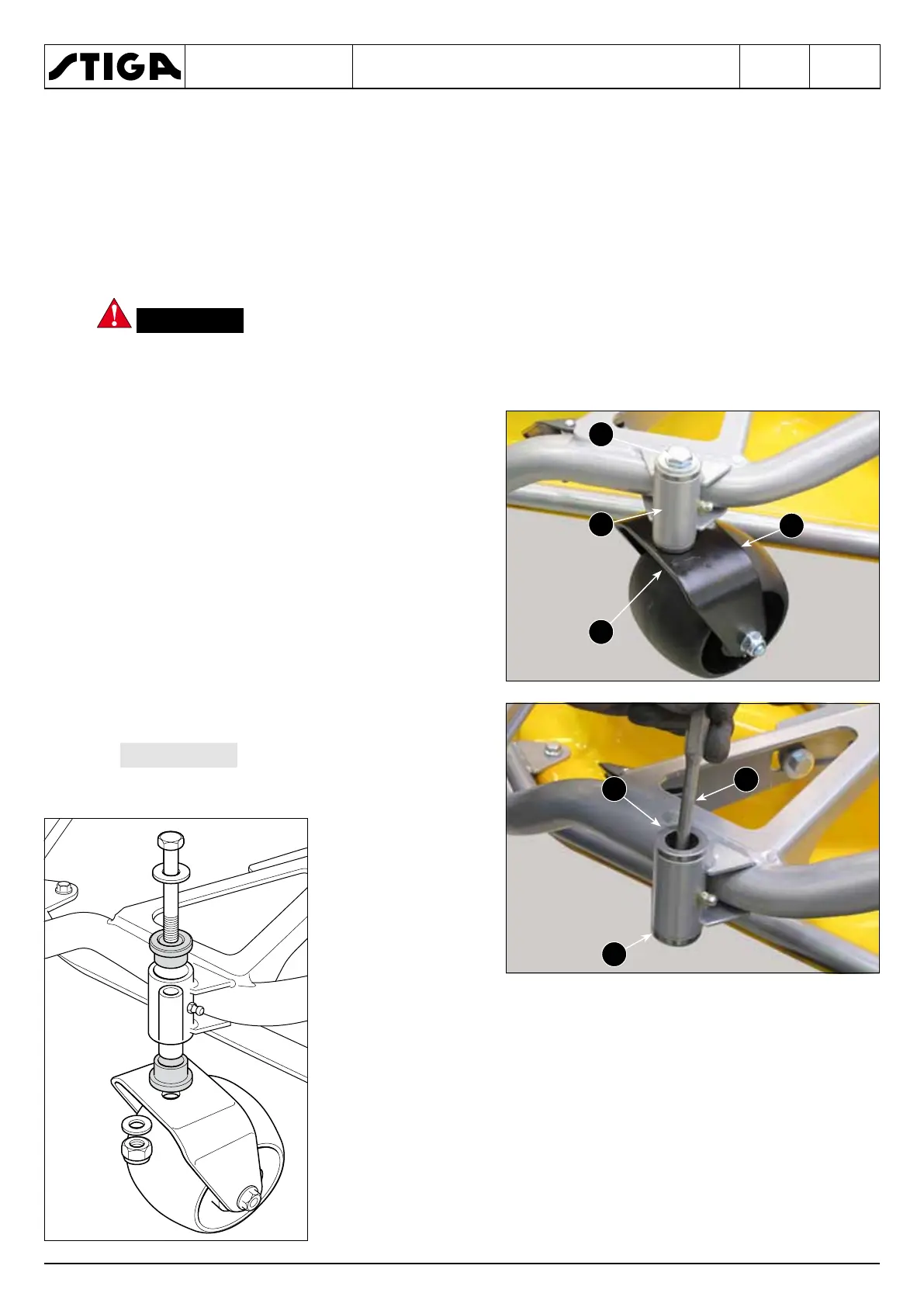

Excessive radial clearance between the wheel support fork and the frame requires the replace-
ment of the bushings, which is carried out according to the following procedure.
• Move the cutting deck to the "Maintenance / Washing" position to allow removal of the support
fork.
- Ensure the stability of the cutting deck (and the machine if the equip-
ment has not been removed) before proceeding with these operations.
1. Undo the screw (1) to slide the fork (2) out of
the hub (3).
2. Remove the bushings (4) by hitting it from the
inside of the hub with a round bar (5) 12 ÷ 15
mm in diameter.
Always replace both hub bush-
ings.
3. Reassemble all the parts following the indicated sequence.
4. Tighten the nut (6) using a torque wrench set to 45-50 Nm.
