WORKSHOP MANUAL
3 - ASSEMBLY AND REMOVAL
EDITION
PAGE
13 /37
This adjustment is ONLY foreseen to check the ratio of the base height of the
cutting deck in relation to the diameter of the front wheels of the machine. No exceptions to this
equipment design rule are permitted.
The equipment is delivered with factory default settings for use on machines with 16”
wheels.
The basic adjustment produces a slight forward inclination of the cutting deck, raising the rear
edge by about 5 mm compared to the front, the optimal condition to ensure even cutting.
All the following operations must be per-
formed from both sides of the equipment.

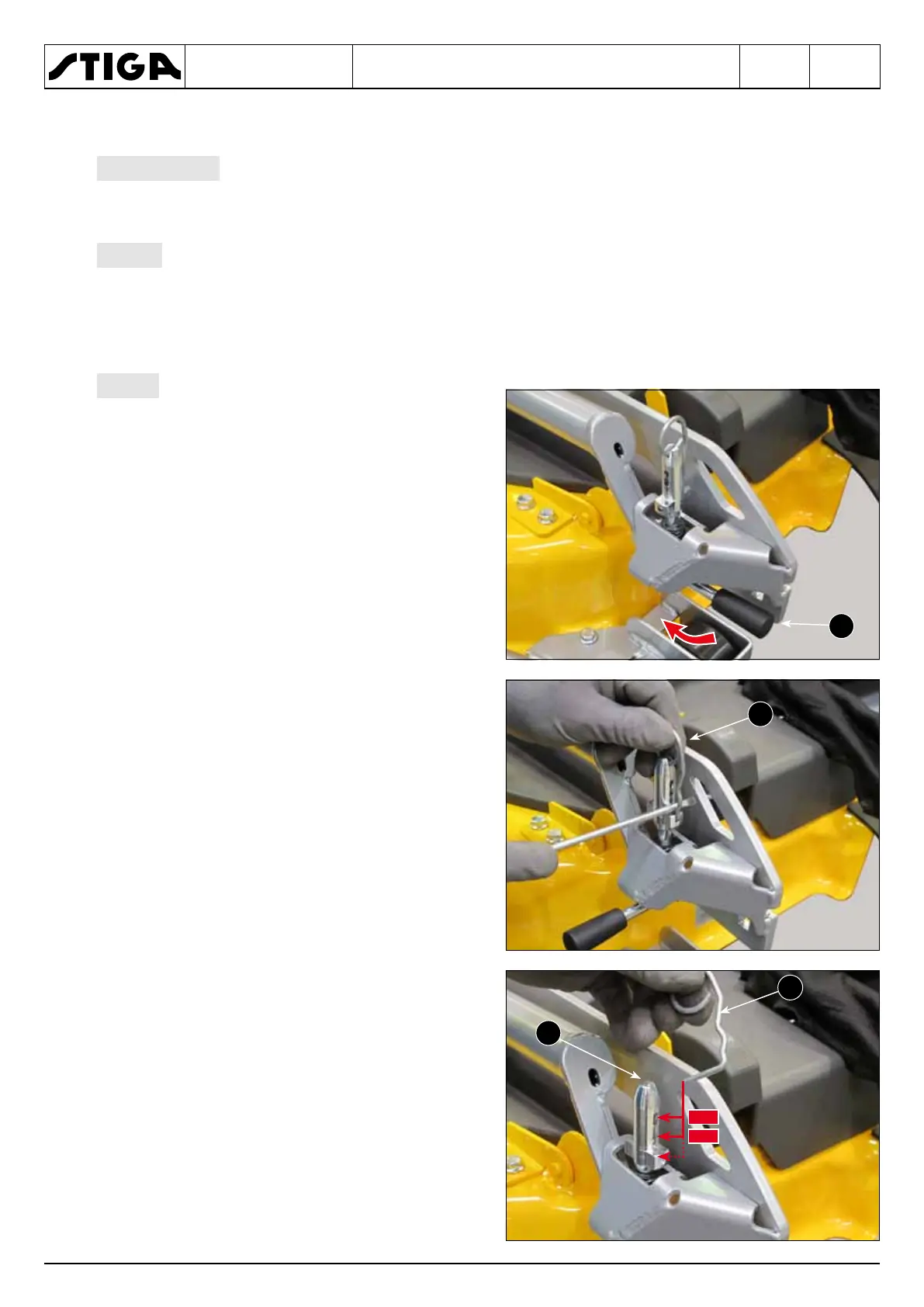

To proceed with the adjustment:
1. Rotate the release lever forwards (1).
2. Use a screwdriver to remove the split pin (2).
3. Reposition the split pin in one of the three
holes provided on the pin (3), according to the
diameter of the wheels and applying this rule:
• 16” front wheels = Centre hole
• 17” front wheels = Top hole
4. Return the release lever (1) to the working po-
sition.
