WORKSHOP MANUAL
4 - MAINTENANCE
EDITION
PAGE
32 /37

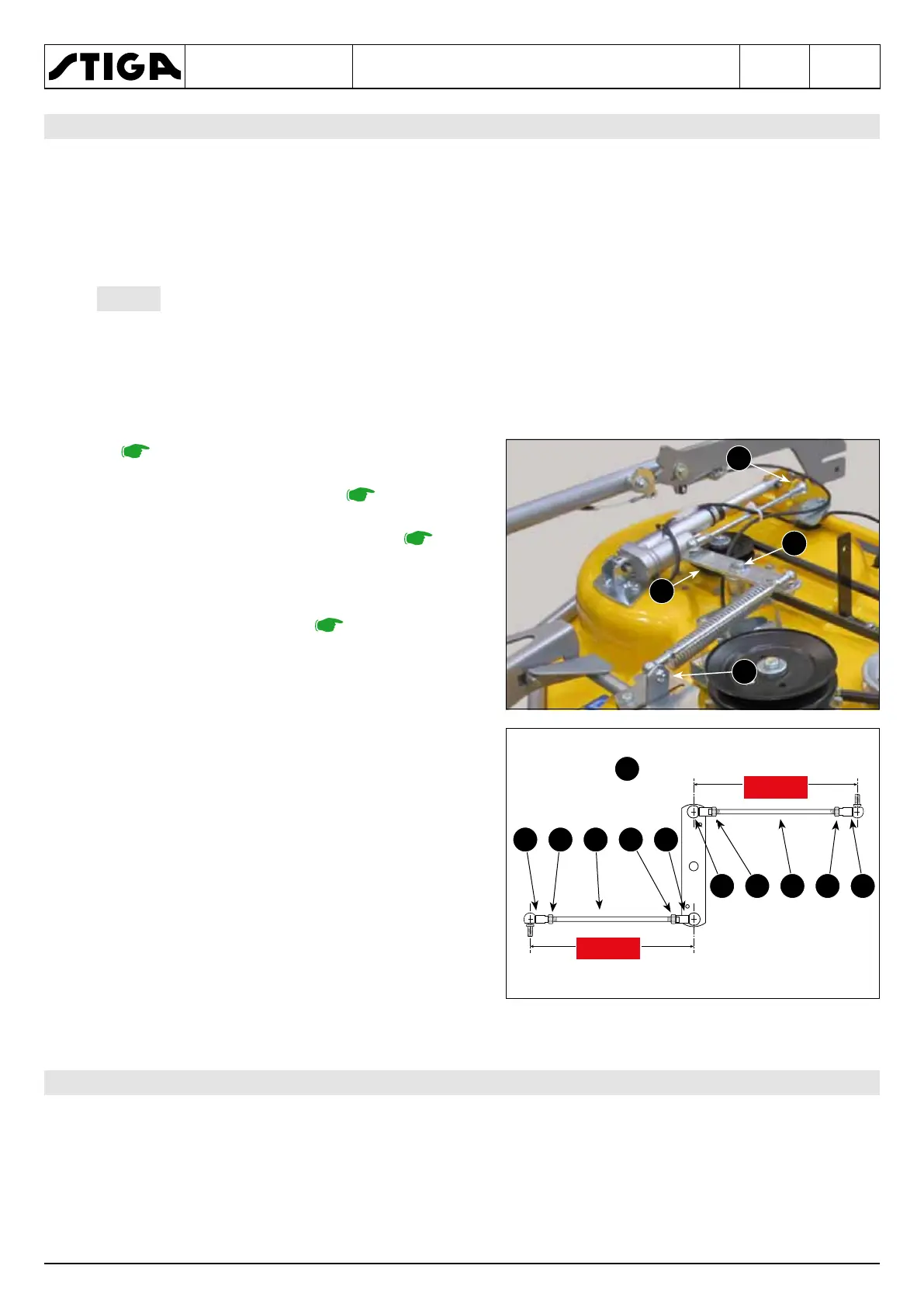

These tie rods connect the two front and rear axles of the cutting deck upstroke lifting mechanism.
If the rods need replacing, it is necessary to respect the distance between the joints.
The optimal condition requires that the deck touches the ground with the front wheels,
keeping the rear wheels raised at all times.
• Remove the machine cutting deck
.
• Remove the canvas guard
from 1
to 3.
• Remove the intermediate guard
from 1 to 5.
• Make movements and lever mechanisms of the
cutting deck accessible
from 1 to 4.
1. Undo the screw (1) and nuts (2) and (3) to re-
move the whole tie rod assembly (4).
2. If only the tie rods (5) are replaced, loosen the
lock nuts (6) and remove the joints (7).
3. Reassemble the tire rod assembly (4) respect-
ing the distance between the joints and tighten
the lock nuts (2).
Using the two front handles allows the plate to be tilted to the "Maintenance / Washing" position,
keeping it balanced and raised.
