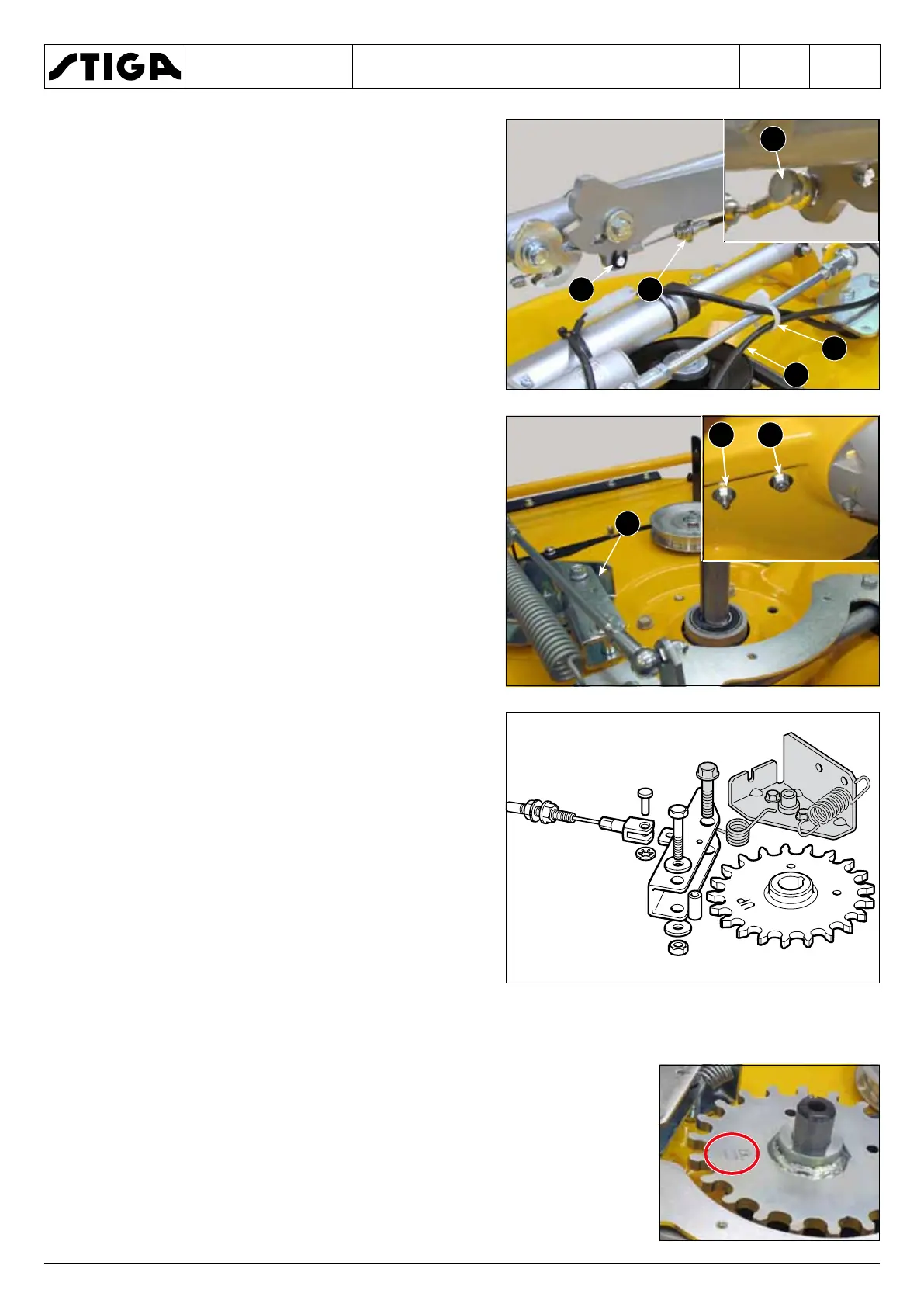

6. Remove the cable clamp (10) to allow the ca-
ble to be extracted (9).
7. Loosen the adjuster (11), remove the retaining
ring (12), extract the pin (13) and remove the
cable (9).
8. Unscrew the nuts (14) on the inside of the cut-
ting deck and remove the entire support as-
sembly (15).
9. Remove all the parts of the assembly, keeping
the pieces highlighted in grey in the drawing,
so they can be used again.
10. Recompose the assembly with the contents
of the kit and the retained parts.
To reassemble, follow the operations from 8 to 3 in the reverse order,
taking care to:
• Fit the new crown with the «UP» marking facing upwards.
• Reinstate the spring (5) and the cable clamp (10).
