Stihl BGA 86 Service Manual

BGA 86 11

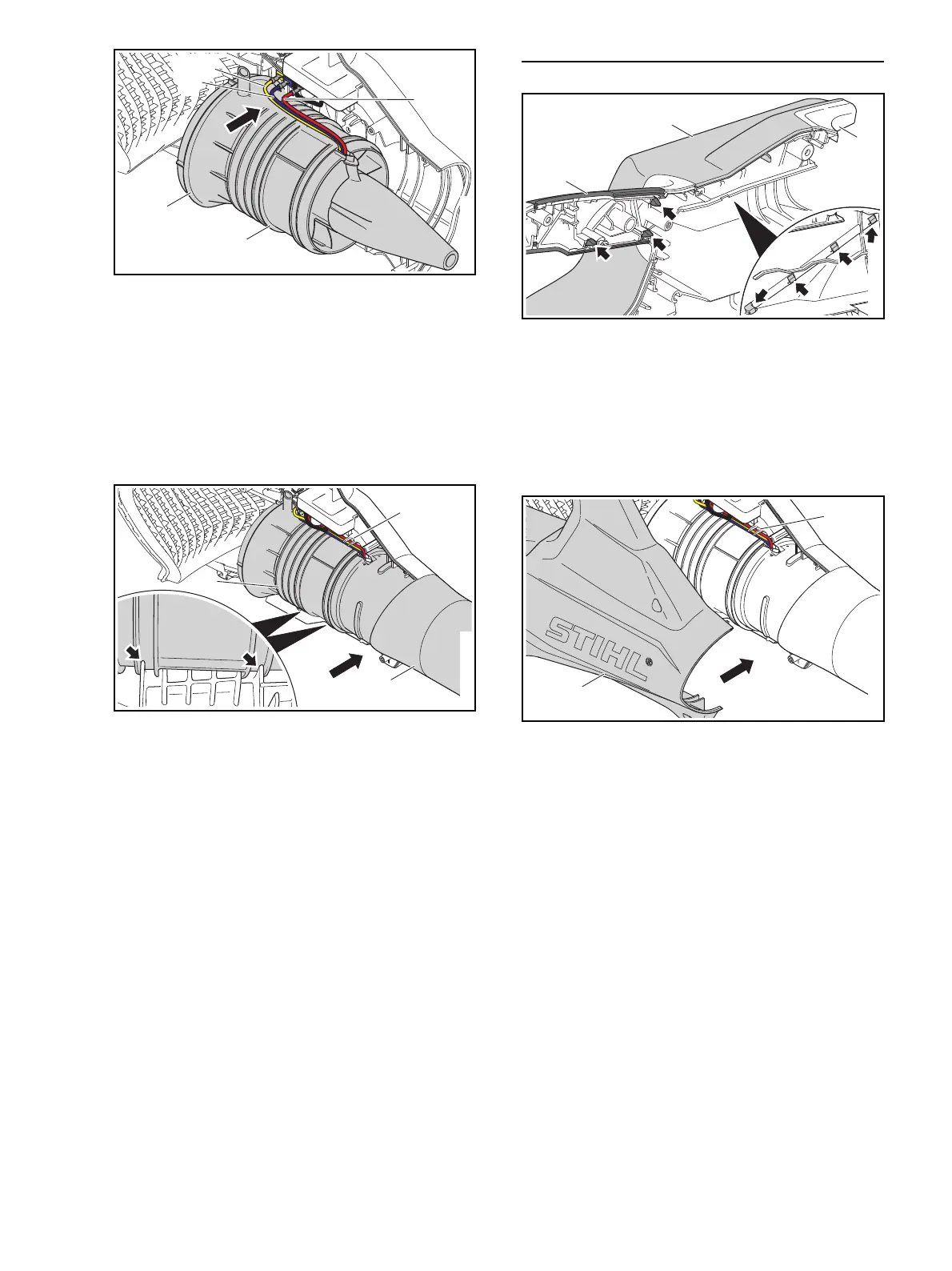

N Position blower (12) with inlet cone (13) on the left
handle housing.
N Insert blade terminal of yellow wire (15) in the yellow
receptacle (YE).
N Insert blade terminal of blue wire (16) in the blue
receptacle (BU).
N Insert blade terminal of red wire (17) in the red
receptacle (RD).
N Install the blower tube, @ 6.9.
N Place the blower (12) with blower tube (5, 6) in the
guides (arrows) on the left handle housing.
N Check position of motor wires. The wires must be
under the guide lugs (18).
N Install right handle housing, @ 6.11.
6.11 Installing the Right Handle Housing
N Push the cover (10) into the guides on the handle
housing (11) until the locking tabs (arrows) snap into
place.
N Push the handle molding (9) against the handle
housing (11) until the locking tabs (arrows) snap into
place.
N Fit the soundproofing (7) so that its cutouts engage
the tabs on the handle housing (11).
N Fit the right handle housing (11) and check that no
wires are pinched. The motor wires must be under the
guide lugs (18).
N Insert and tighten down the screws (8) firmly.
N Check operation of controls, @ 7.9.
0000-GXX-B638-A0
13
17
12
15
16
0000-GXX-B639-A0
5
12
18
0000-GXX-8887-A0
9
10
11
0000-GXX-8889-A0
11
18

Stihl BGA 86 Specifications

General

Type	Handheld blower
Power	- W
Airspeed	248.4 km/h
Working type	Blowing
Product color	Black, Orange, White
Working technology	Electric
Battery voltage	36 V

Weight and Dimensions

Weight	2800 g
