Stihl BGA 86 Service Manual

BGA 8612
7.1 Removing the Ergo Lever
N Preparations, @ 2.4.
N Remove right handle housing, @ 6.2.
N Remove the lever (9).
N Remove the torsion spring (8).
7.2 Removing the Trigger
N Remove the ergo lever (9), @ 7.1.
N Take the switch housing (2) with switch (1) out of its
seat and put it to one side.
N Remove the torsion spring (7).
N Remove the trigger (6).
7.3 Removing the Retaining Latch
N Remove the ergo lever (9), @ 7.1.
N Remove the trigger (6), @ 7.2.
N Remove the torsion spring (4).
N Remove the retaining latch (3).
N Pull the flat spring (5) out of its guide.
7.4 Removing Battery Locking Levers
N Take the locking levers (10) and flat springs out of the
left handle housing.
7.5 Installing Battery Locking Levers
N Push locking levers (10) and flat springs into the
bores in the left handle housing and fit the flat springs
in their seats (arrows) at the same time. The locking
levers (10) are pretensioned.

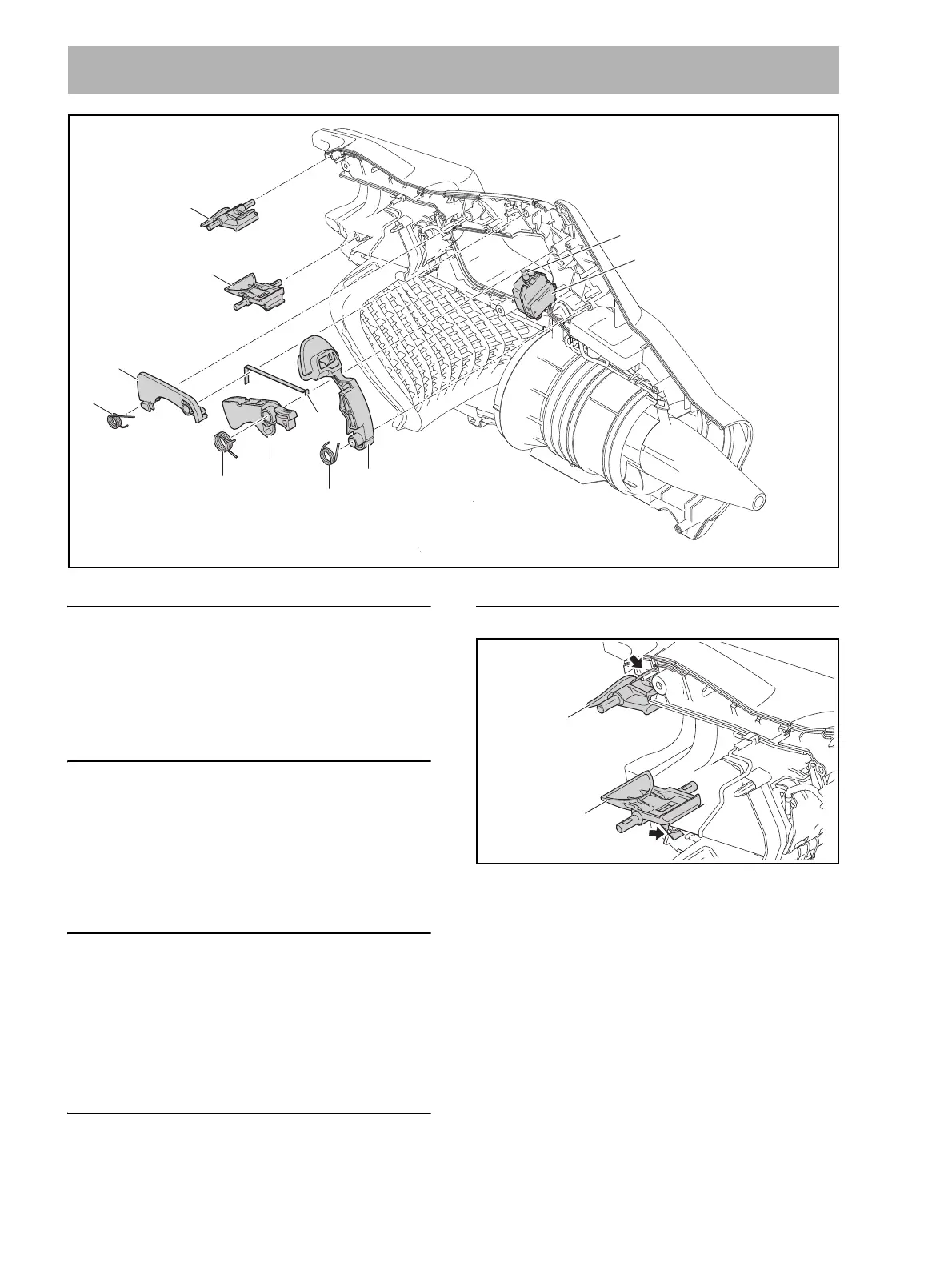

7Controls
0000-GXX-8882-A0
2
1
10
10
9
8
7
6
4
3
5
0000-GXX-8890-A0
10
10
