Stihl FC 75 - Rewind Spring Service; Rewind Spring Replacement; Rewind Spring Tensioning

Refertomanual"Troubleshooting,
standardrepairs"fortroubleshoo-
tingprocedures.
-Removestartercover,see6.2.
-Afterremovingtheroperotor,
seemanual"Troubleshooting,
standardrepairs",removethere-
mainingpiecesofspringfrom
theroperotorandstartercover.

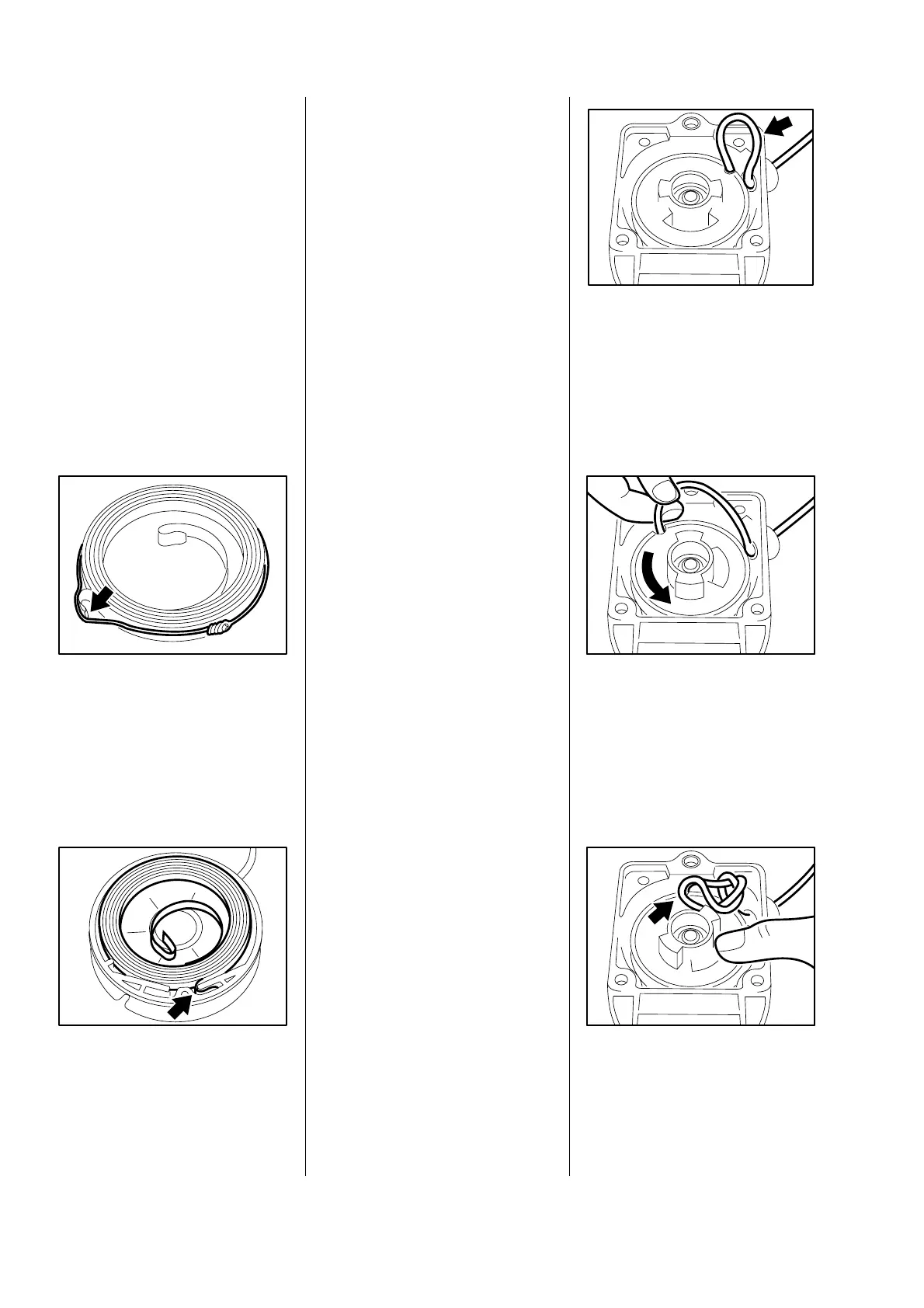

Note:Thereplacementspringis
suppliedreadyforinstallationand
issecuredbyawireretainer.
-Itshouldbelubricatedwithafew
dropsofSTIHLspeciallubricant-
see13.2-beforebeinginstalled.
•
Inserttherewindspringsothat
theouterlooplocatesintheright-
handrecess(whenlookingdown
ontotherecesses).
Theloopslipsoffwhenthe
springisinstalled.
Important!Therewindspringmay
popoutifnotinstalledcorrectly.
-Refertothemanual"Trouble-
shooting,standardrepairs"ifthe
rewindspringpopsout.
-Installroperotor,seemanual
"Troubleshooting,standard
repairs".
-Tensionrewindspring,see6.3.2.
-Installstartercover,see6.2
•
Formthestarterropeintoaloop.
-Pressstarterropeintonotchon
roperotor.
•
Griptheropeclosetotherotor
anduseittoturntheroperotor
sixfullturnscounterclockwise.
•
Holdtheroperotorsteady.
•
Pulloutthetwistedropewiththe
startergripandstraightenitout.
6.3 Rewindspring 6.3.2 Tensioning
6.3.1 Replacement
392RA076
VA
392RA073
VA
392RA075
VA
392RA074
VA
366RA122 VA
28
