Stihl FC 75 - Starter Grip Information; Starter Carrier and Pawl

Thestartergripissuppliedwith
starterrope.

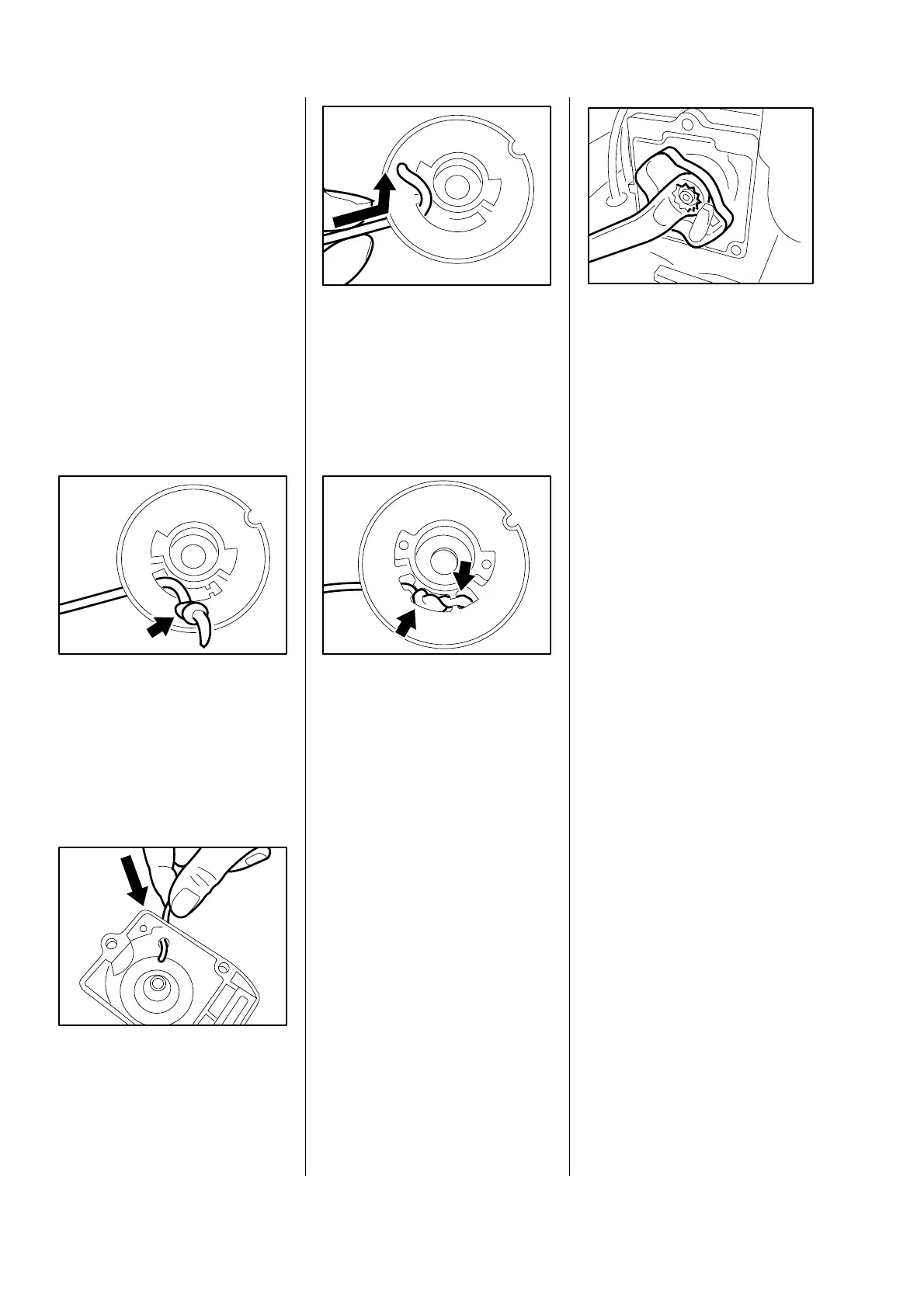

-Removestartercover,see6.2.
-Removeroperotor,seemanual
"Troubleshooting,standard
repairs".
-Pullknotoutofcompartmentin
roperotor.
•
Undoknotandpullstarterrope
outofroperotorandstarter
cover.
•
Threadnewstarterropethrough
ropeguidebushfromtheoutside.
•
Threadstarterropeintoholein
sideofroperotor.
-Securestarterropewithasimple
knot.
•
Pullstarterropebackuntilknot
liesincompartmentinroperotor.
•
Pressendofropeintolocating
slot.
-Installroperotor,seemanual
"Troubleshooting,standard
repairs".
-Tensionrewindspring,see6.3.2.
-Installstartercover,see6.2.
-Blockpistonwiththeaidofthe
lockingstrip,see3.1.
-Removestartercover,see6.2.
•
Unscrewstartercarrierfrom
crankshaftstub.
-Removepawl,seemanual"Trou-
bleshooting,standardrepairs".
-Screwonstartercarrierand
tightentoatorqueof20Nm.
-Installstartercover,see6.2.
-Pulloutlockingstrip.
-Screwinsparkplugandtighten
toatorqueof20Nm.
-Reconnectsparkplugterminal.
-Refitshroud.
392RA082
VA
392RA080
VA
392RA081
VA
392RA079
VA
392RA078
VA
6.5 Startergrip(ElastoStart) 6.6 Startercarrier/pawl
30
