Throttlecablewithoneshort-
circuitwire
-Removethrottletrigger,see7.1.
•
Liftcontactspring(1)upslightly
andremovethrottlecable(2).
•
Unhookcontactspringfrompivot
pin(1)andstudbolt(2).
•
Unscrewstudbolt(1)onslide
control.
•
Removedetentspring(2).
•
Pullslidecontroloutofhandle
moulding.
Thepartsareassembledinrever-
seorder.
-Thecontactspringmustbeinser-
tedcorrectlyintheoutergroove
aroundthestudbolt.
Throttlecablewithtwoshort-
circuitwires
-Refertothemanual"Trouble-
shooting,standardrepairs"with
regardtochangingthethrottle
trigger,interlocklever,contact
springanddetentspring.

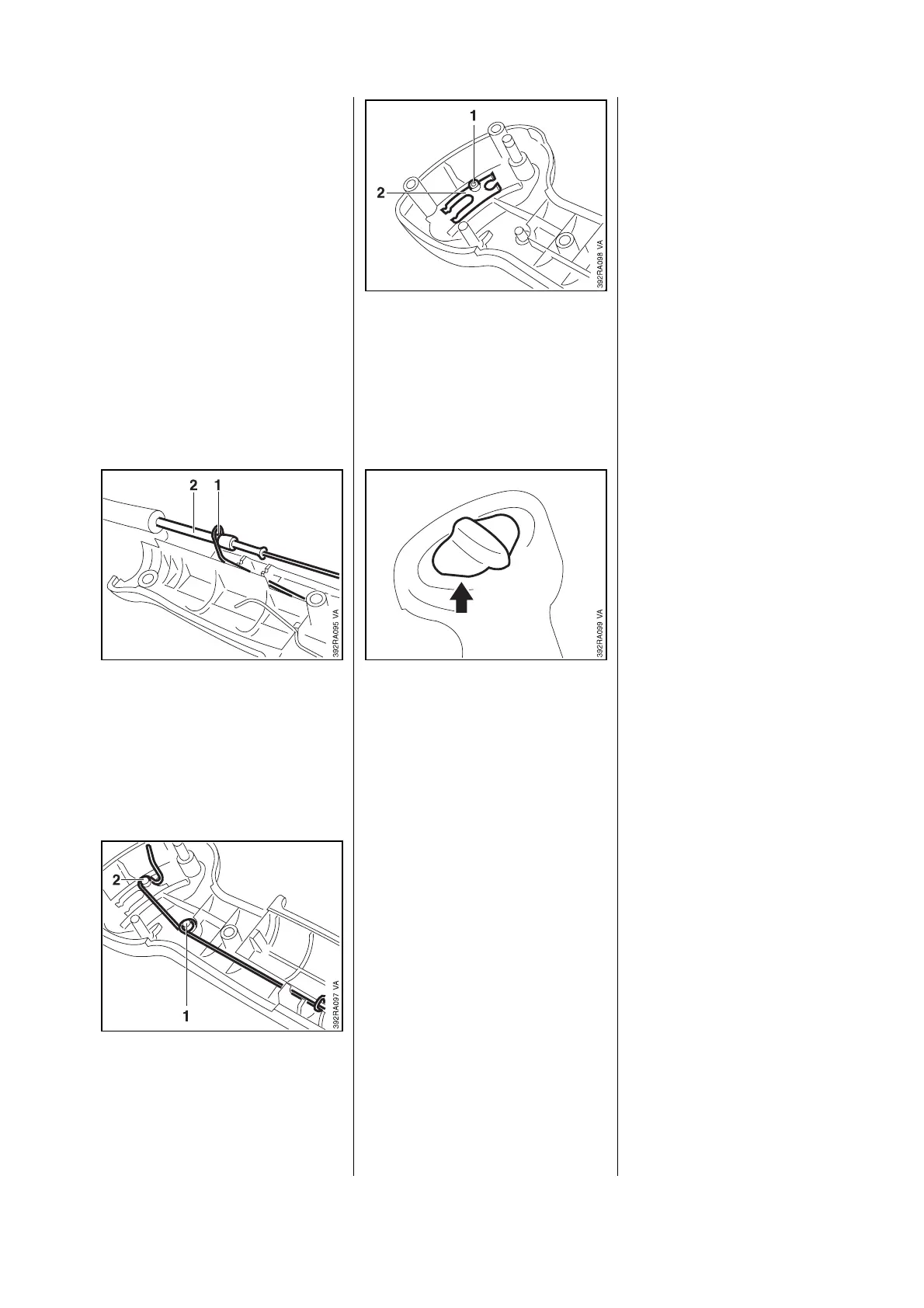

7.3 Contactspring/detentspringincontrolhandle 7.4 Throttletrigger/
interlocklever
33
