Looped handle with handle hose
•

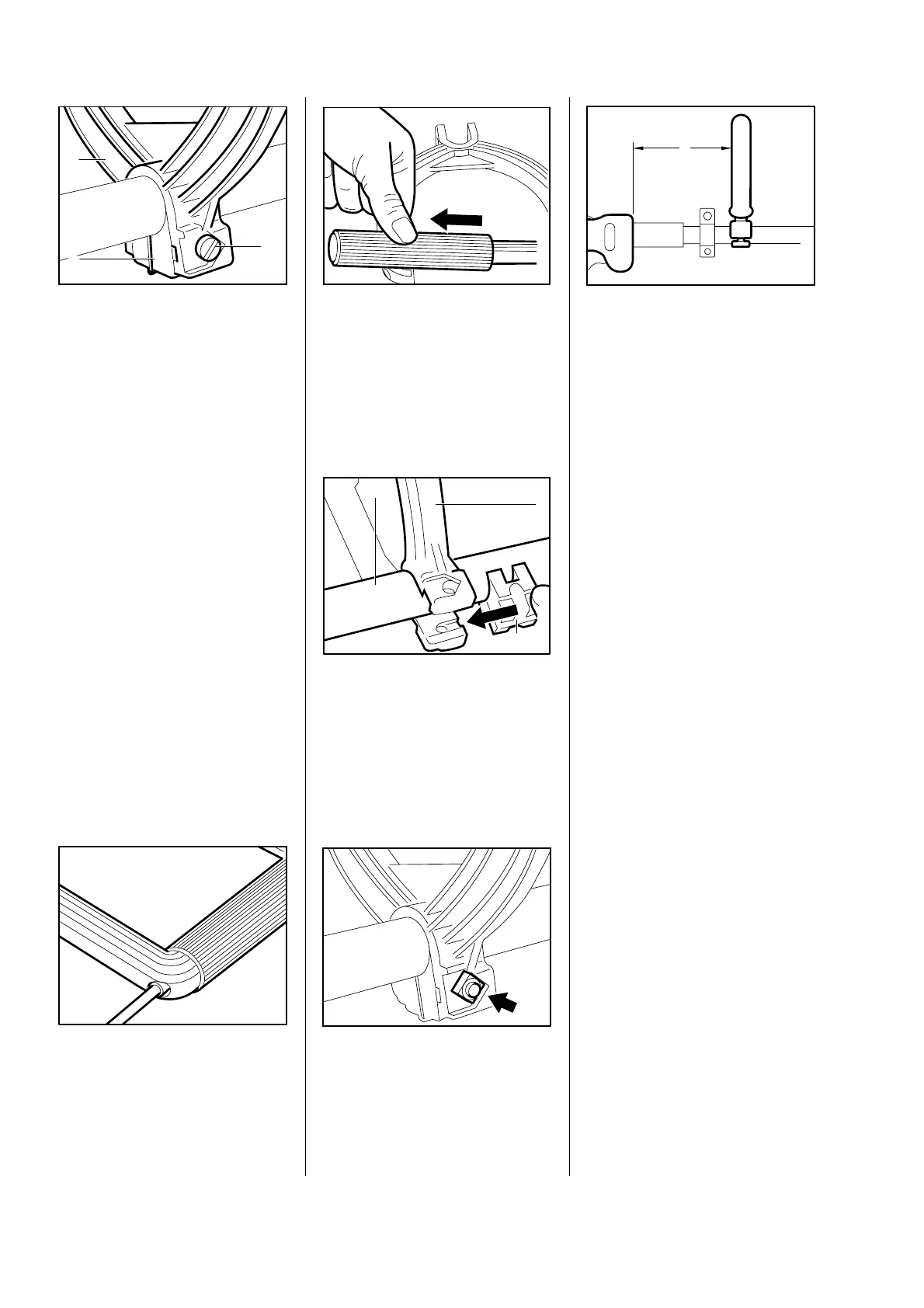

Remove screw (1).
•
Pull out clamping element (2).
•
Remove looped handle (3) from
protective tube.
•
Remove screw to replace handle
hose.
•
Turn upper part of looped handle
a little to the side and pull off
handle hose.
•
Position looped handle (1) on
protective tube (2).
•
Position clamping element (3) on
protective tube and slide it into
the looped handle.
•
Insert square nut.
- Introduce bolt and tighten slightly.
•
Line looped handle up at a
distance A = 15 cm in front of
control handle and secure it in
position.
