Stihl FS 50 Service Manual

18 Series 4144 Components FC, FS, KM

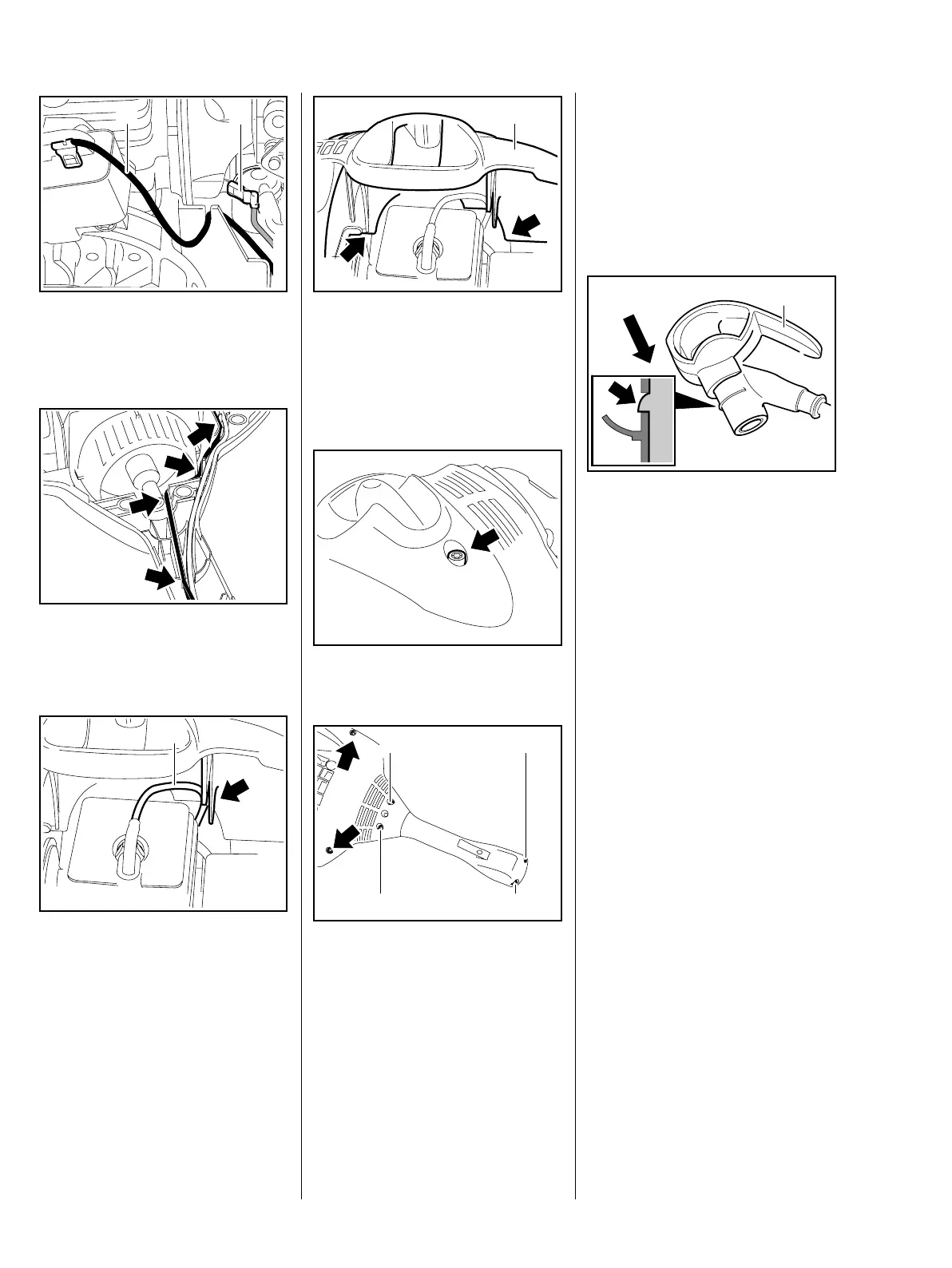

: Push short circuit wire (1) and
ground wire (2) firmly onto the
connector tags.
The short circuit and ground wires
must be properly seated in the
guides (arrows).
The ignition lead (1) must be inside
the web (arrow) when the shroud is
fitted.
545RA045 TG
1
2
545RA062 TG545RA047 TG
1
: Place the shroud (1) in position
behind the air baffle (arrows).
– Push the shroud (1) down until it
engages the locking tabs.
: Fit the screw (arrow).
– Turn the machine over.
: Insert screws (arrows) and
tighten them down firmly.
545RA048 TG
1
545RA054 TG
1
545RA049 TG
1
11
: Insert the screws (1)
– do not tighten them down yet.
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.4
: Push on the protective cap (1) as
far as stop.
– Make sure the lug on the spark
plug boot (arrow) engages.
545RA290 TG
1

Stihl FS 50 Specifications

General

Engine Displacement	27.2 cc
Power Output	0.8 kW
Engine Type	2-stroke
Shaft Type	Straight
Starter System	Recoil
Overall Length	147 cm
Vibration Level	4.5 m/s²
