75Series 4144 Components FC, FS, KM

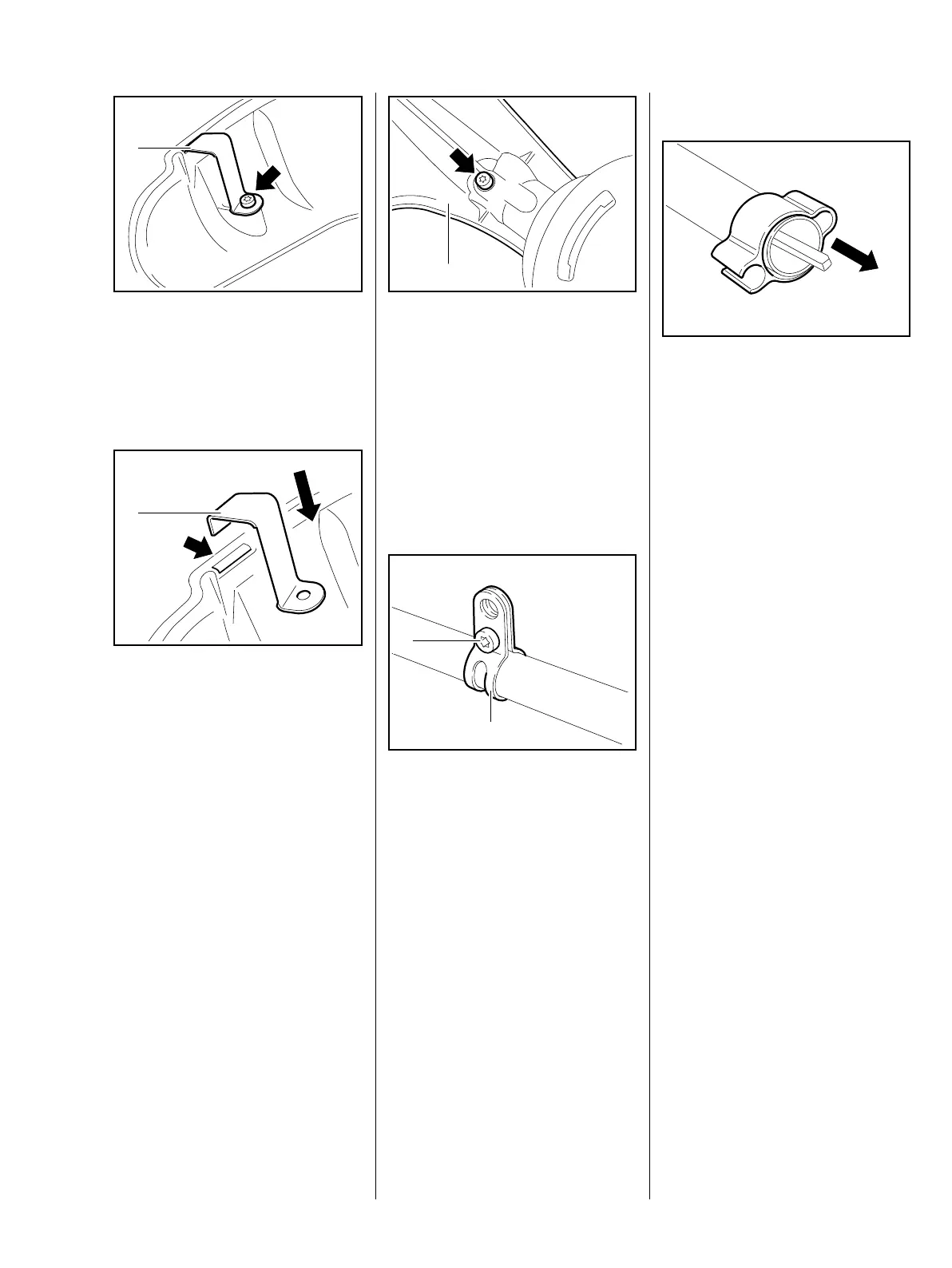

: Take out the screw (arrow).
Remove the line limiting blade
(1), check and sharpen or replace
as necessary.
: Push the line limiting blade (1)
into its seat (arrow).
Insert screw and tighten it down
firmly.
To avoid stripping the thread in the
plastic housing, carefully locate
screw in existing thread and tighten
in down.
Check the gearbox, repair or
replace as necessary – see
"KombiTools" service manual.
1
545RA270 TG
1
545RA009 TG
Locate deflector (1) against the
gearbox.
: Insert screw (arrow) and tighten it
down firmly.
Reassemble all other parts in the
reverse sequence.
9.2.3 One-part Carrying Ring
: Take out the screw (2), bend
open the clamp (1) and remove it.
Reassemble in the reverse
sequence.
1
545RA269 TG
2
1
545RA271 TG
9.2.4 Retainer
Remove the drive tube, b 9.1
: Pull off the throttle cable retainer.
Reassemble in the reverse
sequence.
9.3 Gearbox
Refer to "KombiTools" service
manual for descriptions of servicing
procedures on the gearbox.
545RA272 TG
