Stihl FS 50 Service Manual

26 Series 4144 Components FC, FS, KM

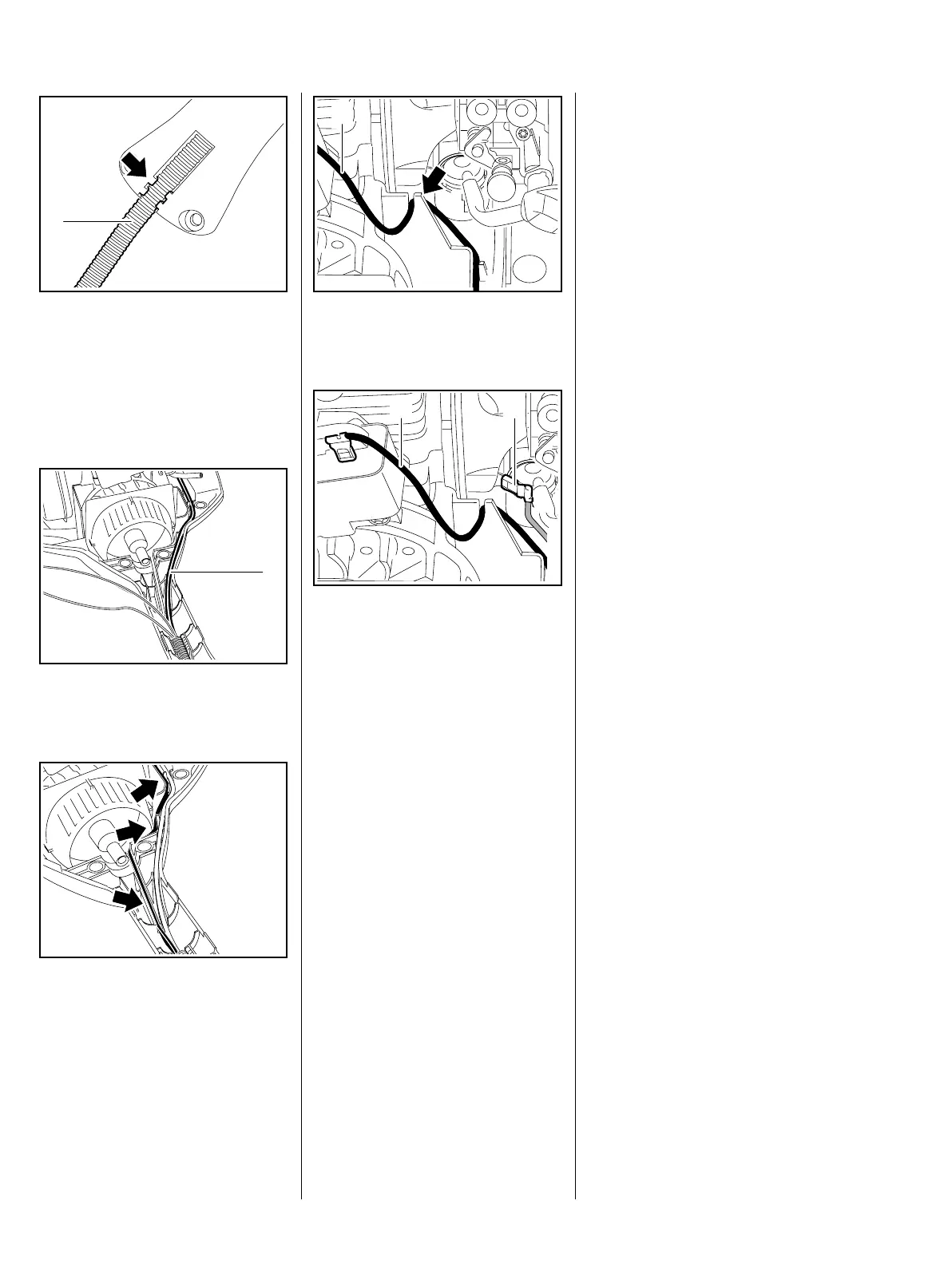

– Position the protective tube (1)
against the engine housing.
: Press the protective tube (1) into
its seat (arrow) as far as stop – it
is now secure.
: Install the throttle cable (1),
readjust if necessary, b 8.6.1
: Push the short circuit into the
guides (arrows) first, then the
ground wire.
Lay the wires next to one another
without crossing over.
545RA281 TG
1
545RA093 TG
1
545RA094 TG
: Fit the short circuit wire (1) in the
guide (arrow).
: Push short circuit wire (1) and
ground wire (2) firmly onto the
connector tags.
– Mount the control handle on the
handlebar, b 7.5
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.4
– Check operation.
545RA071 TG
1
545RA045 TG
1
2
5.9.4 Ground Wire
A faulty ground wire may impair or
prevent operation of the short circuit
wire.
The ground wire is fitted together
with the short circuit in the
protective tube and must be
replaced if damaged.
– Check for contact and continuity
and replace ground wire if
necessary, b 5.9.1
