Stihl FS 50 Service Manual

33Series 4144 Components FC, FS, KM

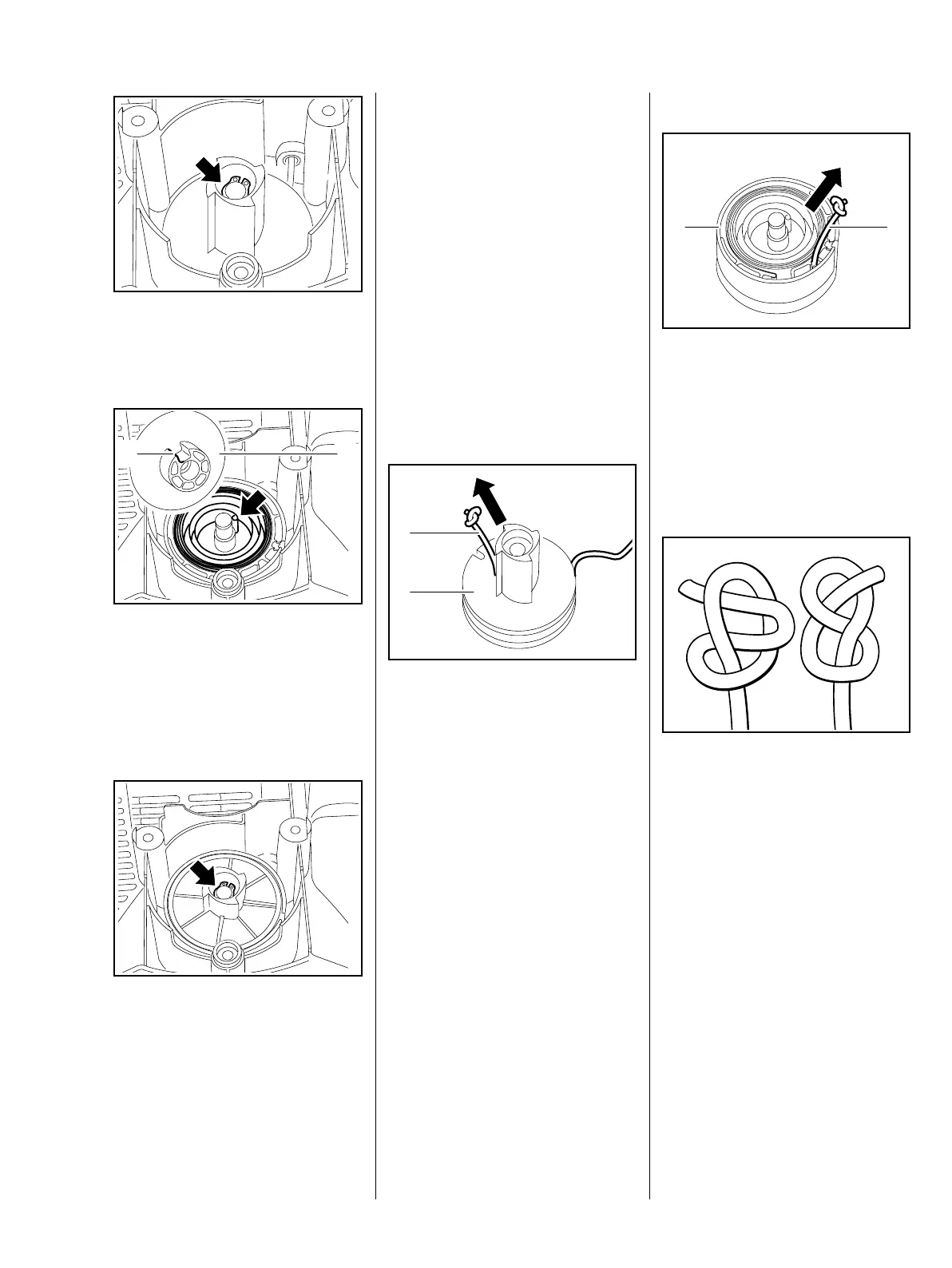

: Fit the E-clip (arrow).
Models with ErgoStart
: Fit the carrier (2) on the starter
post so that the ErgoStart's inner
spring loop (arrow) engages the
recess (1).
– Push the carrier (2) into position.
: Fit the E-clip (arrow).
– Tension the rewind spring, b 6.6
– Reassemble all other parts in the
reverse sequence.
545RA284 TG545RA111 TG
1 2
545RA112 TG
6.5 Starter Rope / Grip
– Remove the rewind starter,
b 6.2
– Relieve tension of rewind spring,
b 6.6
The system will not be under
tension if the starter rope is broken.
– Remove the rope rotor, b 6.4
– Remove remaining rope from the
rope rotor and starter grip.
Do not shorten the starter rope.
: Push the end of the starter rope
(1) out a little and undo the knot.
– Pull the starter rope (1) out of the
rotor (2).
545RA113 TG
1
2
Models with ErgoStart
: Push the end of the starter rope
(1) out a little and undo the knot.
– Pull the starter rope (1) out of the
rotor (2).
Machines with standard starter
grip
– Pull the rope out of the starter
grip.
: Tie one of the special knots
shown in the end of the rope.
545RA114 TG
2 1
165RA227 TG

Stihl FS 50 Specifications

General

Engine Displacement	27.2 cc
Power Output	0.8 kW
Engine Type	2-stroke
Shaft Type	Straight
Starter System	Recoil
Overall Length	147 cm
Vibration Level	4.5 m/s²
