18 MS 440, MS 440 C
– Remove the chain sprocket cover
and guide bar – b 5.1
– Remove the clutch – b 5.3

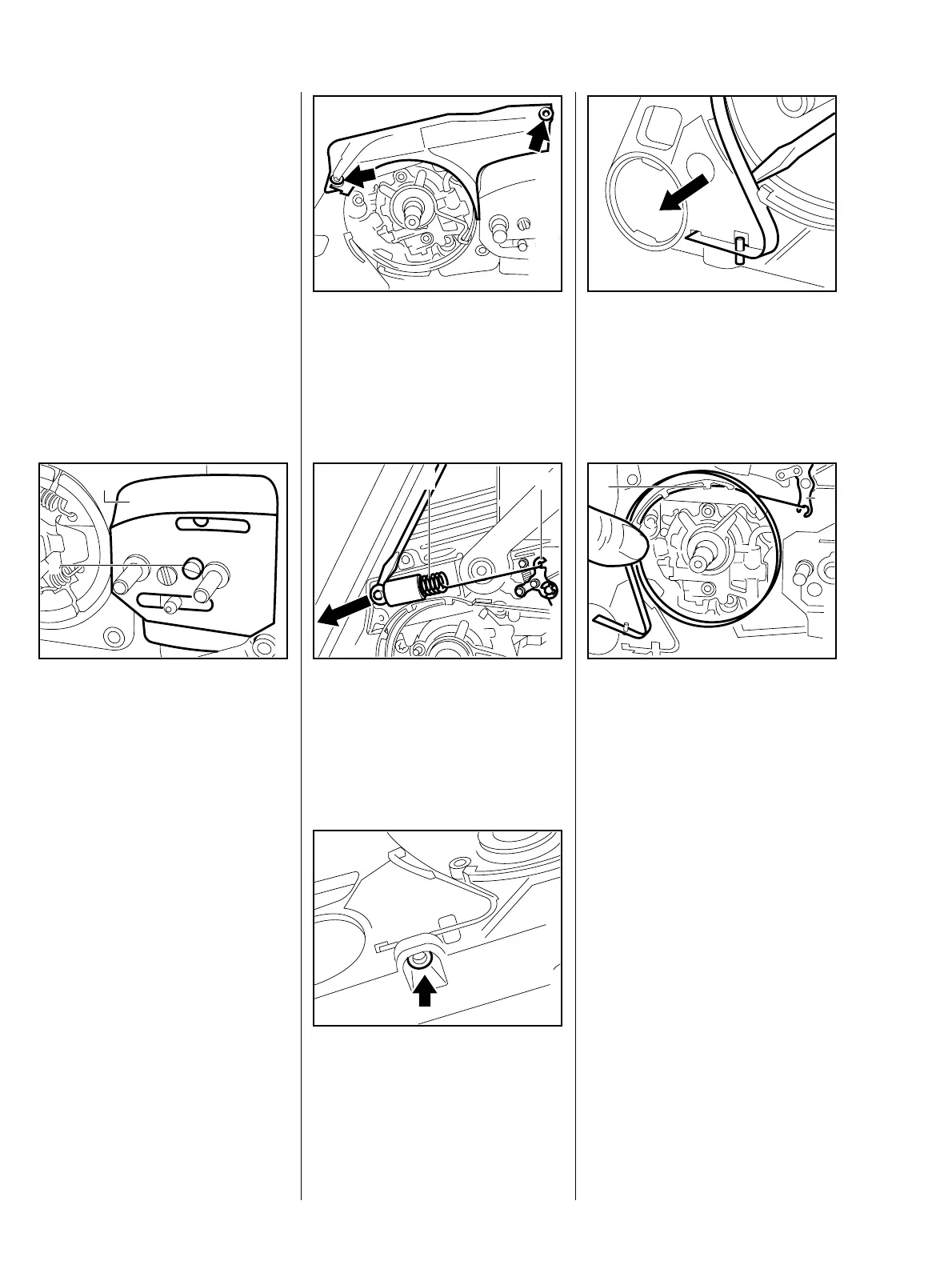

: Take out the screw (1) of the
inner side plate (2) and remove
the side plate.
– Engage the chain brake by
pushing the hand guard away
from the front handle.
VA
138RA004
1
2
: Take out the screws (arrows).
– Remove the cover.
– Release the brake spring by
pushing the hand guard
forwards.
VA
175RA002
: Carefully ease the brake
spring (1) off the anchor pin and
remove it from the bell crank (2).
VA
176RA027
1 2
: Take out the screw (arrow) on the
brake band.
VA
176RA028
: Ease the brake band out of the
engine housing.
VA
176RA029
: Remove the brake band from the
stubs (1) on the crankcase.
: Unhook the brake band from the
bell crank (2).
VA
175RA003
1
2
