59MS 440, MS 440 C

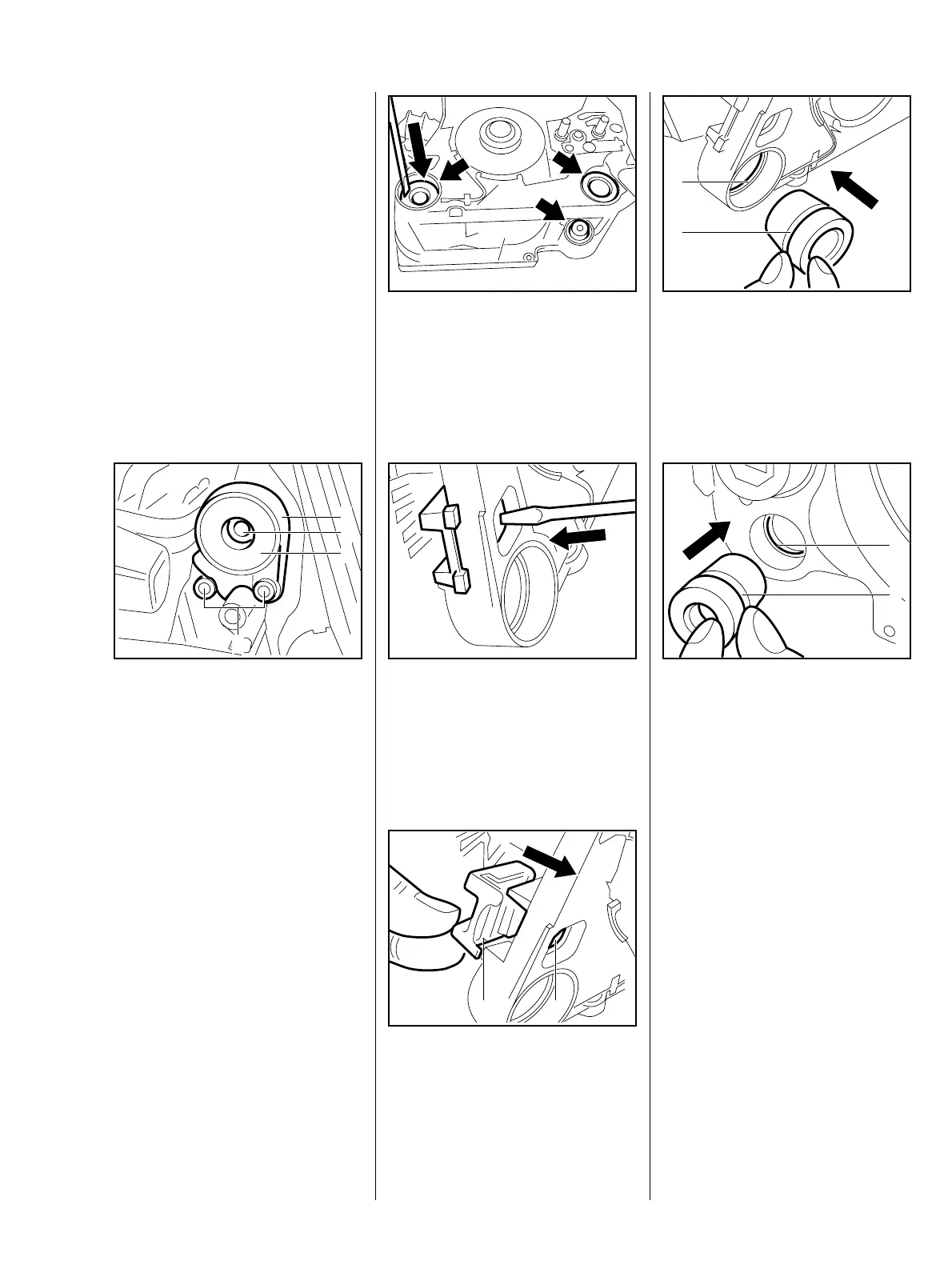

The handle and engine housing are
connected by vibration-damping
annular rubber buffers. Damaged
rubber buffers (annular buffers)
must be replaced.
– Remove the air filter – b 12.2.1
– Remove the shroud – b 6.4
: Take out the screw (1).
: Remove the sleeve (2).
: Take out the screws (3).
: Remove the annular buffer (4).
VA
176RA195
3
2
1
4
The tank housing must be removed
in order to remove the other annular
buffers – b 12.8
: Pry the annular buffers (arrows)
out of the two halves of the
crankcase.
VA
176RA196
: Drive the stop buffer out of its
mount and remove it.
VA
176RA197
: Press the stop buffer into the
guide until the circumferential
groove (1) engages the housing
rib (2).
VA
176RA198
1 2
: Press the annular buffer on the
clutch side in from the outside
until the circumferential
groove (1) engages the housing
rib (2).
VA
176RA199
2
1
: Press the annular buffer on the
starter side in from the outside
until the circumferential
groove (1) engages the housing
rib (2).
Reassemble the other parts in
reverse order.
VA
176RA200
2
1
9. AV handle system
