Stihl MS 440 Service Manual

20 MS 440, MS 440 C

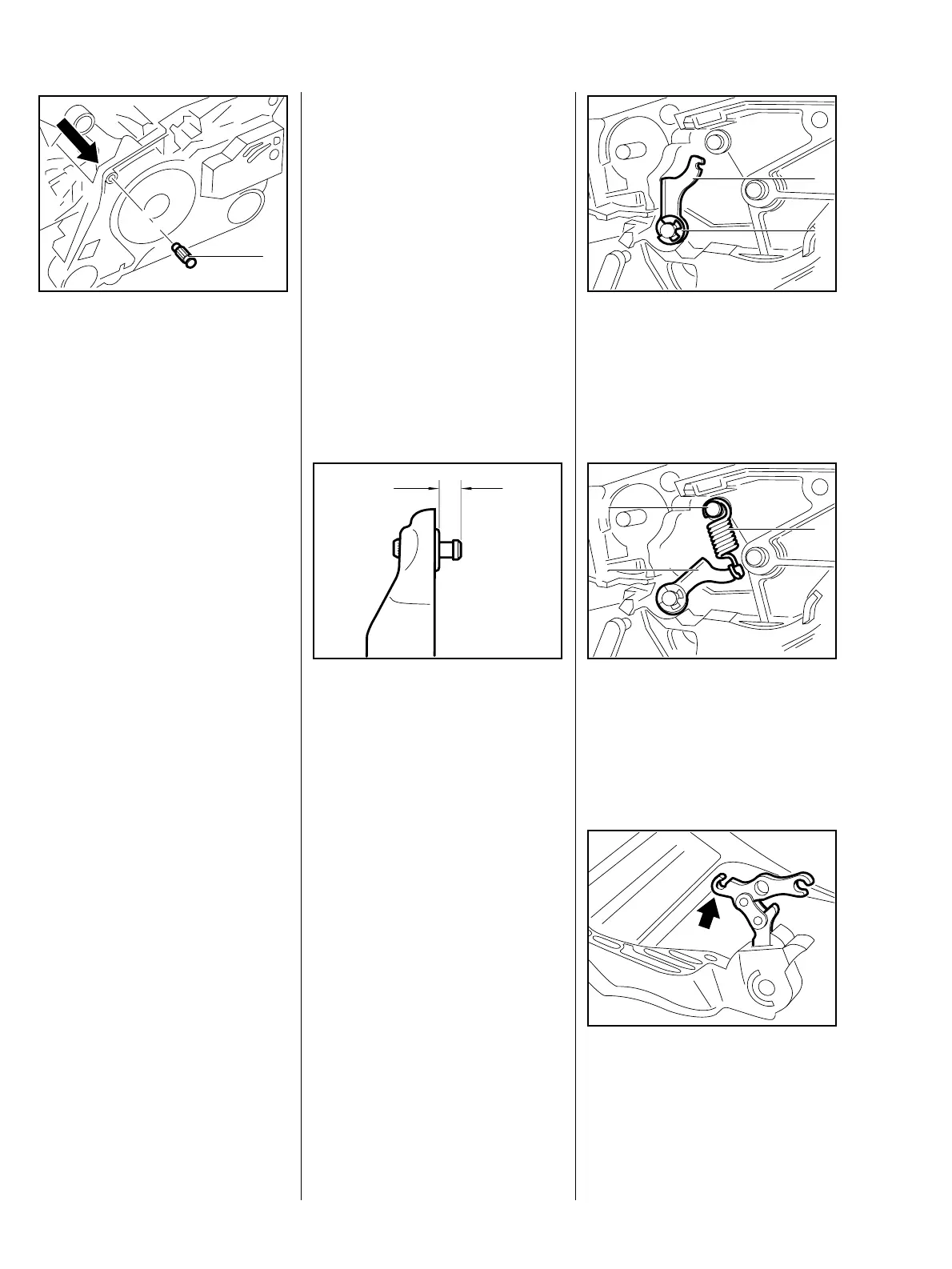

: Drive the pin (1) out of the
crankcase with a drift in the
direction indicated.
Do not drive out the pin in the other
direction as this would damage the
annular bead which was formed in
the crankcase bore when the pin
VA
176RA035
1
was originally installed. In such a
case neither the new anchor pin nor
the brake spring would locate
properly. Furthermore, the
crankcase could be damaged in this
way and possibly impair correct
operation of the chain brake.
– Before installing the new pin,
coat its knurled shank with
Loctite – b 16.
– Position the new pin in the bore
so that the knurling on the pin
meshes with the existing knurling
in the bore. Turn pin back and
forth as necessary.
: Carefully tap home the pin
squarely to obtain dimension "a"
(about 4.3–4.7 mm)
(0.17–0.19 in).
The pin must be driven home
absolutely square.
VA
176RA036
a
– Install the cylinder – b 6.5.2
– Coat all sliding and bearing
points with STIHL multipurpose
grease – b 16.
: Fit the cam lever (1).
: Fit the E-clip (2).
1
1
2
1
1
2
VA
176RA037
: Hook the spring (1) into the pivot
pin (2) and cam lever (3).
– Examine the reflector foil on the
hand guard and replace it if
necessary.
VA
176RA038
2
1
3
: Slide the bell crank into the
opening at the side of the hand
guard.
The short end of the lever (arrow)
faces the upper part of the hand
guard.
VA
176RA040
5.4.3 Installing
