88 MS 440, MS 440 C

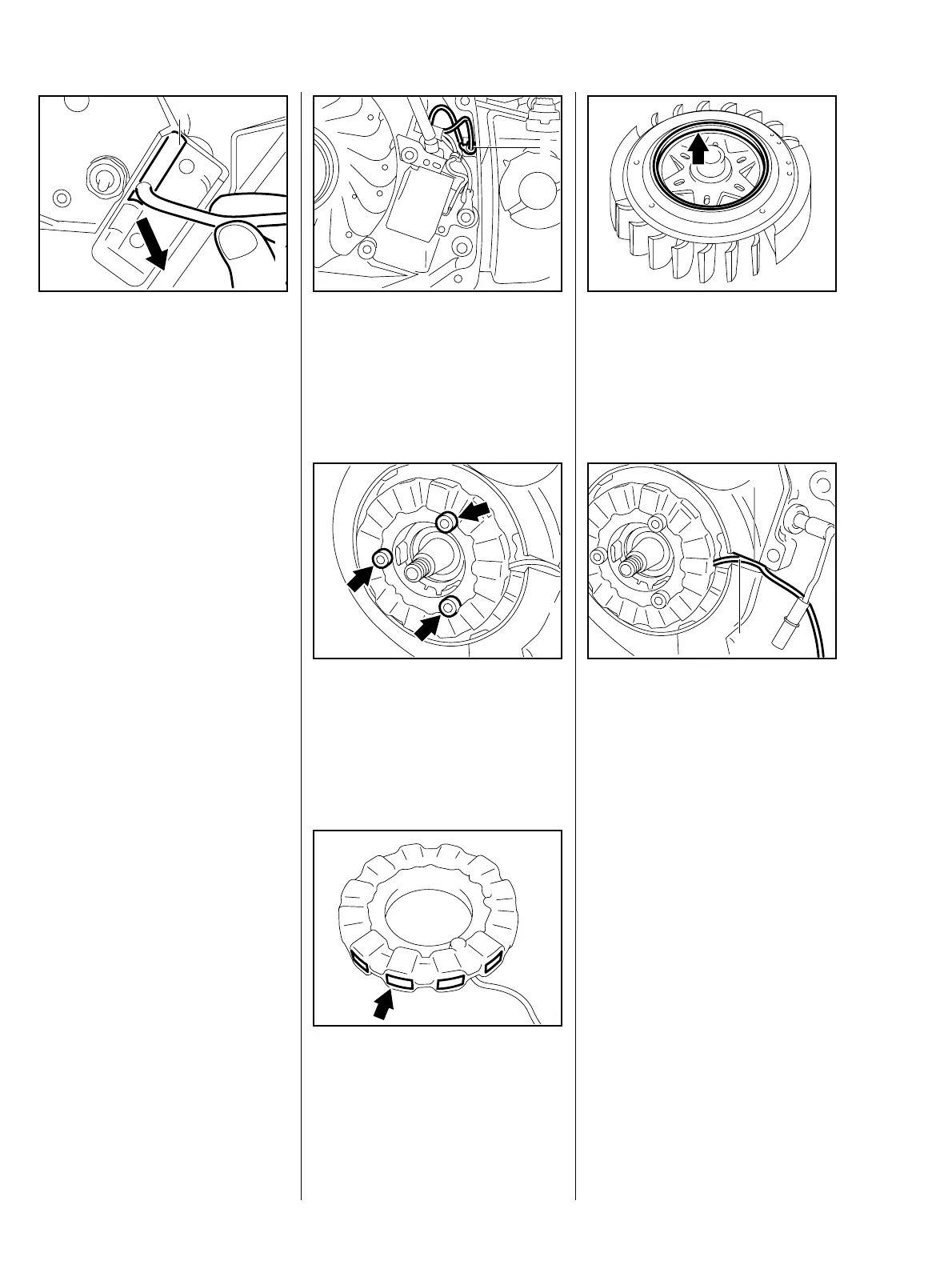

– Remove the front handle –
b 12.8
: Pull the connecting lead out of
the opening.
Reassemble in the reverse
sequence.
1
VA
176RA230
: Lay the connecting leads in the
recess (1) when fitting the front
handle.
– Remove the ignition module –
b 7.1.2
– Remove the flywheel – b 7.3
: Break the connection (1).
176RA099
1
VA
: Take out the screws (arrows).
– Remove the generator.
VA
176RA238
VA
: There must not be any cracks or
other signs of damage on the
generator and poles, otherwise
they must be replaced.
VA
176RA239
: There must not be any cracks or
other signs of damage on the
magnet ring (arrow) in the flywheel,
otherwise it must be replaced.
Reassemble in the reverse
sequence.
VA
175RA030
: Position the generator with the
connecting lead (1) facing the
housing.
: The connecting lead must be
located beside the recess (2) in
the housing.
176RA241
VA
1
2
– Secure the screws with
Loctite 242 – b 16.
– Tighten down the screws – b 3.5
Reassemble the remaining parts in
reverse order.
14.5 Generator

Stihl MS 440 Specifications

General

Displacement	70.7 cc
Chain Pitch	3/8"
Ignition system	Electronic
Starter	Recoil starter
Vibration reduction	Anti-vibration system
Weight (without bar and chain)	6.4 kg
Fuel tank volume	0.73 L
Oil Capacity	0.36 L
Guide Bar Length	40-63 cm
Guide Bar Length (recommended)	40-71 cm (16-28 in)
