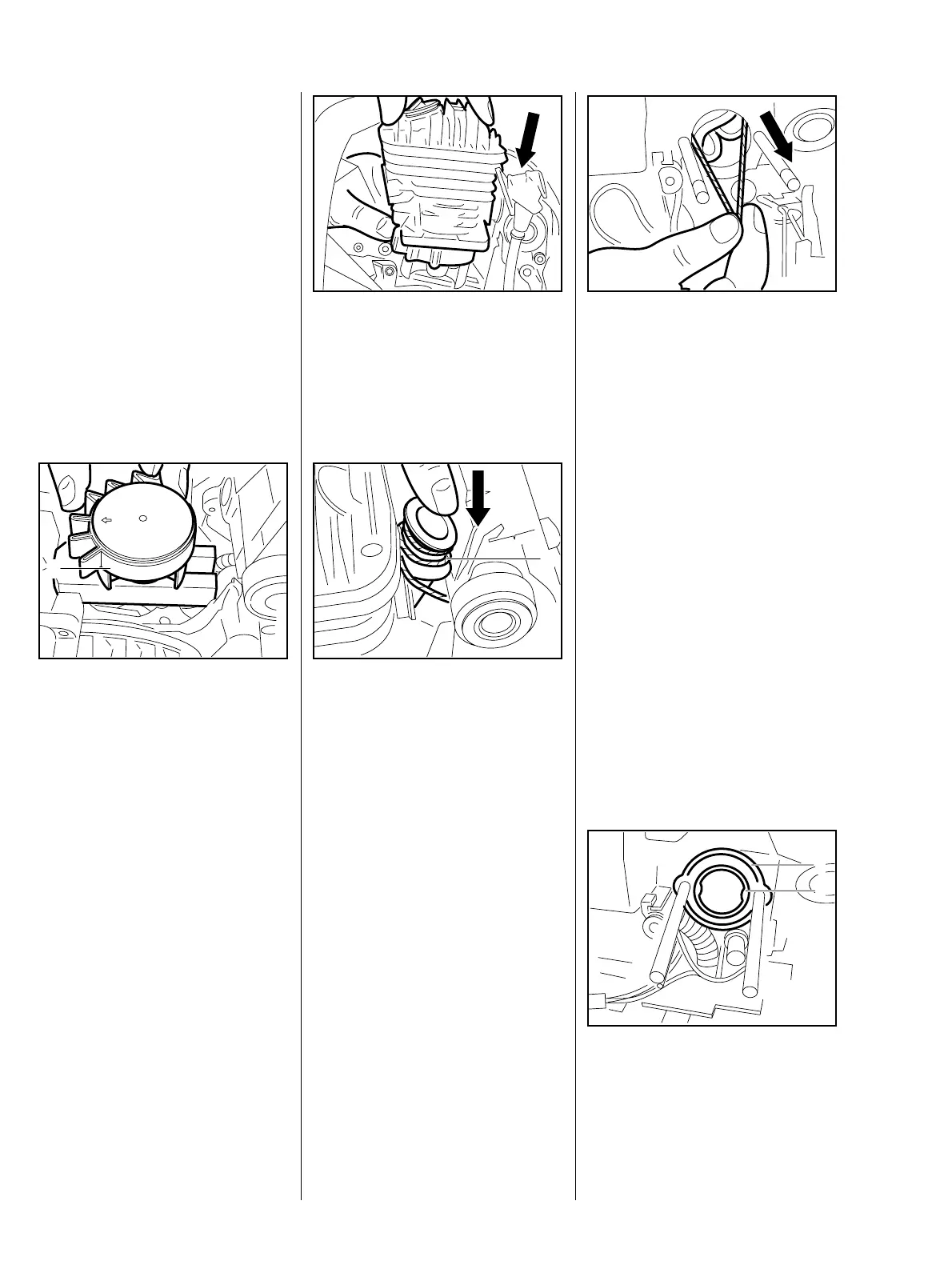

34 MS 440, MS 440 C
On clamps with spacer sleeve,
tighten the screw until the gap
between the two ends of the clamp
is 5 to 6 mm (0.17 to 0,24 in).
: Use the clamping strap (1)
0000 893 2600 to compress the
rings around the piston.
– Check correct installed position
of rings once again.
– Lubricate the inside of the
VA
1
176RA086
cylinder with oil and position it in
accordance with its subsequent
installed position
- ensure it does not break.
: Carefully slide the cylinder over
the piston, the clamping strap
moves downwards at the same
time.
– Remove the clamping strap and
wooden assembly block.
VA
176RA087
: To pull the manifold flange
through the intake opening in the
tank housing, wind a piece of
string (1) (about 15 cm
(5.90 in) long) around the back of
the flange and pass the ends of
the string through the intake
opening.
VA
176RA088
: Press the manifold down.
: Pull the ends of the string
outward.
The manifold flange is pulled
through the tank housing intake
opening without damaging the
manifold.
VA
176RA089
– Check that flange is properly
seated in the tank housing.
: Press the sleeve (1) into the
manifold.
: Fit the washer (2) on the stud
bolts.
VA
176RA066
1
2
