41MS 440, MS 440 C

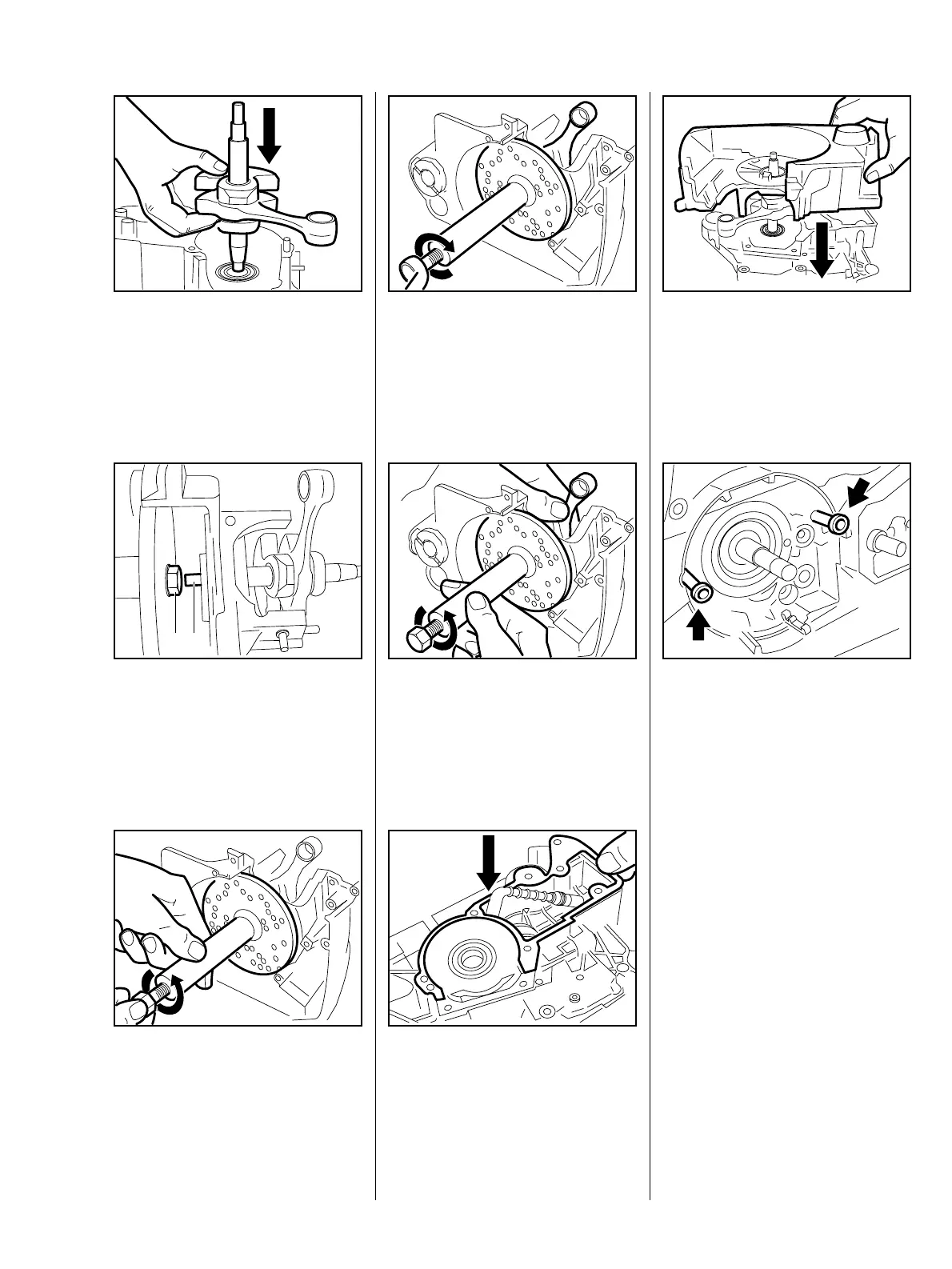

: Place tapered stub of crankshaft
in the flywheel side (ball bearing)
of the crankcase.
VA
176RA129
: Screw threaded sleeve (1) to
thread (2) on crankshaft stub.
VA
176RA130
21
: Hold the spindle steady and
rotate the service tool counter-
clockwise until the drilled plate
butts against the crankcase.
VA
176RA131
: Turn the spindle clockwise until
the crankshaft locates against the
ball bearing.
The connecting rod must point
toward the cylinder flange while the
crankshaft is being installed.
VA
176RA132
: Hold the crankshaft steady,
release the spindle counter-
clockwise and then unscrew the
service tool, also counter-
clockwise.
VA
176RA133
: Place new gasket on clutch side
of crankcase.
VA
176RA134
– Lubricate straight stub of
crankshaft with oil.
: Fit crankshaft stub in the ball
bearing.
VA
176RA135
: To prevent the crankcase
and gasket twisting, fit M5x72
screws (arrow) in two crankcase
holes and tighten them down as
far as stop.
– Screw the spindle (counter-
clockwise, left-hand thread) fully
VA
176RA136
into the service tool
AS 5910 890 2205.
