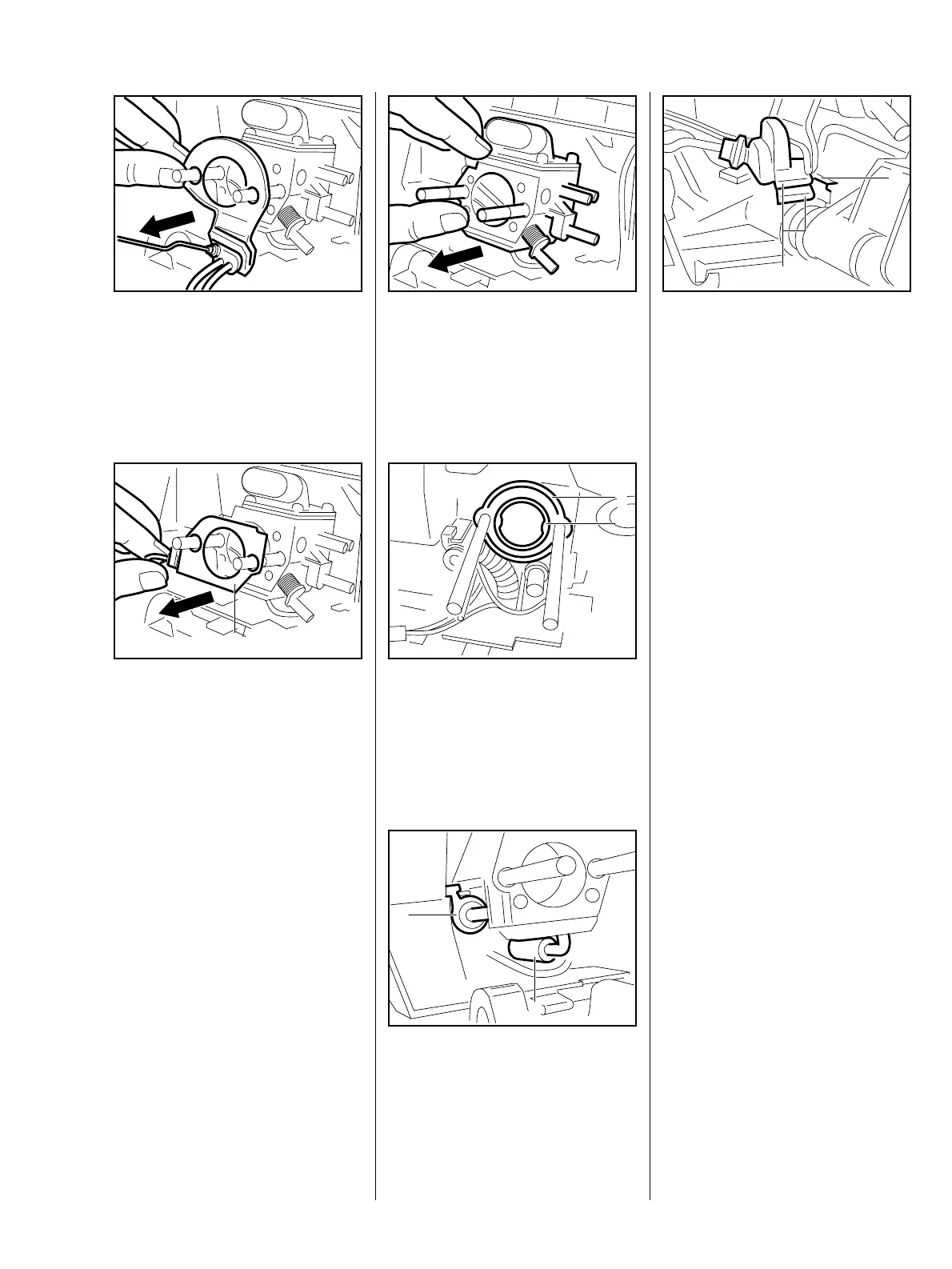

67MS 440, MS 440 C
: Pull off the baffle with grommet
and throttle rod.
VA
176RA258
Machines with carburetor heating
: Remove the heating element (1)
from the stud bolts.
– Unplug the lead to the
thermostatic switch – b 13.2
VA
175RA029
1
: Take out the carburetor.
Reassemble in the reverse
sequence.
VA
176RA260
: Ensure that the sleeve (1) and
washer (2) are fitted before
pushing the carburetor into
position.
VA
176RA261
: When pushing the carburetor into
position, make sure that the
impulse hose (1) and fuel
hose (2) are correctly seated.
1
2
VA
176RA262
: Insert the grommet so that the
rubber lips (1) are located inside
the edge (2).
Reassemble the other parts in
reverse order.
VA
176RA263
1
