78 MS 440, MS 440 C
– Use a size M6x18 screw for
attachment instead of the special
self-threading screw.
Reassemble in the reverse
sequence.

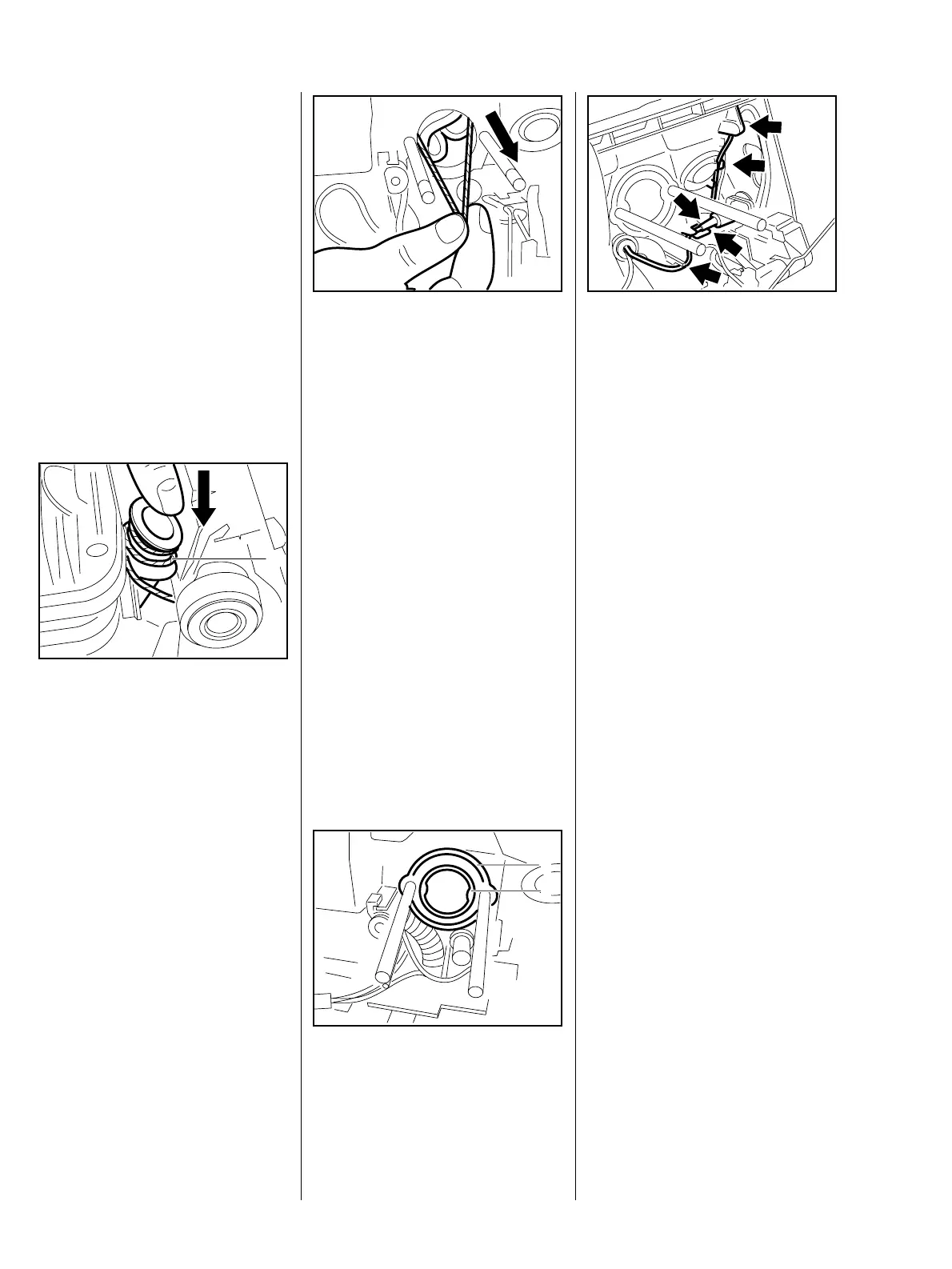

: To pull the manifold flange
through the intake opening in the
tank housing, wind a piece of
string (1) (about 15 cm (5.90 in)
long) around the back of the
flange. and pass the ends of the
string through the intake opening.
VA
176RA088
1
: Press the manifold down.
– Push the ends of the string
through the opening in the tank
housing.
: Pull the ends of string outwards.
In this way, the manifold flange is
fitted over the intake opening of the
tank housing without damaging the
manifold.
– Ensure that the flange is properly
VA
176RA089
seated in the tank housing.
: Mount sleeve (1) in manifold.
: Slide washer (2) onto the stud
bolts.
VA
176RA066
1
2
: Check that all wires are correctly
routed in the guides (arrows).
– Secure the screws of the front
handle with Loctite – b 16.
– Tighten down the screws –
b 3.5
VA
176RA313
Reassemble all other parts in the
reverse sequence.
