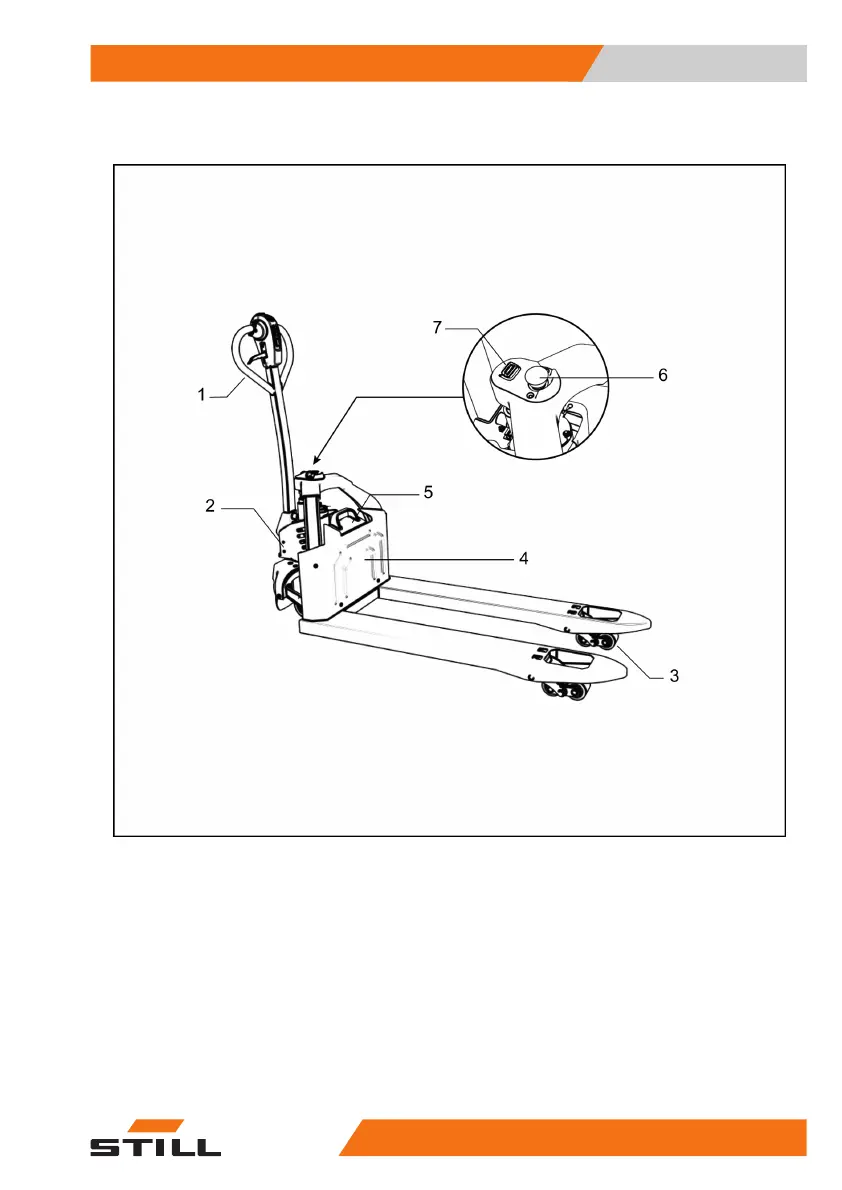

Overview of main components
Tiller
Hydraulics cowling
Rollers
Front protective panel
1
2
3
4
Battery
Emergency stop switch
Key
5
6
7
Views
3
Overview of main components
355001 801 1505 EN - 12/2019
