Still ECH 12 - Installing the Operating Handle

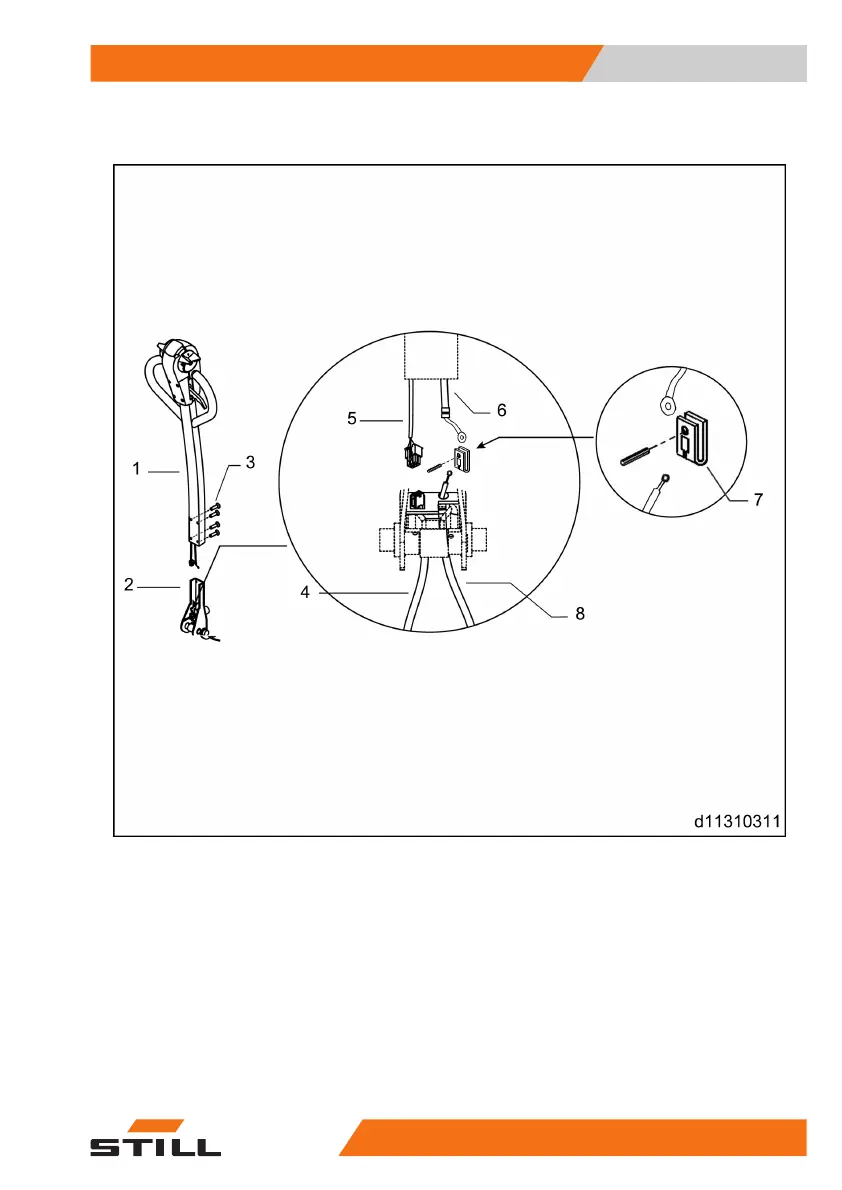

Installing the operating handle
Square operating tube
Mounting base
Screw (M6x10)
Control harness
1
2
3
4
Square tube harness
Wire
Bracket
Ball head wire
5
6
7
8
– Connect the square tube harness connector
to the control harness.
