– Loosen the six screws using a spanner,
then remove the drive wheel (5) from the
drive assembly (4).
– Refit in reverse order to removal.

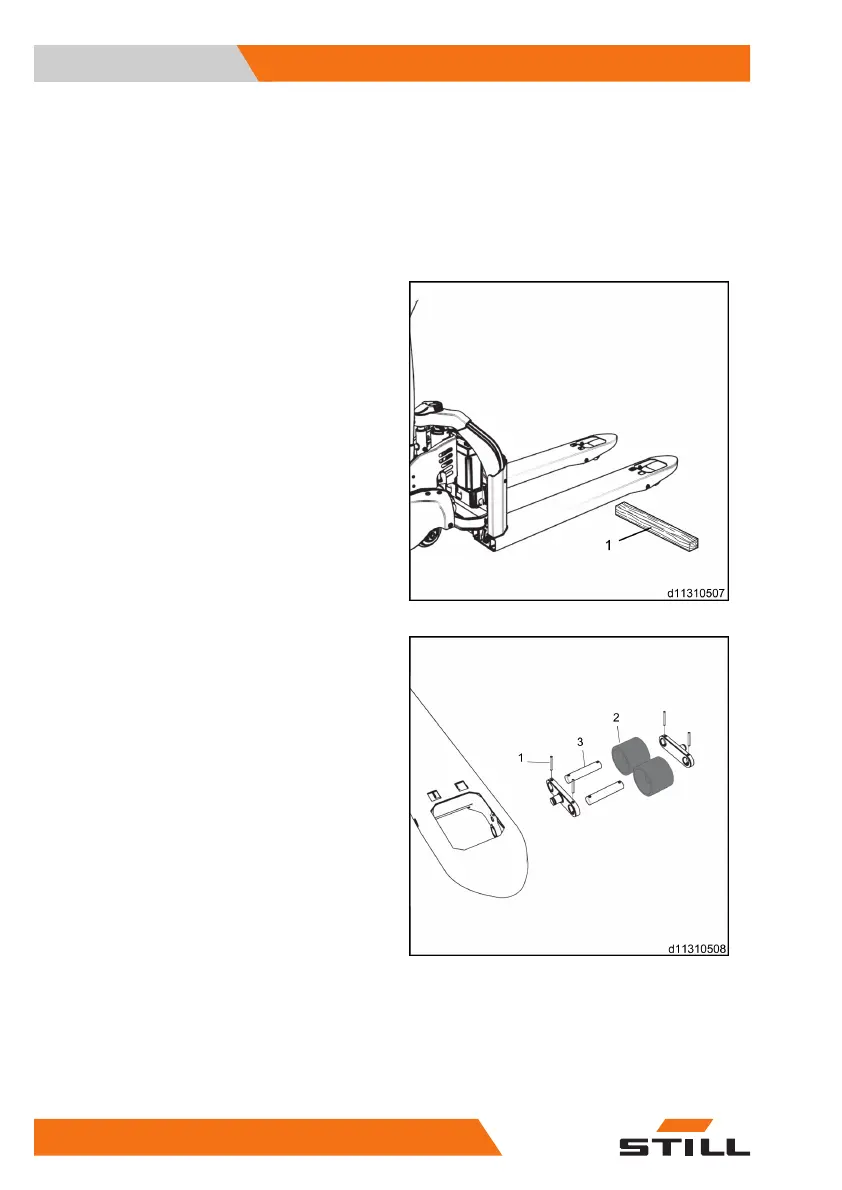

Replacing the load wheels
– Place a wooden block (1) under the load
wheels to raise them off the floor.
Double load wheels
– Remove the spiral slotted spring pin on the
wheel frame (1).
– Turn the wheel frame to the vertical direc-
tion.
– Tap out the wheel pin spindle from the side.
– Remove the load wheels (2) and bearing
assembly (3).
Maintenance
5
Essential maintenance
90 5001 801 1505 EN - 12/2019
